VELVET DRIVE 5000A DOWN ANGLE TRANSMISSION SERVICE MANUAL NUMBER 23
Page 8B-10 90-861326--1 MARCH 1999

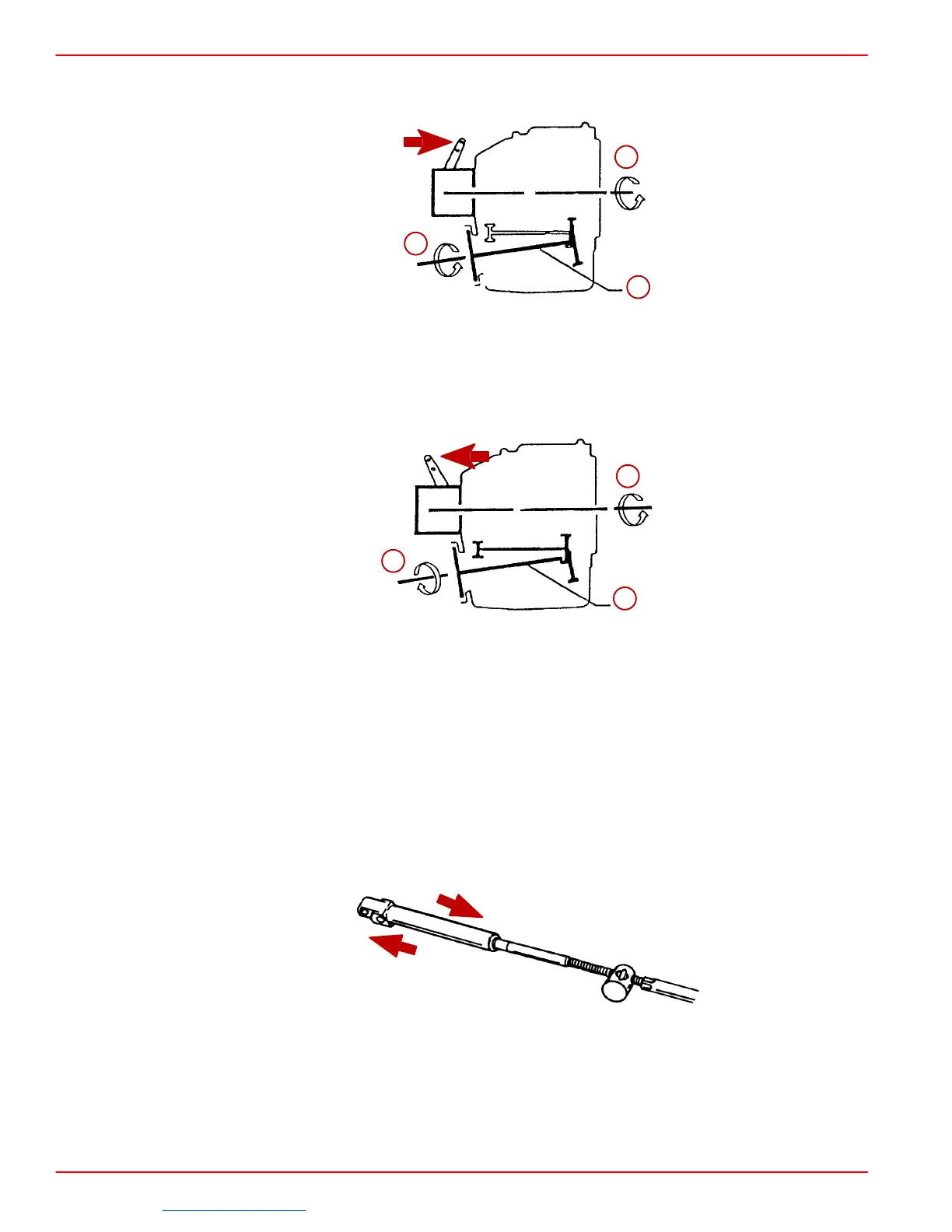

IMPORTANT: The Velvet Drive 5000A is a full reversing transmission. Direction of out-
put/propeller rotation is determined by hookup of shift cable at remote control.
73291
a
b
c
Position Is Forward Gear For LH Rotation Propeller
a-Input
b-Output
c-Output Shaft
73285
a
b
c
Position Is Forward Gear For LH Rotation Propeller
a-Input
b-Output
c-Output Shaft
For Left-Hand Propeller Shaft Rotation: Shift cable hookup at remote control must result
in shift cable end guide moving in direction “A” when remote control handle is placed in for-
ward position.
For Right-Hand Propeller Shaft Rotation: Shift cable hookup at remote control must
result in shift cable end guide moving in direction “B” when remote control handle is placed
in forward position.
23242
A
B
