MCM MODELS - BRAVO AND BLACKHAWK DRIVES WITH DRIVESHAFT EXTENSION SERVICE MANUAL NUMBER 23
Page 2B-12 90-861326--1 MARCH 1999

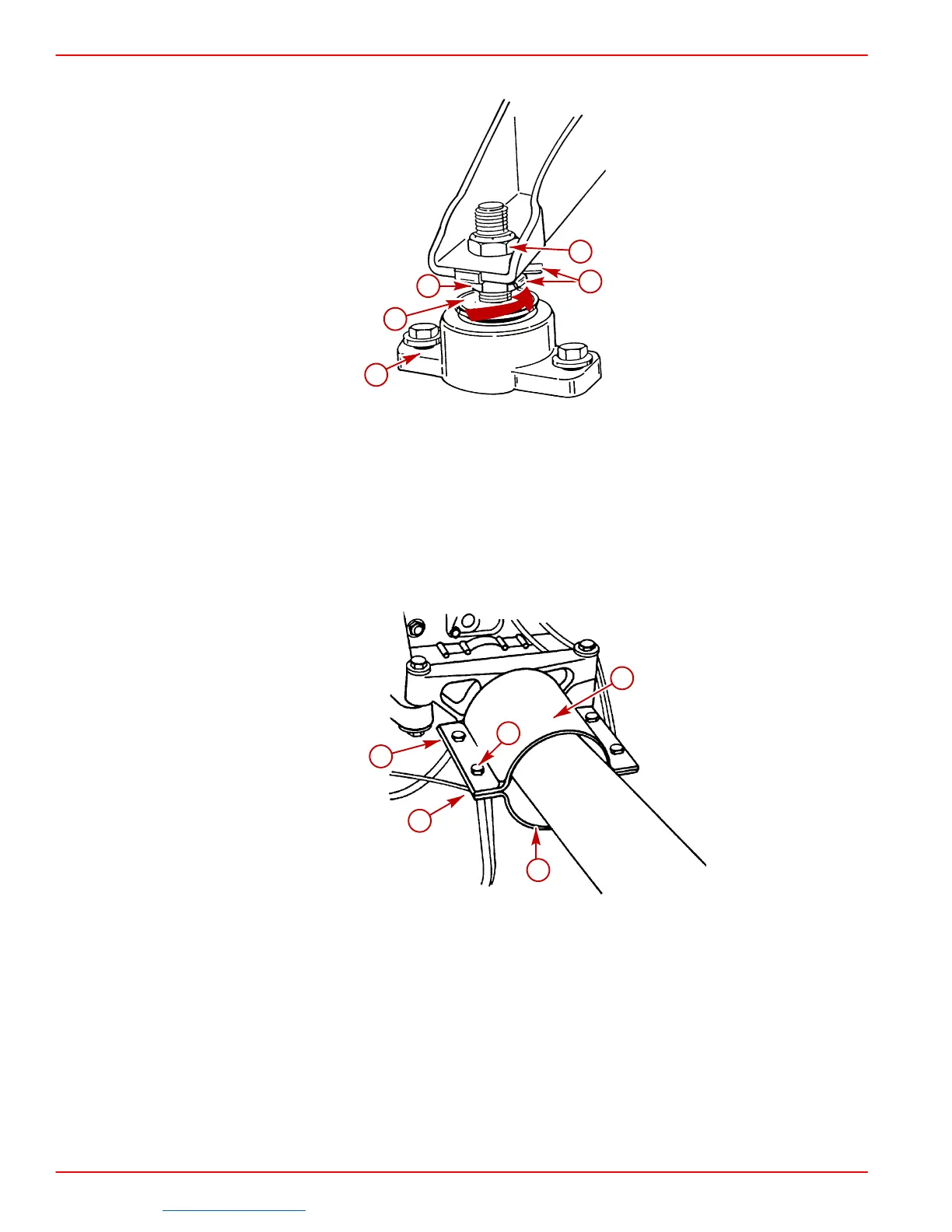

13. Tighten ALL engine mount nuts securely. Bend washer tab down on each adjustment
nut.
72922
a
e
b
d
c
a-Locknut
b-Adjustment Nut
c-Turn Nut In This Direction (Counterclockwise) To Raise Front Of Engine
d-Slotted Hole Toward Front Of Engine
e-Tab Washer
14. Apply Loctite 271 to threads of bottom drive shaft shield retaining screws and install bot-
tom shields on engine and transom end as shown. Torque screws to 30 lb-ft (41 Nm).
Then install both top shields as shown. Torque bolts and nuts to 30 lb-ft (41 Nm).
70245
a
b
c
d
e
Top Shield and Bottom Shield at Transom End (Engine End Similar)
a-Top Shield
b-Bottom Shield
c-Bolt 3/8-16 x 7/8 In. (22.2 mm)
d-Nut 3/8-16
e-Screws (Use Loctite 271)
