MCM MODELS - BRAVO AND BLACKHAWK DRIVES WITH DRIVESHAFT EXTENSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2B-13
Engine Connections
Water Hose Connections
IMPORTANT: When routing all wire harnesses and hoses, be sure they are routed and
secured to avoid coming in contact with hot spots on engine and avoid contact with
moving parts.

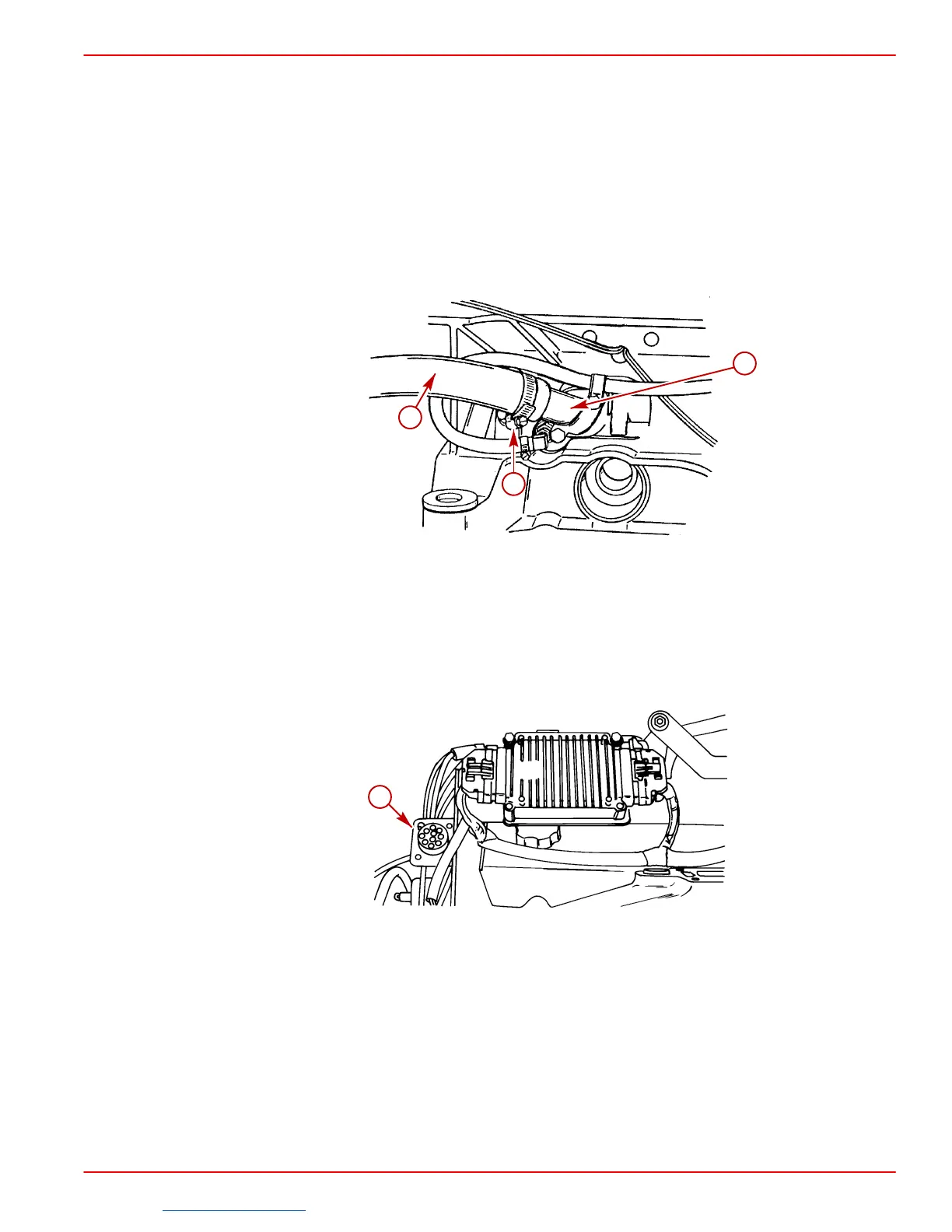

1. Connect seawater hose to water tube at gimbal housing with hose clamp. Tighten clamp
securely.
NOTE: In the following view the engine is not in position, for visual clarity in this step.
72590
a
b
c
a-Water Inlet Tube
b-Hose Clamp (Tighten Securely)
c-Seawater Inlet Hose to Seawater Pump
Electrical Connections
1. Connect instrument harness to engine harness with hose clamp. Tighten clamp
securely.
75441
a
7.4L MPI Shown - Other Similar
a-Instrumentation Wiring Harness Plug
