MIE MODELS - VELVET DRIVE TRANSMISSION SERVICE MANUAL NUMBER 23
Page 2C-20 90-861326--1 MARCH 1999

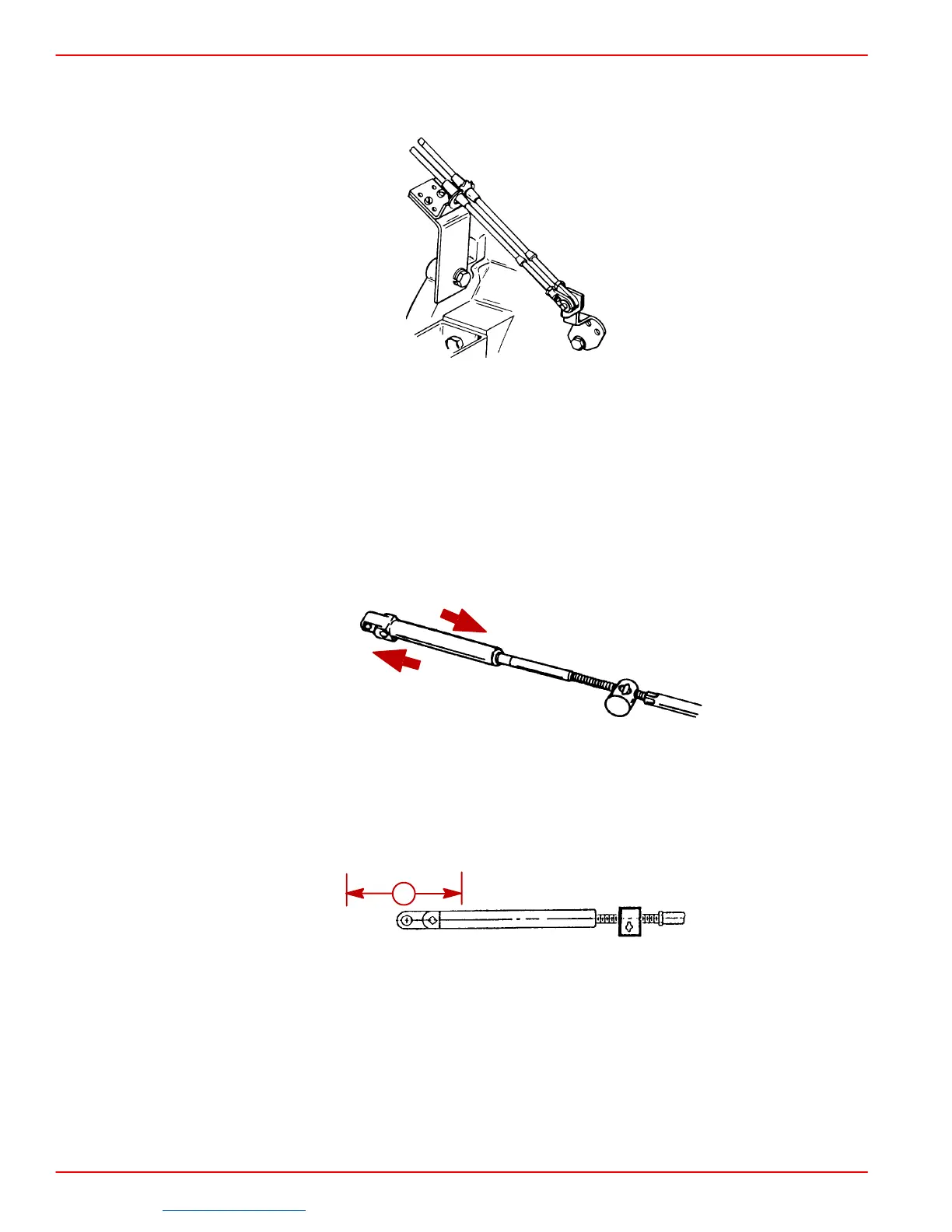

NOTE: For models equipped with a dual station shift bracket such as the one shown, refer
to shift cable manufacturer’s instructions for adjusting the cable. Shift lever must be
positioned as stated in the preceding steps.
22457
5000 SERIES (8° DOWN ANGLE AND V-DRIVE)
For Left-Hand Propeller Shaft Rotation: Shift cable hookup at remote control must result
in shift cable end guide moving in direction “A” when remote control handle is placed in
forward position.
For Right-Hand Propeller Shaft Rotation: Shift cable hookup at remote control must
result in shift cable end guide moving in direction “B” when remote control handle is placed
in forward position.
23242
A
B
Remote control must provide a total shift cable travel (at transmission end) of at least 2-3/4
in. (70 mm). This is necessary to position transmission shift lever fully in the forward and
reverse gear positions. Insufficient shift cable travel will cause transmission to slip and even-
tually fail.
72602
a
a-2-3/4 In. (70 mm) Minimum
