MIE MODELS - VELVET DRIVE TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2C-21

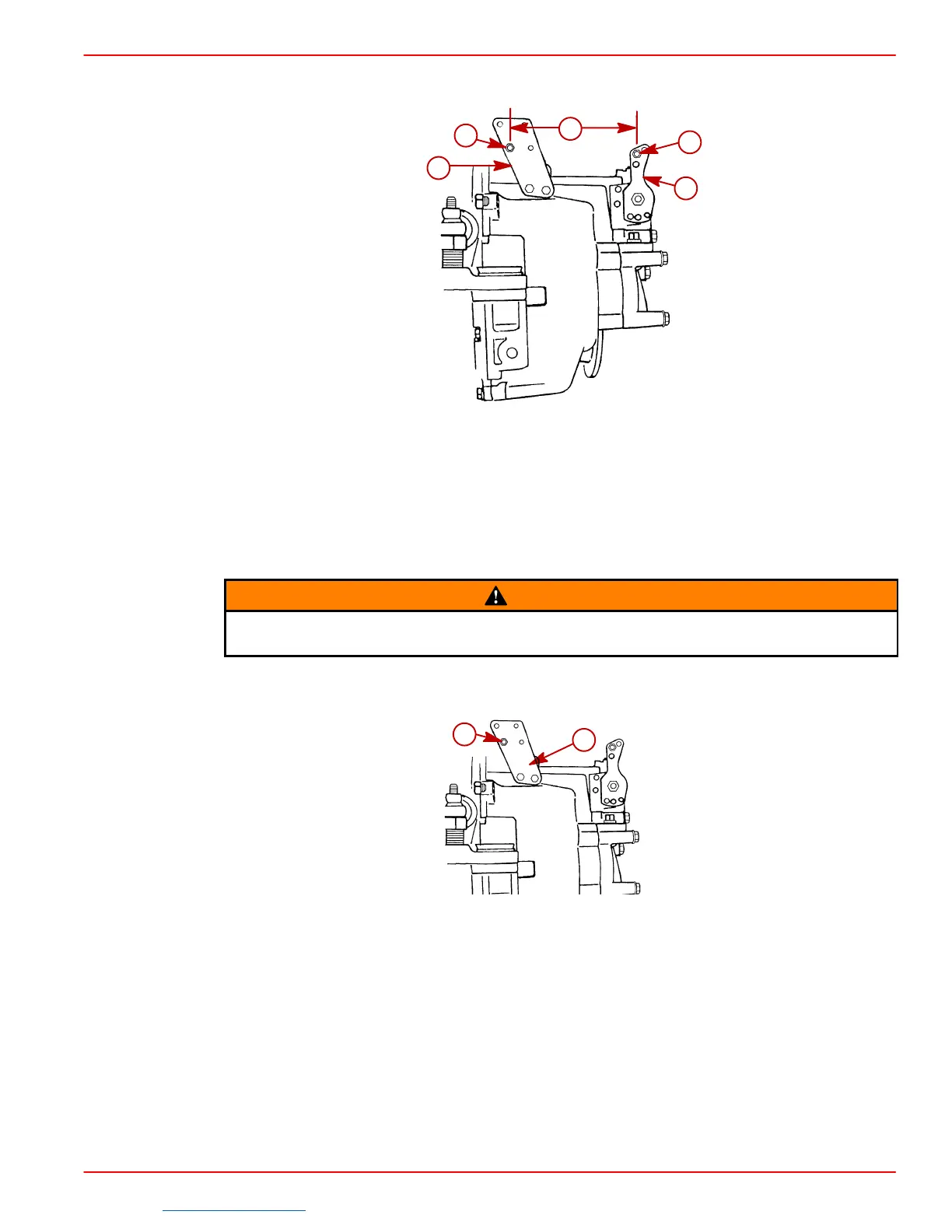

IMPORTANT: The distance between studs (Dimension “C”) shown in the following
illustration is set at 7-1/8 in. (318 mm).
73284
a
b
b
c
d
8° Down Angle Shown (V-Drive Similar)
a-Shift Lever
b-Anchor Stud
c-Dimension Between Studs - 7-1/8 In. (318 mm)
d-Shift Cable Bracket
1. Connect and adjust Quicksilver shift cable(s) as outlined following:
WARNING
Avoid serious injury or property damage caused by improper shifting. Anchor stud
for shift cable must be installed in the correct hole.
a. Be certain anchor stud is installed in the front hole as shown in the illustration
following.
73284
a
b
a-Shift Cable Bracket
b-Anchor Stud In Front Hole
b. Place remote control shift lever and transmission shift lever in neutral position.
c. Remove nuts and washers from shift cable attaching studs.
