MIE MODELS - VELVET DRIVE TRANSMISSION SERVICE MANUAL NUMBER 23
Page 2C-22 90-861326--1 MARCH 1999

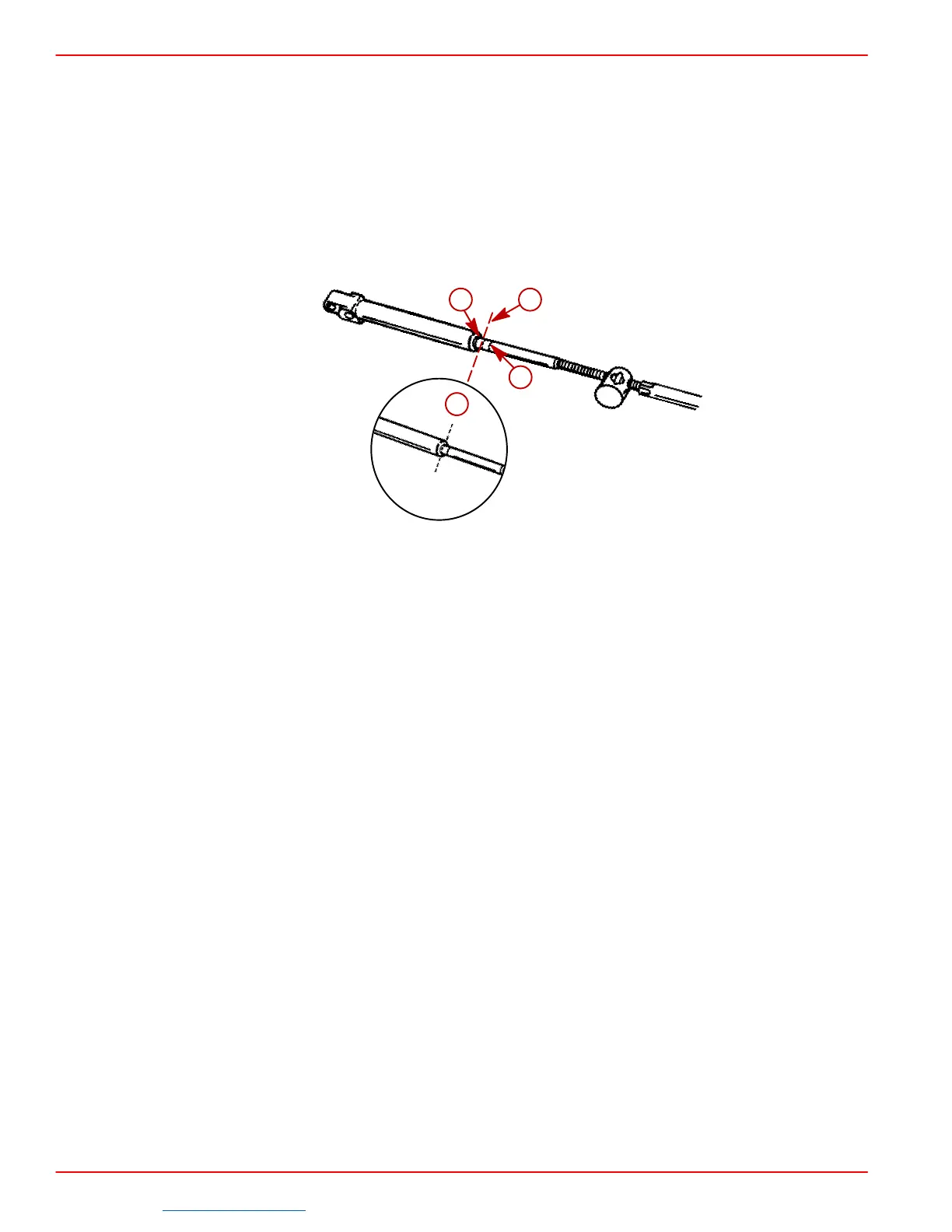

d. Locate center of remote control and control shift cable play (backlash) as follows:
(1.)Check that remote control is in neutral position.
(2.)Push in on control cable end with enough pressure to remove play; mark position
“a” on tube.
(3.)Pull out on control cable end with enough effort to remove play; mark position
“b” on tube.
(4.)Measure distance between marks “a” and “b;” mark position “c,” half-way
between marks “a” and “b.”
22024
a
b
c
c
e. Center cable end play, then adjust cable barrel to align holes in barrel and in cable
end guide, with attaching points on transmission.
f. Temporarily install shift cable. Do not secure at this time.
g. Place remote control shift lever in gear and check position of transmission shift lever.
Shift lever must be positioned in the desired detent hole.
IMPORTANT: Transmission is “fully” in gear when shift lever comes to a stop in either
direction.
IMPORTANT: Velvet Drive Transmission Warranty is jeopardized if the shift lever
poppet ball or spring is permanently removed, if the shift lever is repositioned or
changed in any manner or if remote control and shift cable do not position shift lever
exactly as shown.
