Mercusys ac12 User Manual

AC12
AC1200 Dual Band Wireless Router
- 17 -

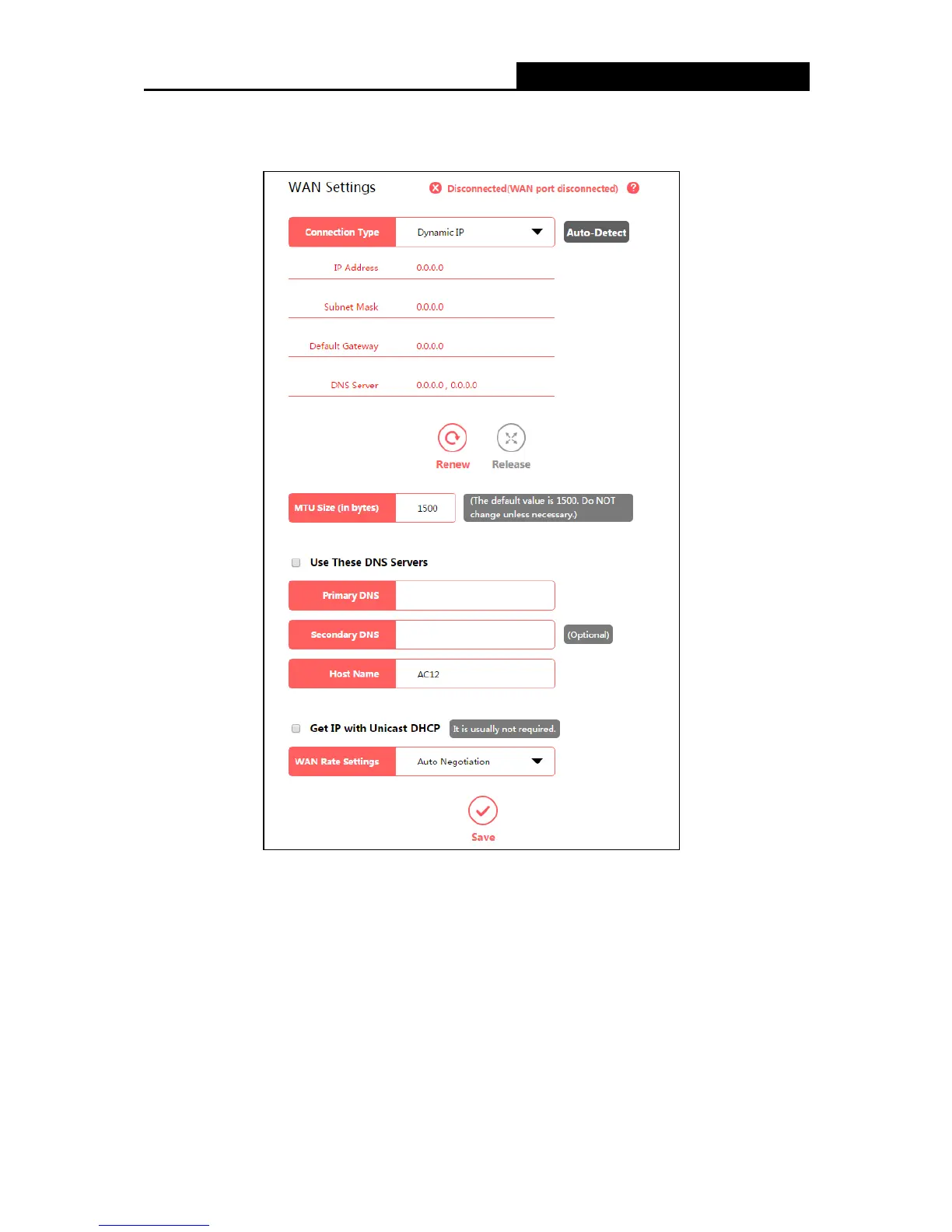

2. If your ISP provides the DHCP service, select Dynamic IP, and the router will automatically
get IP parameters from your ISP.
 Renew - Click to renew the IP parameters from your ISP.
 Release - Click to release the IP parameters.
 M TU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks
is 1500 bytes. Do not change the default MT U Size unless required by your ISP.
 Use These DNS Servers - If your ISP gives you one or two DNS addresses, select this
option and enter the primary and secondary addresses into the corresponding fields.
Otherwise, the DNS servers will be assigned dynamically from your ISP.
 Host Name - This option specifies the host name of the router.

Mercusys ac12 Specifications

General

Product type	Tabletop router
Product color	Black
DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Mobile network generation	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	CE, ROHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	640 g

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
