Mercusys ac12 User Manual

AC12
AC1200 Dual Band Wireless Router
- 16 -

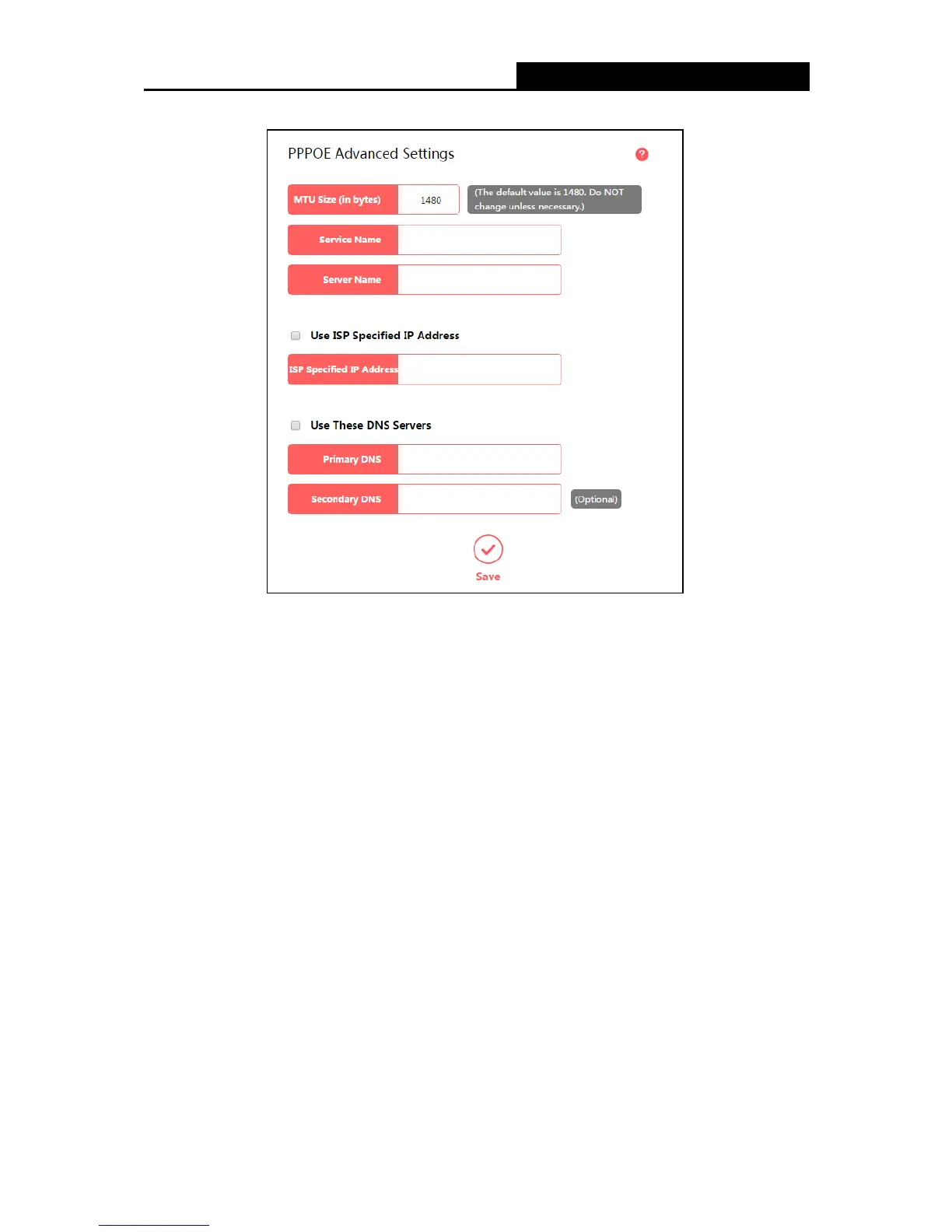

 PPPoE Advance d Settings
 M TU Size - The default MTU size is 1480 bytes. It is NOT recommended that you change the
default M TU Size unless required by your ISP.
 Service Name/Server N a me - The service name and server name should not be configured
unless it is necessary for your ISP.
In most cases, leaving these fields blank will work.
 ISP Specifie d IP Address - If your ISP does not automatically assign IP addresses to the
router during login, please select Use ISP Specified IP Address and enter the IP address
provided by your ISP in dotted-decimal notation.
 Primar y DNS/Se condary DNS - If your ISP does not automatically assign DNS addresses to
the router during login, please select Use There DNS Servers and enter the IP address in
dotted-decimal notation of your ISP’s primary DNS server. If a secondary DNS server
address is available, enter it as well.
Click Save to make the settings effective.

Mercusys ac12 Specifications

General

Product type	Tabletop router
Product color	Black
DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Mobile network generation	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	CE, ROHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	640 g

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
