Mercusys ac12 User Manual

AC12
AC1200 Dual Band Wireless Router
- 35 -
 Protocol - Here are three options, All, TCP and UDP. Select one of them from the
drop-down list for the target.
If the We bsite Domain is selected, you will see the following items:
 Domain Name - Here you can enter 4 domain names, either the full name or the
keywords (for example, Mercusys). Any domain name with keywords in it
(www.mercusys.com) will be blocked or allowed.

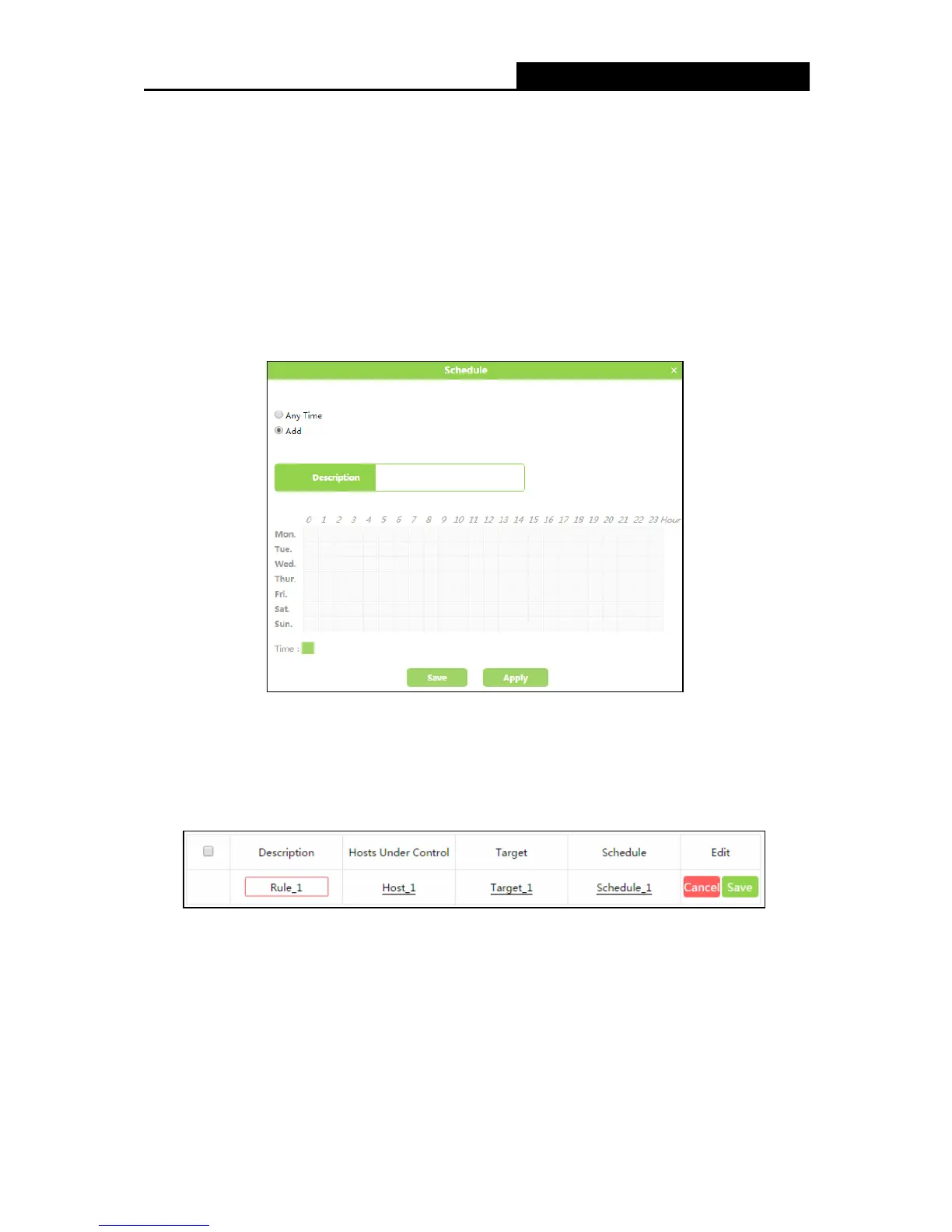

6. Click Configure in the Schedule column, you can select An y Time , or select Add to add a
new schedule. Then click Apply.
 De scription - In this field, create a description for the schedule. Note that this
description should be unique.
 Time - Click and drag across the cells to set the effective time periods.
7. Click Save to complete the settings.

Mercusys ac12 Specifications

General

Product type	Tabletop router
Product color	Black
DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Mobile network generation	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	CE, ROHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	640 g

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
