Mercusys ac12 User Manual

AC12
AC1200 Dual Band Wireless Router
- 34 -

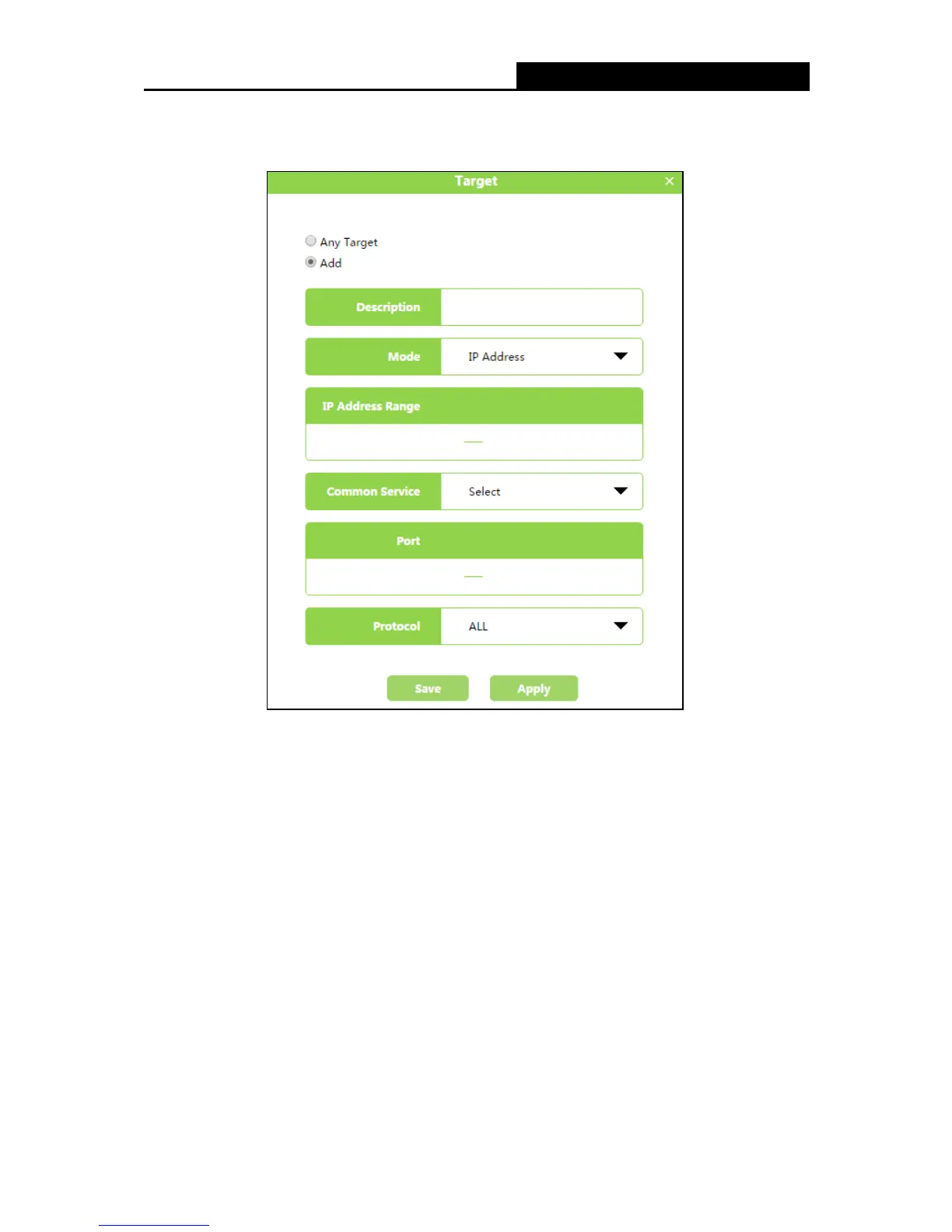

5. Click Configure in the Target column, you can select Any Target, or select Add to add a
new target. Then click Apply.
 De scription - In this field, create a description for the target. Note that this description
should be unique.
 Mode - Here are two options, IP Address and Website Domain. You can choose either of
them from the drop-down list.
If the IP Address is selected, you will see the following items:
 IP Address Range - Enter the IP address (or address range) of the target (targets) in
dotted-decimal format.
 Common Service - Here lists some common service ports. Select one from the
drop-down list, and the corresponding port number will be filled in the Port field
automatically. For example, if you select HTTP, 80 will be filled in the Port field
automatically.
 Port - Specify the port or port range for the target. For some common service ports, you
can make use of the Common Service item above.

Mercusys ac12 Specifications

General

Product type	Tabletop router
Product color	Black
DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Mobile network generation	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	CE, ROHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	640 g

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
