User Manual : Plug-Ins
User Manual
221
This button shows or hides the rotary controls.
Peaking / Shelving When lit, the lowest (red) band is switched to shelving response. In this
mode the Q control for the band is unavailable.
Peaking Shelving When lit, is switched to shelving response. In this mode the Q control is for
the band unavailable.

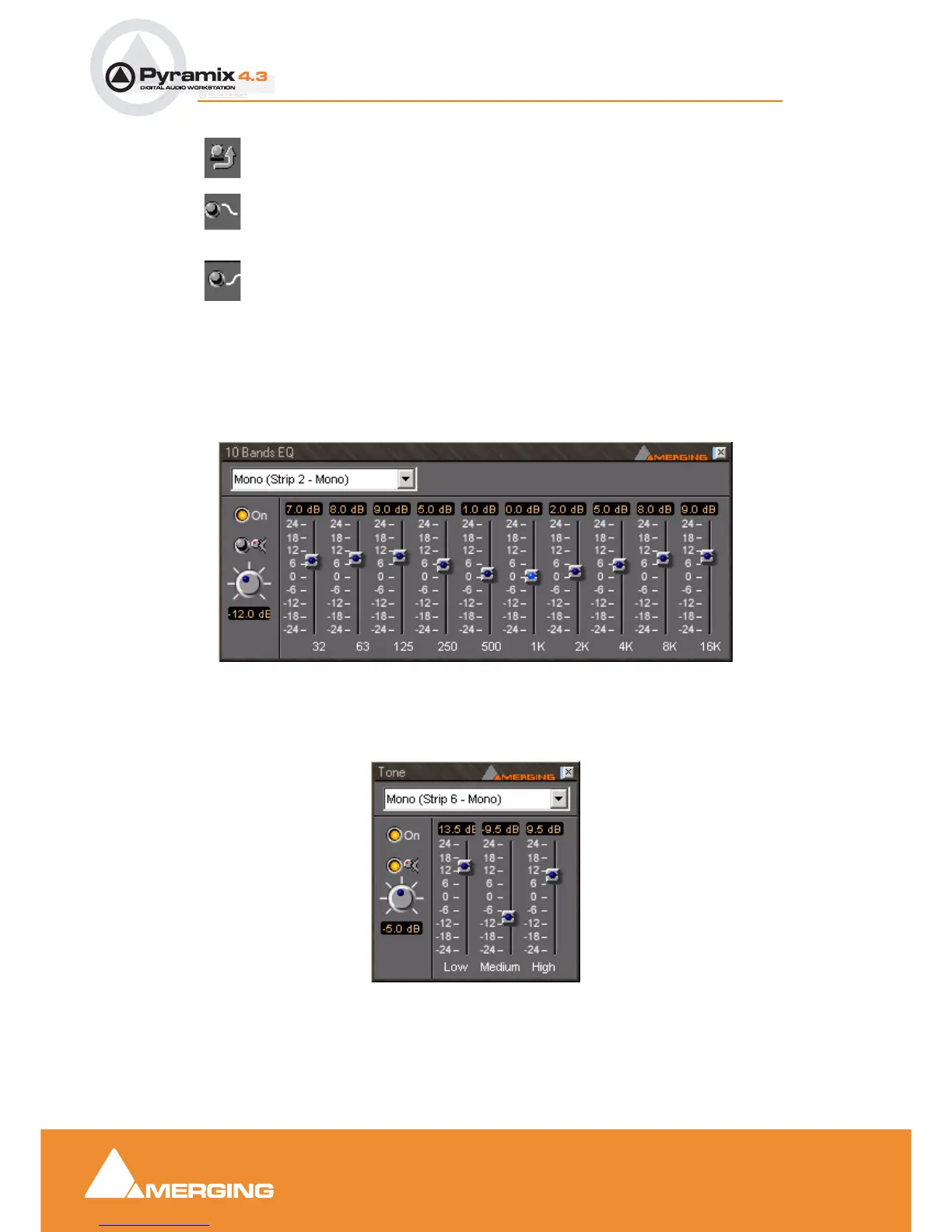

10 Bands EQ
This ten band graphic equalizer offers +/-24dB of boost or cut in any or all of ten bands, one band per
octave, ranging from 32Hz to 16kHz. As with all rotary controls double-clicking on a slider knob restores
it to zero.
Three Band Tone Control
A simple three band equalizer which offers a boost or cut of +/- 24dB in any or all of three bands.
The Low LPF is a shelving EQ with a slope of 6dB/Octave and a turnover frequency of 100 Hz, the
Medium BPF has a Q (bandwidth) of 0.8 with a center frequency of 2 kHz, and the High HPF is a shelv-
ing EQ with a slope of 6dB/Octave and a turnover frequency of 8 kHz.
10 Bands EQ floating Window
Tone Control floating Window
