9
BA 2076/02/01
3 Mounting
33
33
3
MountingMounting
MountingMounting
Mounting
3.13.1
3.13.1
3.1
EPT202 for Rail MountingEPT202 for Rail Mounting
EPT202 for Rail MountingEPT202 for Rail Mounting
EPT202 for Rail Mounting

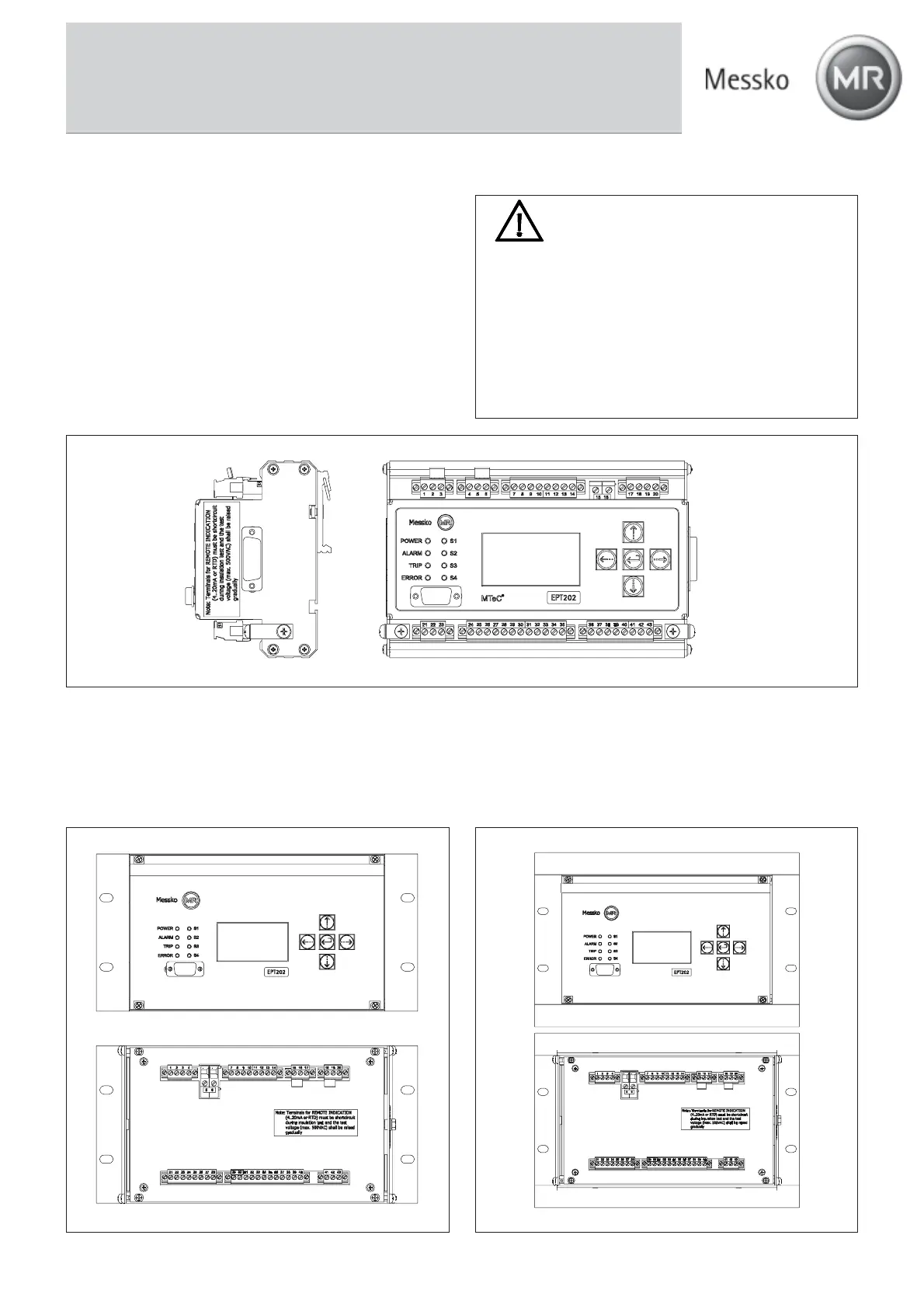

The EPT202 (see Fig. 1) is designed for mounting on a rail in
accordance with EN 60715 TH 35-7.5 or TH 35-15. To install,
the device must be placed on the rail with the mounting
clamps and pressed down until the device snaps in onto the
rail. For the dimensions, see the appendix (chap. 9.1).
3.23.2
3.23.2
3.2
EPT202 as 19" subrack 42TEEPT202 as 19" subrack 42TE
EPT202 as 19" subrack 42TEEPT202 as 19" subrack 42TE
EPT202 as 19" subrack 42TE
The standardized rack of the EPT202 is designed for
installation in a 19" cabinet system. Slide the subrack into the
cabinet system and secure it using the bore holes on the front
(see appendix, chap. 9.2).
Fig. 1
3.33.3
3.33.3
3.3
EPT202 for Control Panel MountingEPT202 for Control Panel Mounting
EPT202 for Control Panel MountingEPT202 for Control Panel Mounting
EPT202 for Control Panel Mounting
A panel cutout must be provided in the switching cabinet for
the installation of the EPT202. For dimensions, see appendix,
chap. 9.3. Slide the device into the cutout and secure with
the help of the bored holes on the front.
Fig. 3Fig. 2
CAUTIONCAUTION
CAUTIONCAUTION
CAUTION
The device may only be mounted, electrically connected
and commissioned by qualified, trained personnel as
specified by these operating instructions.
The user must ensure that the device is used for its
intended purpose.
Arbitrary and incorrect work which is performed without
previously consulting Messko is forbidden for safety
reasons!
