MESSKO MTeC EPT202 - 19-Inch Rack Dimension Drawing

39
BA 2076/02/01
9 Appendix
Fig. 7
9.29.2
9.29.2
9.2

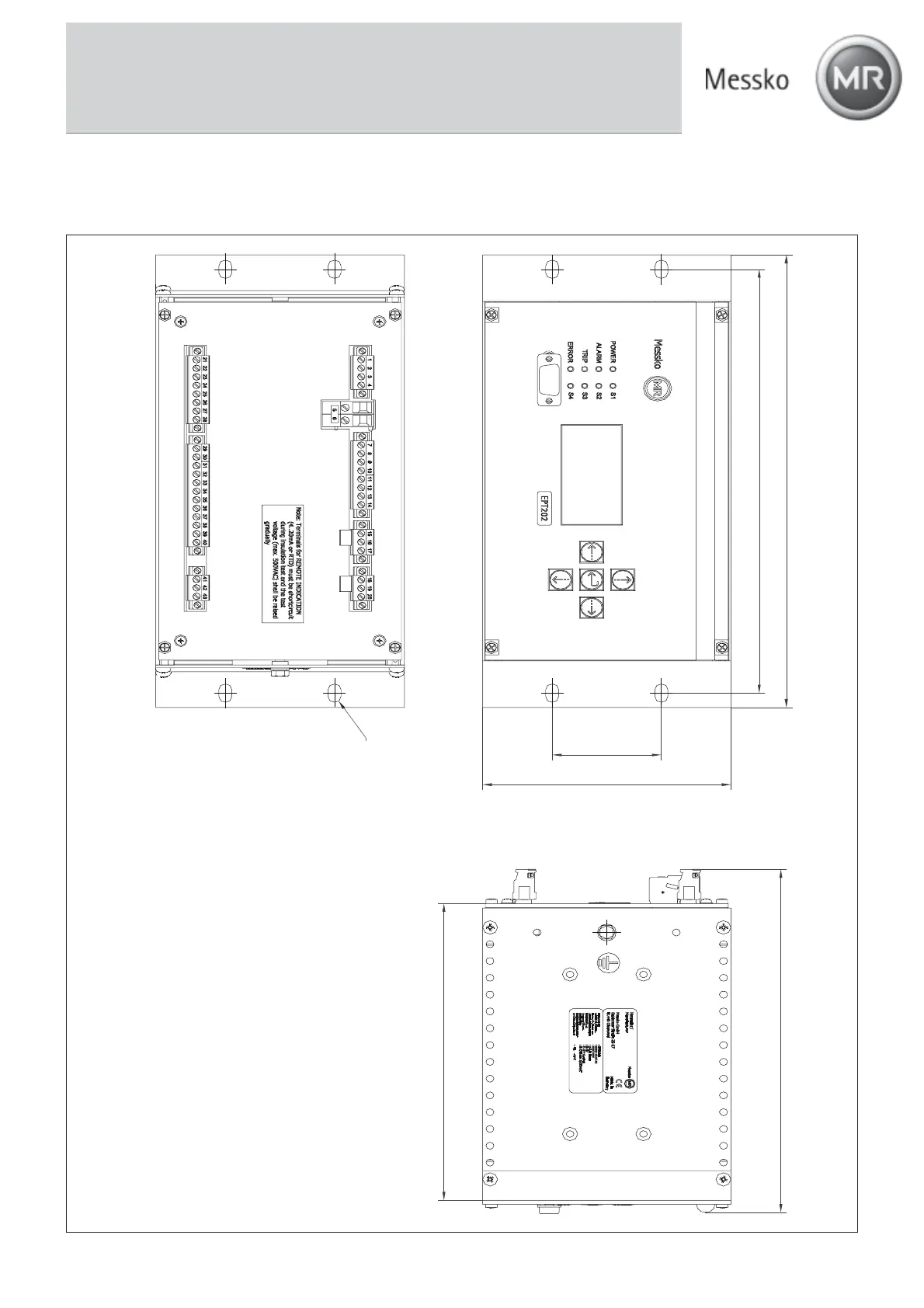

Dimension Drawing of EPT202 for 19" RackDimension Drawing of EPT202 for 19" Rack
Dimension Drawing of EPT202 for 19" RackDimension Drawing of EPT202 for 19" Rack
Dimension Drawing of EPT202 for 19" Rack
269,4 [10,606]
252,4 [9,937]
58 [2,283]
132 [5,197]
Ø7x10 [.28x.39]
204,4 [8,046]
176,7 [6,959]
