Assembly
PRM 10 E | Version 1.05 | EN 15
The PRM 10 E has a swiveling machine head and can thus be used horizon-
tally and vertically.
To tilt the machine head for horizontal operation, proceed as follows.:
Step 1: Loosen the screws 1 (Fig. 6).
Step 2: Tilt the machine head 90 °.
Step 3: Screw in the screws 1 at position 2 (Fig.6) to screw the machine head
to the machine housing.

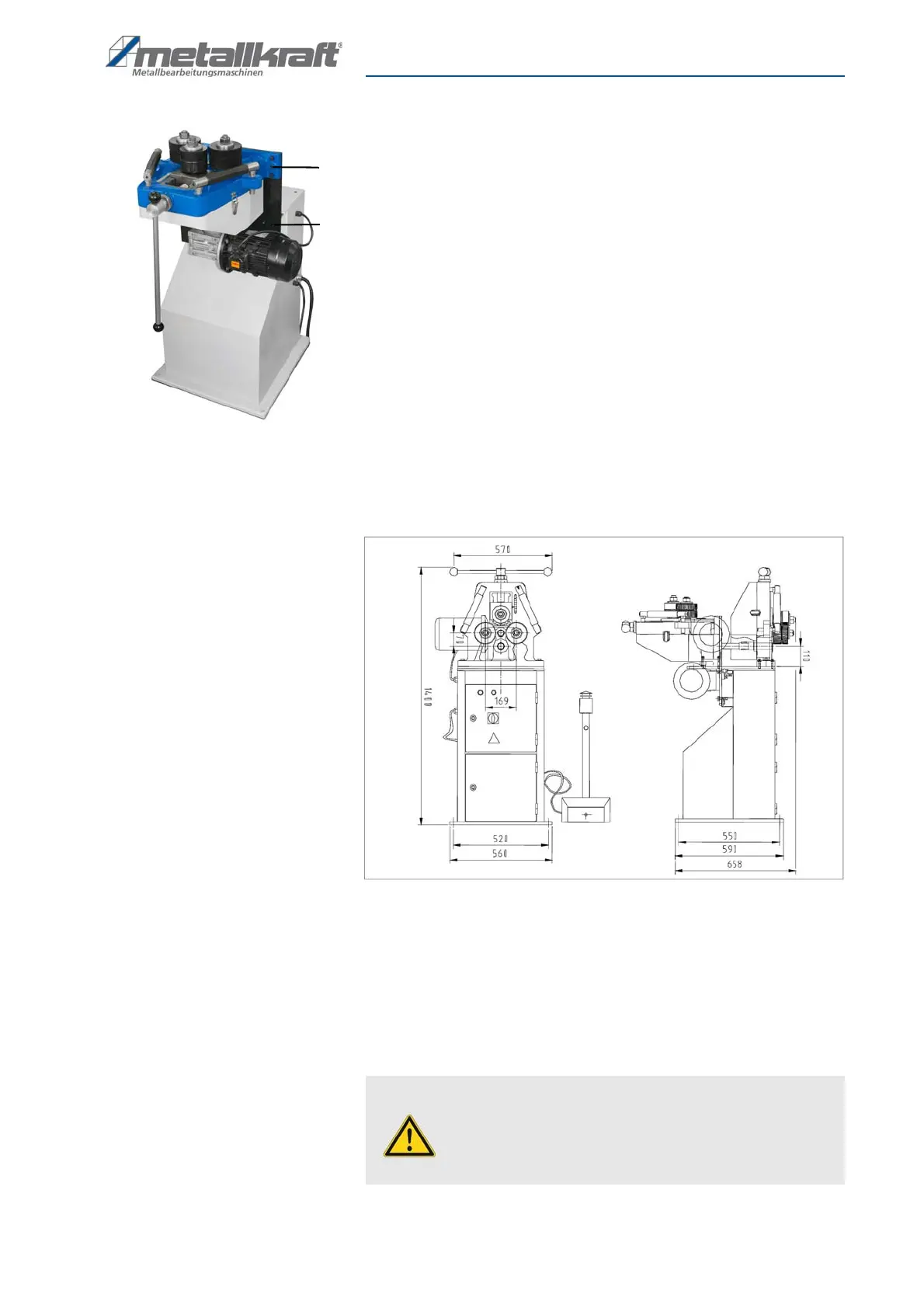

Fig. 6: Ring bending machine for horizontal operation
The following dimensions should be taken into account at the place of installa-
tion or at the workplace (Fig. 7)
Fig. 7: Installation dimensions of the motorized ring bending machine PRM 10 E
Space requirement of the motorized ring bending machine
- Space in front of and behind the machine: 1000 mm
- Distance from the side of the machine to the wall: at least 1000 mm - de-
pends on the sizes of the materials to be bent
This area may only be entered by the operator of the machine!
Hazardous areas on the machine
WARNING!
Never bring any part of the body close to these danger
zones when the machine is in operation!
