Bend long profiles If long profiles have to be bent, please note the following.

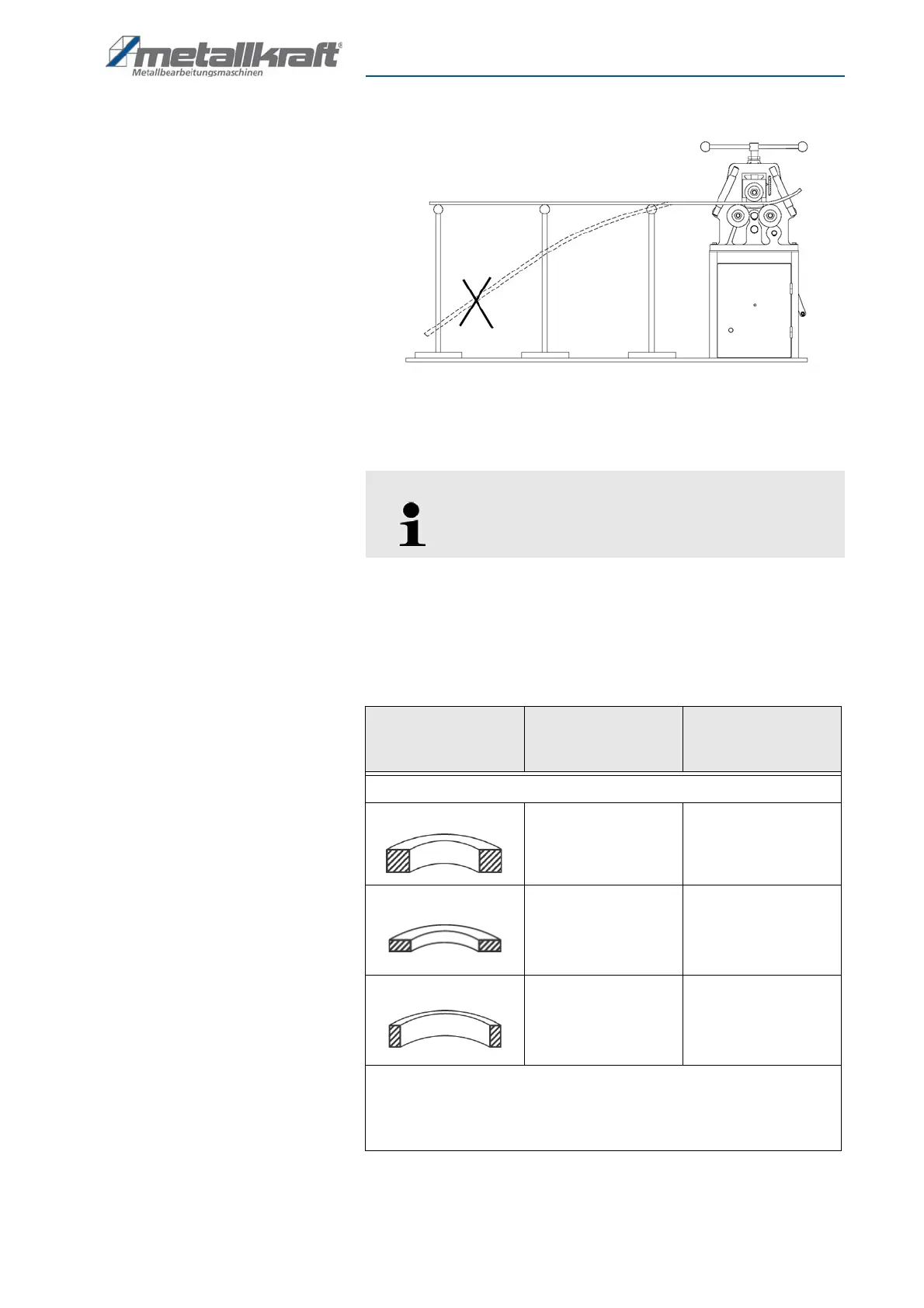

Fig. 14: Place long profiles on additional support surfaces
Long profiles should be placed on additional support surfaces with rollers to re-
lieve these as well as the motorized ring bending machine (Fig. 14).
Even with a vertically positioned ring bending machine to use bending long
profiles additional bearing surfaces with rollers to use to avoid overuse of the
material and the motorized ring bending machine.
8.4 Bending rolls
Bending options with bending rol-
lers
Tips and recommendations
At a vertically positioned ring bending machine to be bent
profiles are easier to edit than a horizontally positioned ring
bending machine.
bending services
Profile type
maximum size [mm] Mininmaler ben-
ding diameter
[mm]
Bending possibilities with standard bending rolls:
10 x 10
20 x 20
160
500
20 x 5
30 x 10
190
500
20 x 5
50 x 10
160
400
All bending power specifications refer to 24 kg / m2 sheet bending limit.
1) The smallest possible bending radius depends on how strong the mate-
rial deformation may be.
To Next Page
