Assembly

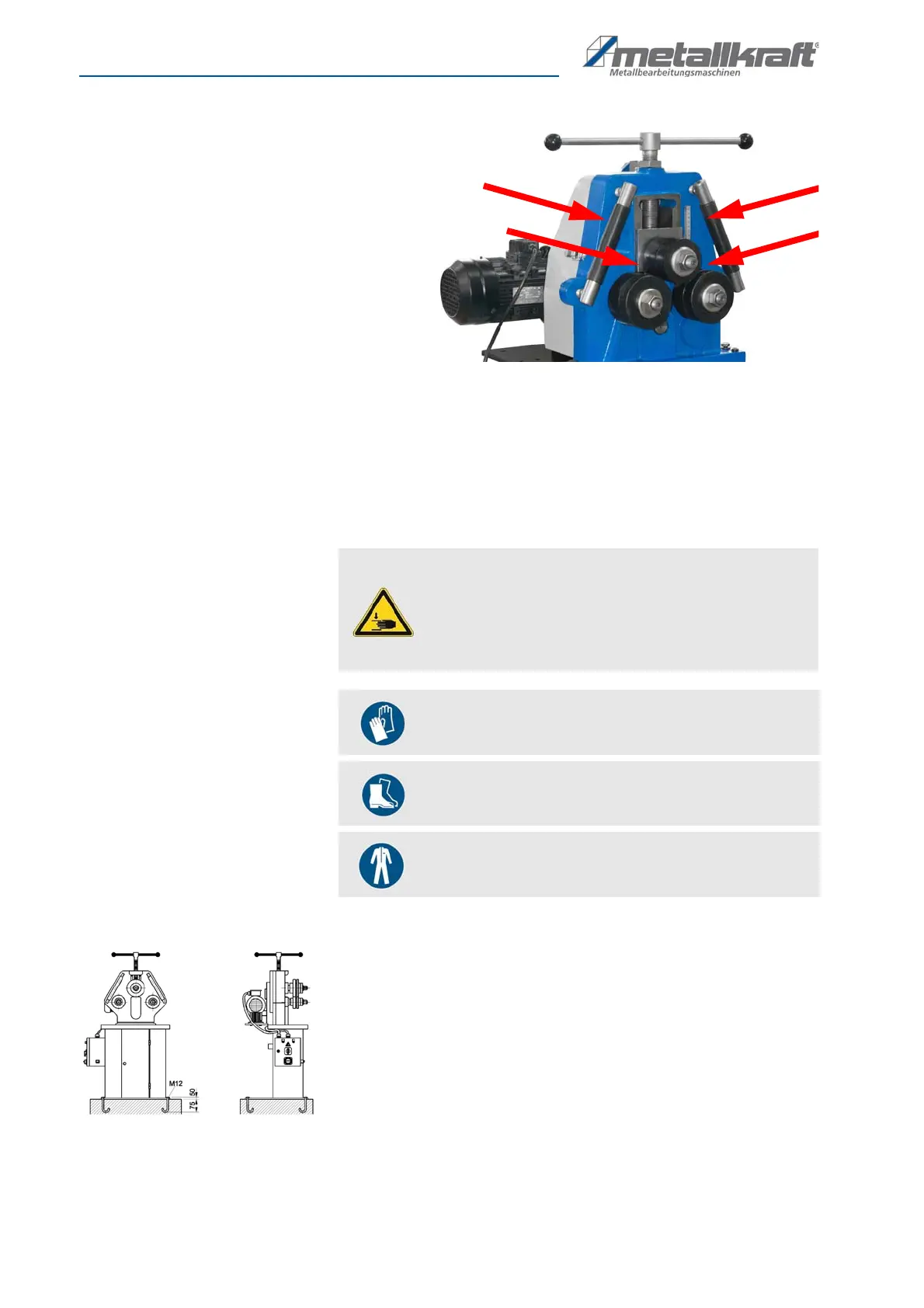

Fig. 8: Hazardous areas on the motorized ring bending machine
Hazardous areas:
- Working area of the machine at the clamping points of the rollers and on
the lateral guide rollers
- Electric box on lower machine housing, power supply
Setting up the ring bending machi-
ne
Step 1: Check the ground with a spirit level for horizontal alignment, if neces-
sary, compensate for slight unevenness.
Step 2: Park the motorized ring bending machine on a level, firm and vibration-
free ground.
Step 3: Secure the motorized ring bending machine with ground anchors to the
ground.
Step 4: Connect the transportable controller to the machine.
Fig. 9: Anchoring the ring bending machine
WARNING!
Crushing!
The machine may tilt during deployment and cause serious
injury.
- The machine must be set up by at least 2 people together.
Wear safety gloves!
Wear safety shoes!
Wear protective clothing!
