METER SC-1 User Manual

15
SC-1
To erase all stored data using the Leaf Porometer Utility (Section3.4) :
1. Connect the serial end of the USB-to-serial cable to the SC-1 controller.
2. Connect the USB end of the cable to an available USB port on the computer.
3. Open Leaf Porometer Utility (Figure23).

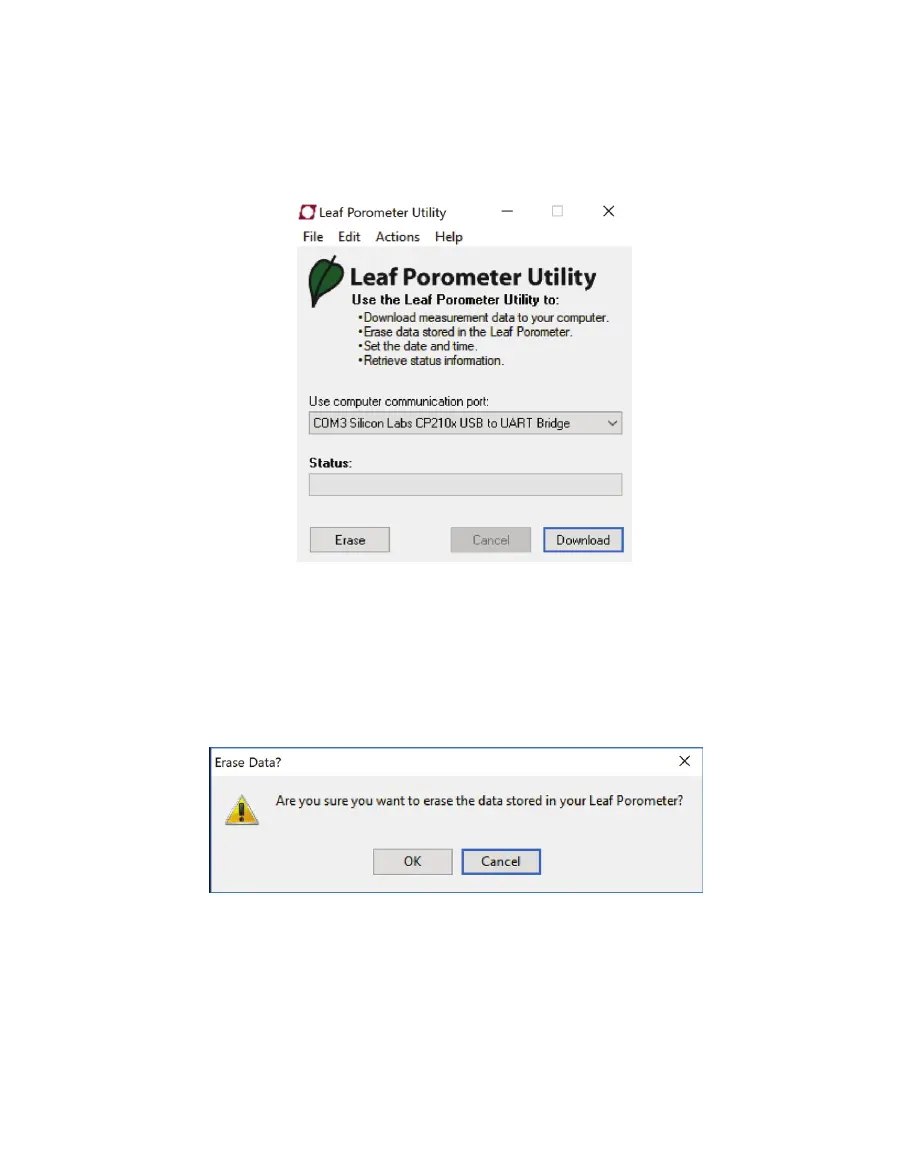

Figure23 Leaf Porometer Utility main window
4. Choose the appropriate communication port from the Use computer communication
port dropdown on the main screen.
5. Click Erase (Figure23).
6. Click OK (Figure24).
WARNING: This will delete all data on the SC-1 permanently.
Figure24 Erase data confirmation dialog
7. A progress bar shows the status of the erase process.

METER SC-1 Specifications

General

Brand	METER
Model	SC-1
Category	Measuring Instruments
Language	English
