95-2009 DASH DISASSEMBLY
HUMMER • H2 2003-2007
1

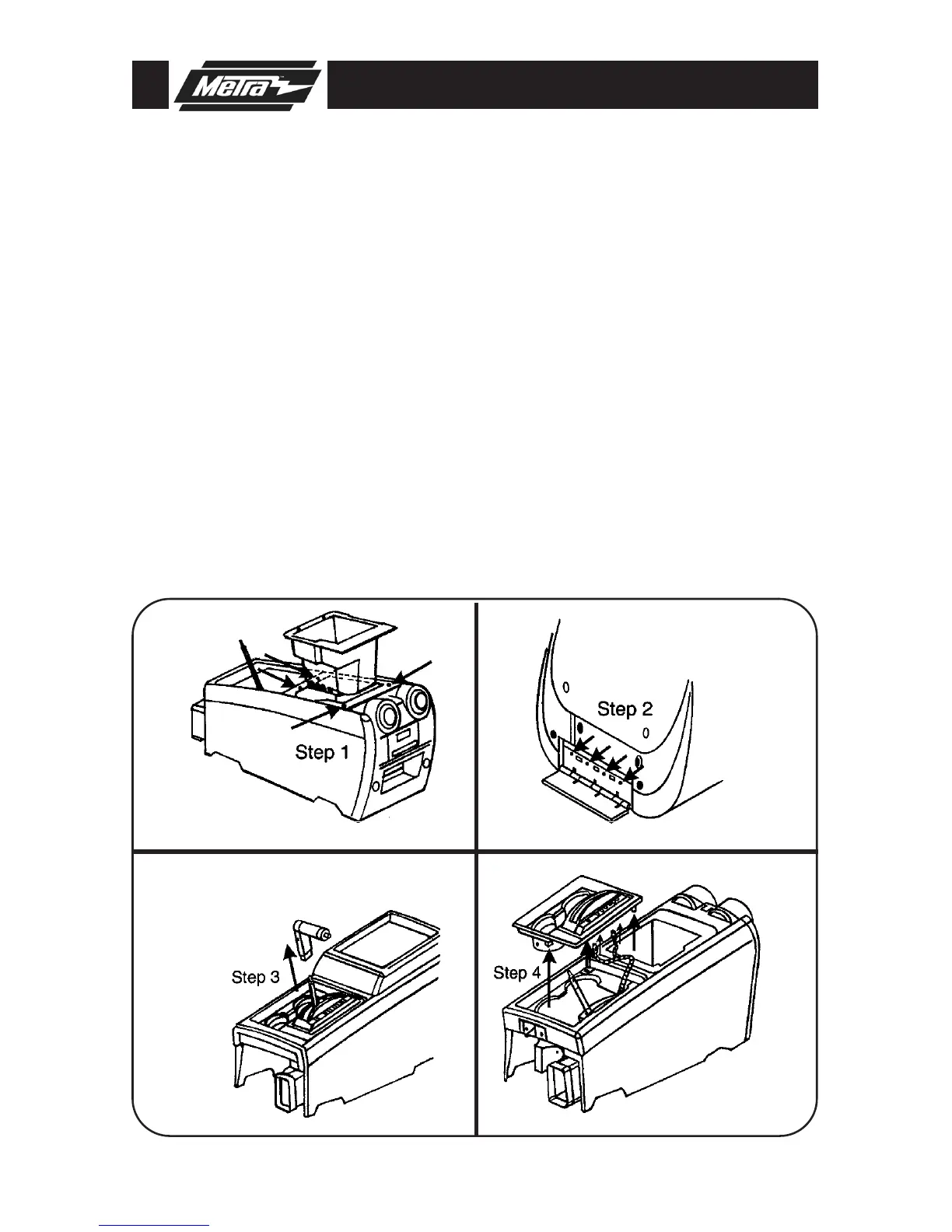

Remove (4) phillips screws from hinge on console door inside console and remove
door.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Open center console and remove (4) 9/32” screws from console box and
remove box.
2
Loosen (1) T-15 torx on forward facing side of shift lever and pull up to
remove.
4
Unclip cup holder/shifter trim assembly and remove.
5
Remove (6) Phillips screws from top of center console.
6
Remove (2) Phillips screws from inside pocket on back of center console, then
unclip and remove.
7
Continued on page 30.
