31

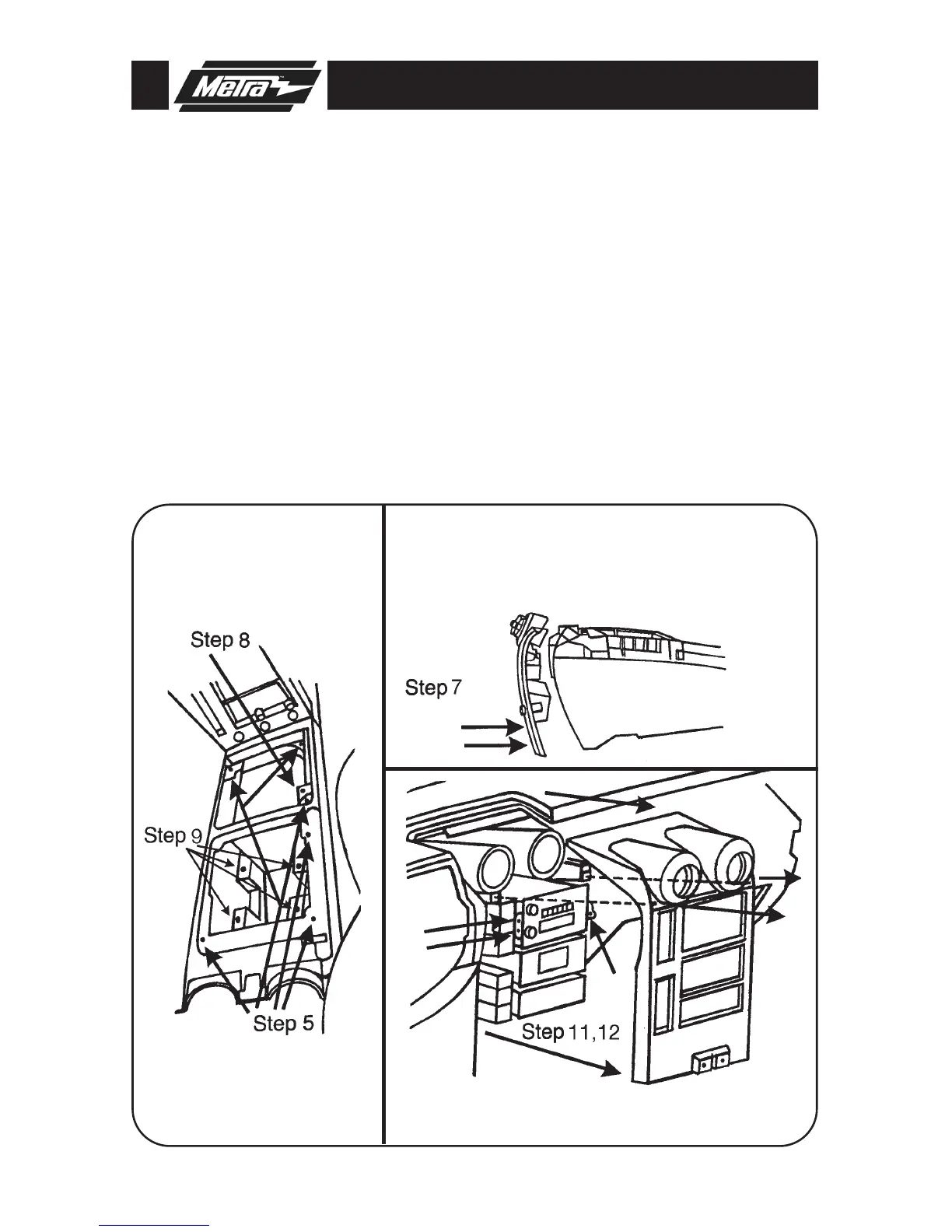

95-2009 DASH DISASSEMBLY
Continue to kit assembly.
HUMMER • H2 2003-2007
8
Slide control assembly rearwards.
Remove (1) 10mm bolt to right of shift lever.
10-
Remove (2) Phillips screws from under console box on drivers side and (2)
Phillips screws from under console trimtop on passenger side.
9
Remove (2) T-30 torx bolts from top of rado/climate control trim and
unclip and remove.
11
Remove (3) 9/32” screws that hold the radio in.
12
Continued from page 30.
