4.1.7 Function and parameter line
1
2
3

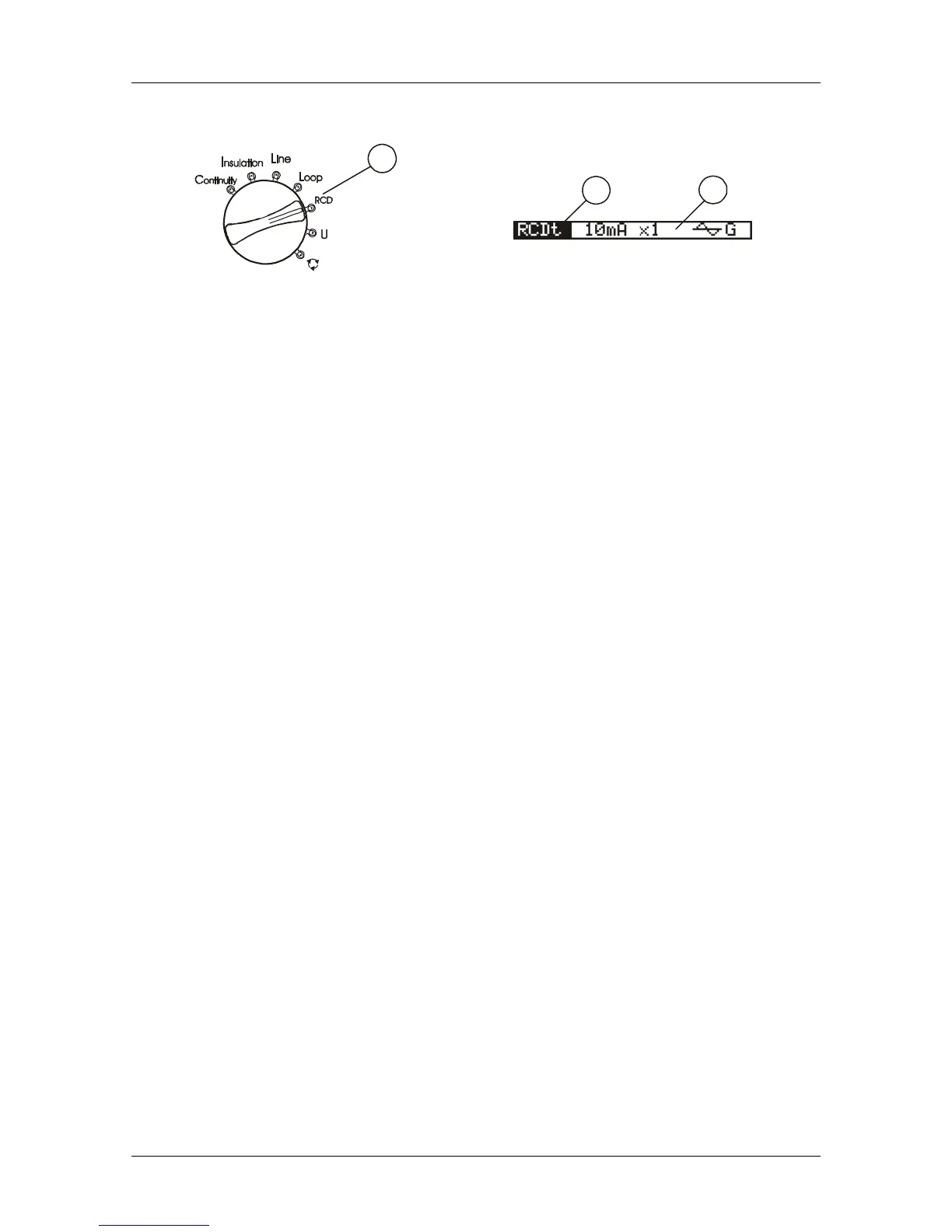

Figure 4.2: Function selector switch and belonging parameter line
Legend:
1……Main function name.
2……Function or sub-function name.
3……Measuring parameters and limit values.
4.2 Selecting measurement function/ subfunction
The following measurements can be selected with the function selector switch:
 Voltage and frequency,
 Insulation resistance,
 Low-value resistance,
 RCD testing,
 Fault loop impedance,
 Line impedance,
 Phase sequence,
The function/sub-function name is highlighted on the display by default.
Sub-function can be selected by using  and  keys in function/parameter line.
4.3 Setting measurement parameters and limits
By using  and  keys select the parameter/limit value you want to edit. By using 
and  keys the selected parameter can be set.
Once the measurement parameters are set, the settings are retained until new changes
are made or the original settings are recalled.
4.4 Help menu
Help menus are available in all functions. The Help menu contains schematic diagrams
for illustrating how to properly connect the instrument to electric installation. After
selecting the measurement you want to perform, press the HELP key in order to view
the associated Help menu.
