MI 3000 EasiPLUS Instrument description
14
3.2 Back panel
1
2
3

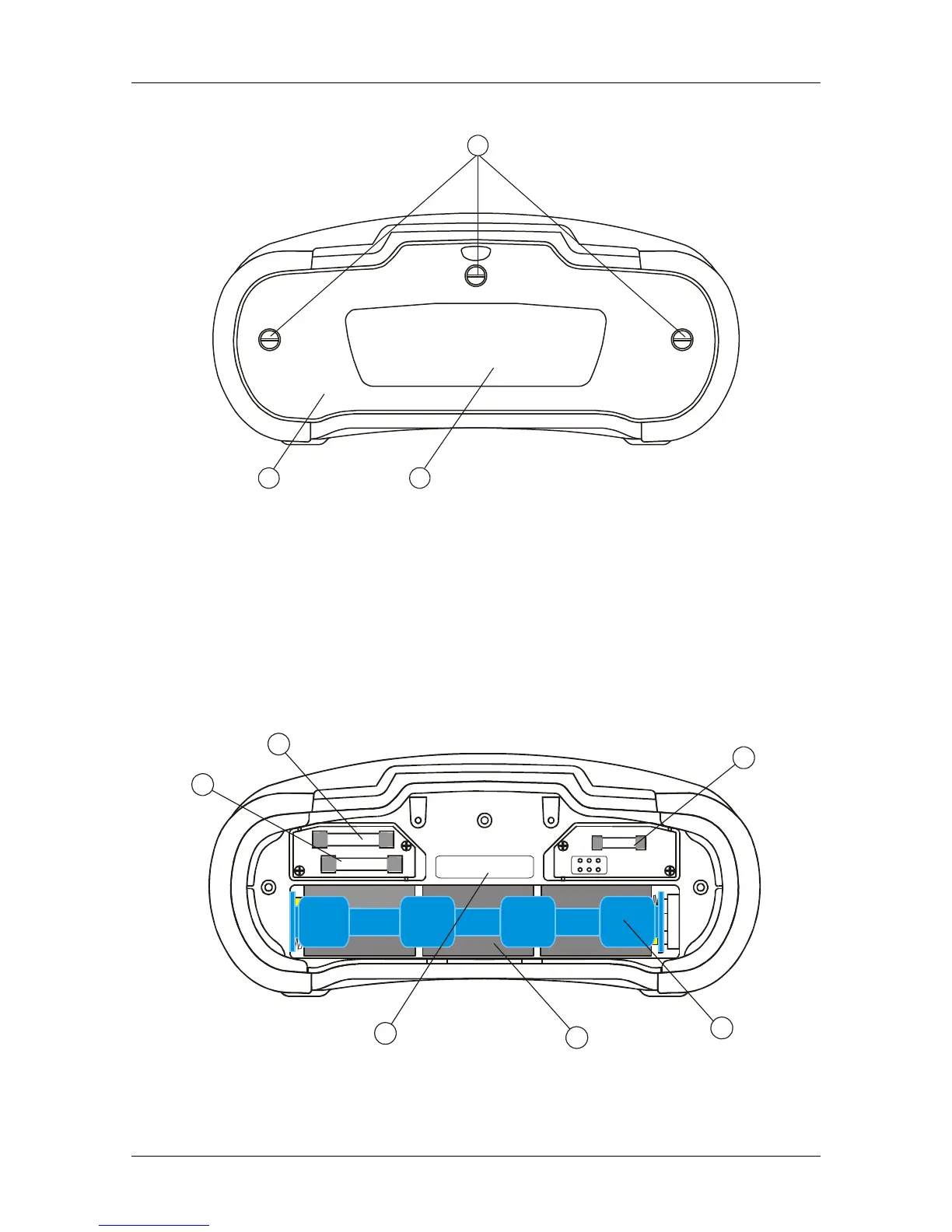

Figure 3.3: Back panel
Legend:
1........Battery/fuse compartment cover.
2........Information label.
3........Fixing screws for battery/fuse compartment cover.
5
6
4
1
2
3
F1
F3
F2
Fuse
Fuse
Fuse
SIZE AASIZE AA
SIZE AA
SIZE AASIZE AASIZE AA
S/N XXXXXXXX
Figure 3.4.: Battery and fuse compartment
