METREL EasiPLUS MI 3000 User Manual

MI 3000 EasiPLUS Measurements
L1
N
Reversed phase and
protection conductors!
MOST DANGEROUS
SITUATION!
PE
LPEN
L/
L
1
N
/
L
2
P
E
/
L
3

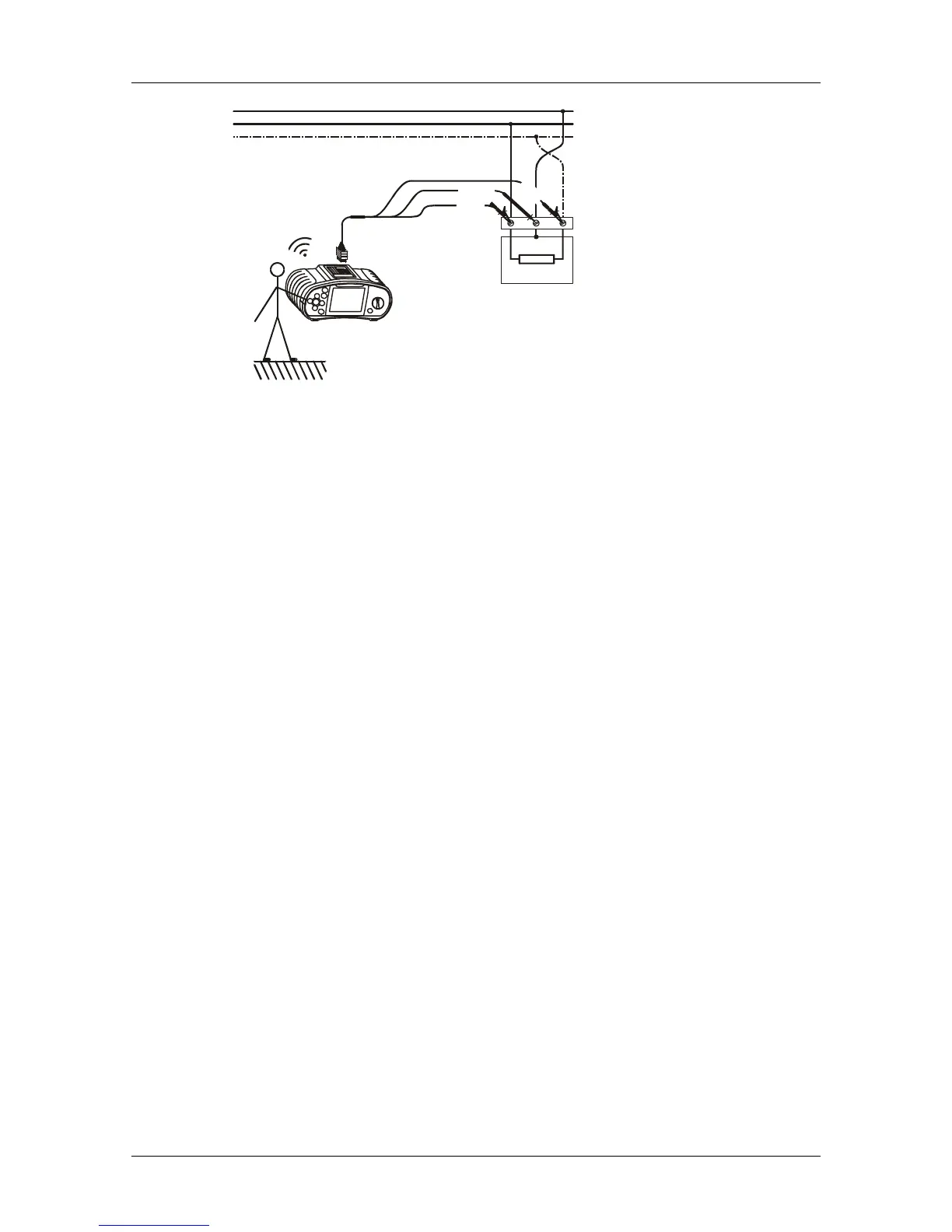

Figure 5.43: Connection of universal test cable to load connection terminals with
reversed L and PE conductors
Step 3 Touch the PE test probe (TEST key) for a few seconds. If PE terminal is
connected to phase voltage a warning message will be displayed and
instrument buzzer will sound.
Warning:
 If phase voltage is detected on tested PE terminal, stop all measurements
immediately and remove the cause of the fault before proceeding with any
activity!
Notes:
 The PE terminal can only be tested with the function selector set to RCD, LOOP
or LINE!
 For correct testing of PE terminals, the TEST key has to be touched for a few
seconds.
 When testing, make sure the instrument operated is stood on non-isolated floor
(otherwise the test result may be wrong!)
49
