Technical Specifications
50,000-count Benchtop Multimeter 53
Technical specifications
Duty cycle

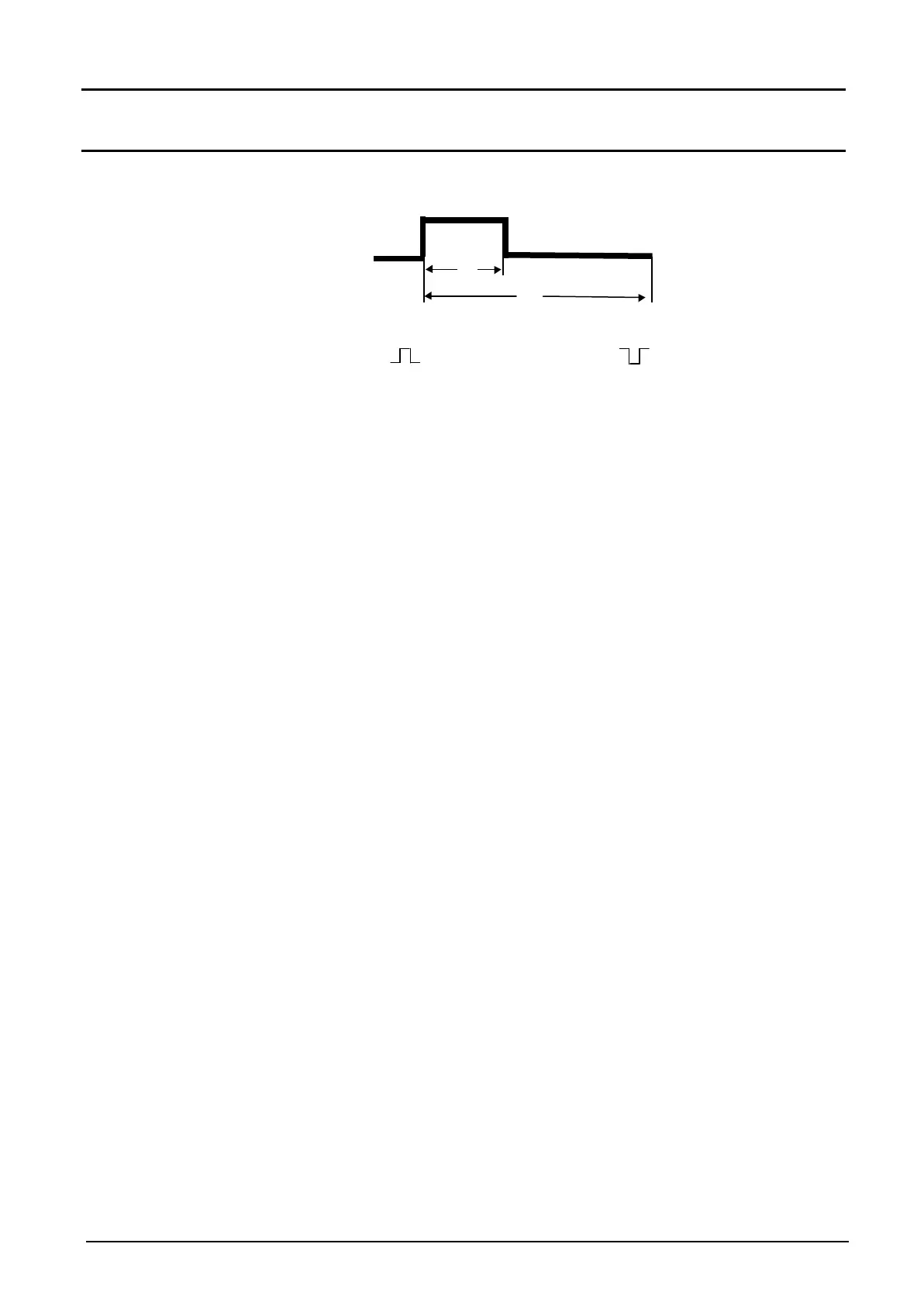

Displaying measurement in % of a logic signal (TTL, CMOS …)
Duty cycle θ = Duty cycle = T - θ
Resolution 0.01 %
Minimum term for θ 10 µs
Maximum term for T 0.8 s
Minimum term for T 100 µs
Nominal range 5 to 95 %
Absolute error on duty cycle,
expressed in % 0.2 % ± 0.0005 / T
Additional absolute error
(slope when set to zero) 0.1 x C/P
C = rate in V or en A (for 600 V rate, C = 5000)
P = slope in V/s or A/s
Protection 600 VAC
