Metrohm FOSS NIRS XDS MultiVial Analyzer User Manual

▪▪▪▪▪▪▪
97

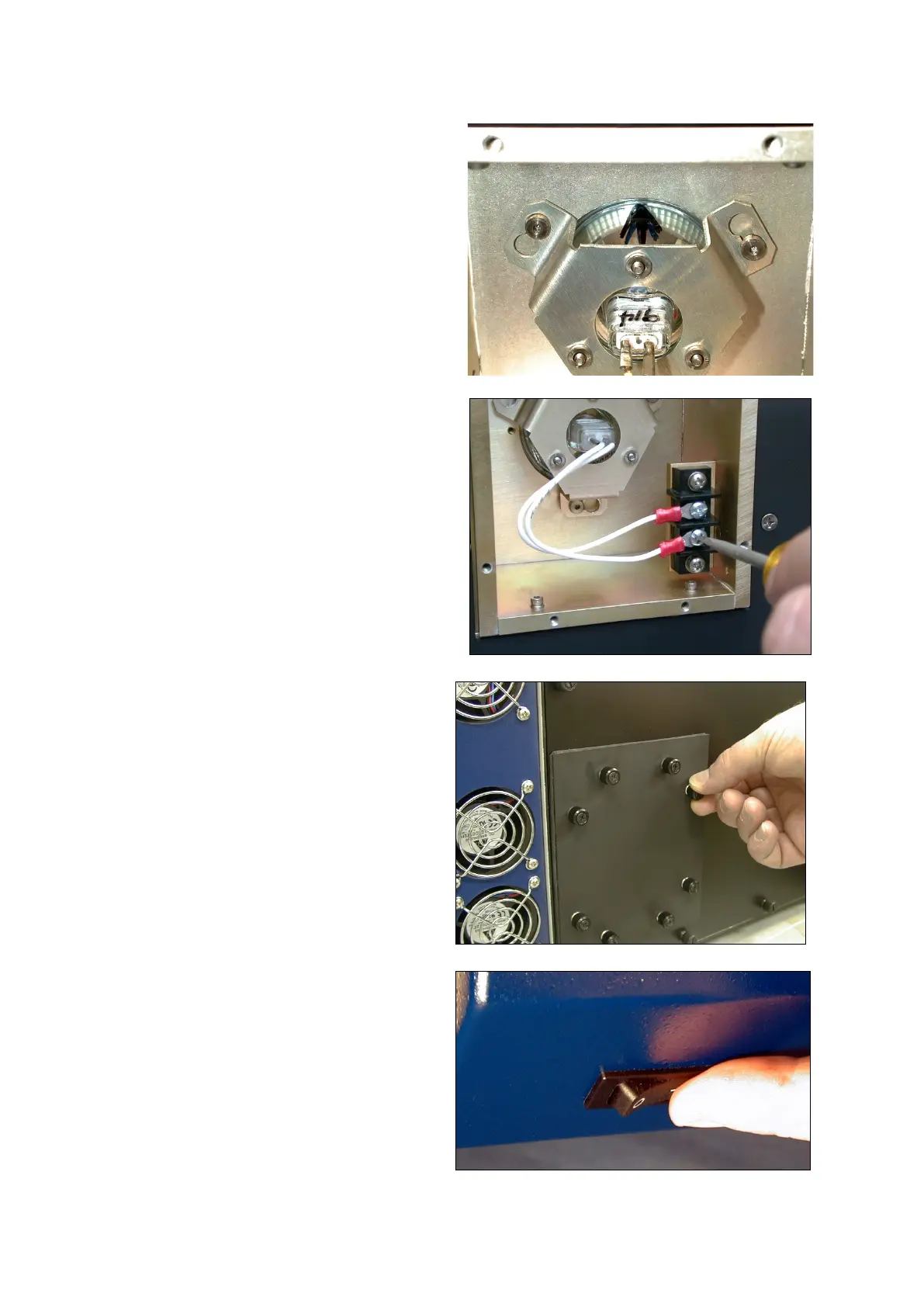

13. When the lamp is properly locked, the
assembly will appear as shown. Note
the shoulder screws holding the lamp
retaining ring.
Verify that the arrow is in the “upward”
position.
14. Install the wire terminals to the terminal
strip as shown. There is no polarity.
Place one wire to each terminal. Tighten
securely.
15. Place the lamp door over the lamp
box, and tighten the eight (8)
thumbscrews to hold the door in
place.
Do not use any tools to tighten the
thumbscrews.
16. Plug the instrument back in to AC
power. Turn the AC power switch to
ON.
