– Installation, Operating & Service - 5.3 - W4610201 V2.5 EN

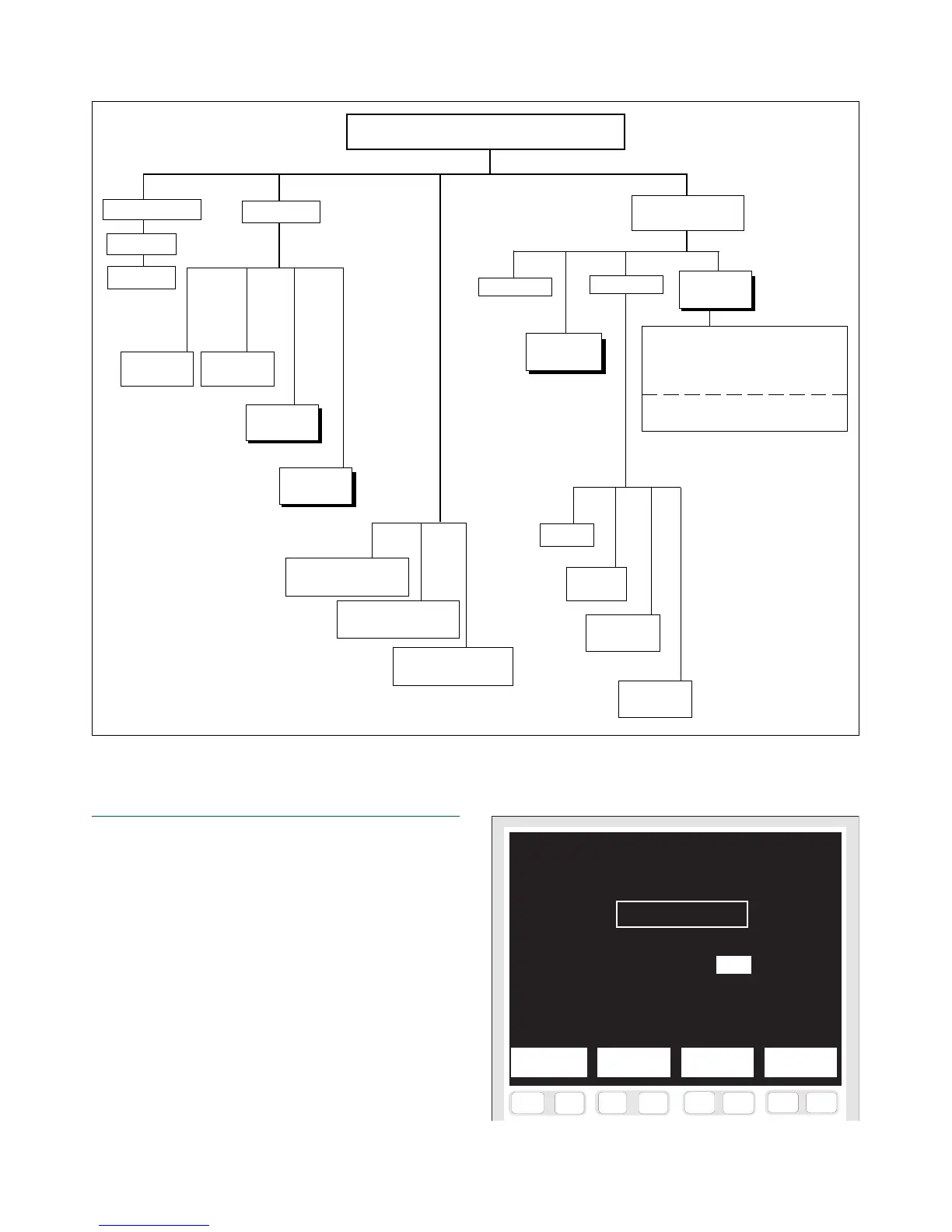

Fig. 5.3. Operating chart.
5.E. Main Menu
The MCAi main menu is shown in Fig. 5.4.
The main menu page shows the measured consisten-
cy and temperature. If the self-diagnostics function
detects an error, the name of the error is shown on the
“Status” line; otherwise this line reads “OK”.
• Consistency: measured consistency, %.
• Temperature: temperature in the process.
• Status: shows a description of possible errors; when
no errors have been detected, this line reads “OK”.
F7
F6
F5
F4
F8
F3
F1
F2
F9
F10
F11
F12
F13
F14
F15 F16
i
MCAi DESCRIPTOR
MCAI-000
———————————————————————————————————————————
MCAi-FT 100
Consistency = 2.93 %
Temperature = 70.2 °C
Status OK
Take Enter Current Selfdiag-
sample lab output nostics
Fig. 5.4. Main Menu.
MAIN MENU
Stop
Take sample
Start
Enter lab
Latest
sample
Cal. in
use
Calibr.
History
Current output 1:
Consistency
Current output 2:
temperature
Current output 3:
Chem.
Special
functions
Erase
Settings
Edit
Selfdiagnostics
(Error Table)
Diagn.
limits
Simul.
cable
Trend
table
Sample
History
Reset-
Abort
Chemical compensation
Temp.e compensation curve
Filler content: analog input
Sample taking: binary input
Recipes *
Sensitivity coefficient*
* password 0
To Next Page
