kajaaniMCA
i
– Installation, Operating & Service - 11.4 - W4610201 V2.5 EN
The following sections contain instructions for the
replacement of sensor electronics, antenna cables, and
antennas of the flow-through sensor. The antennas of
the fork-type sensor are not included in spare parts, and
they must always be replaced by the manufacturer. The
following instructions apply for all MCAi sensor types.

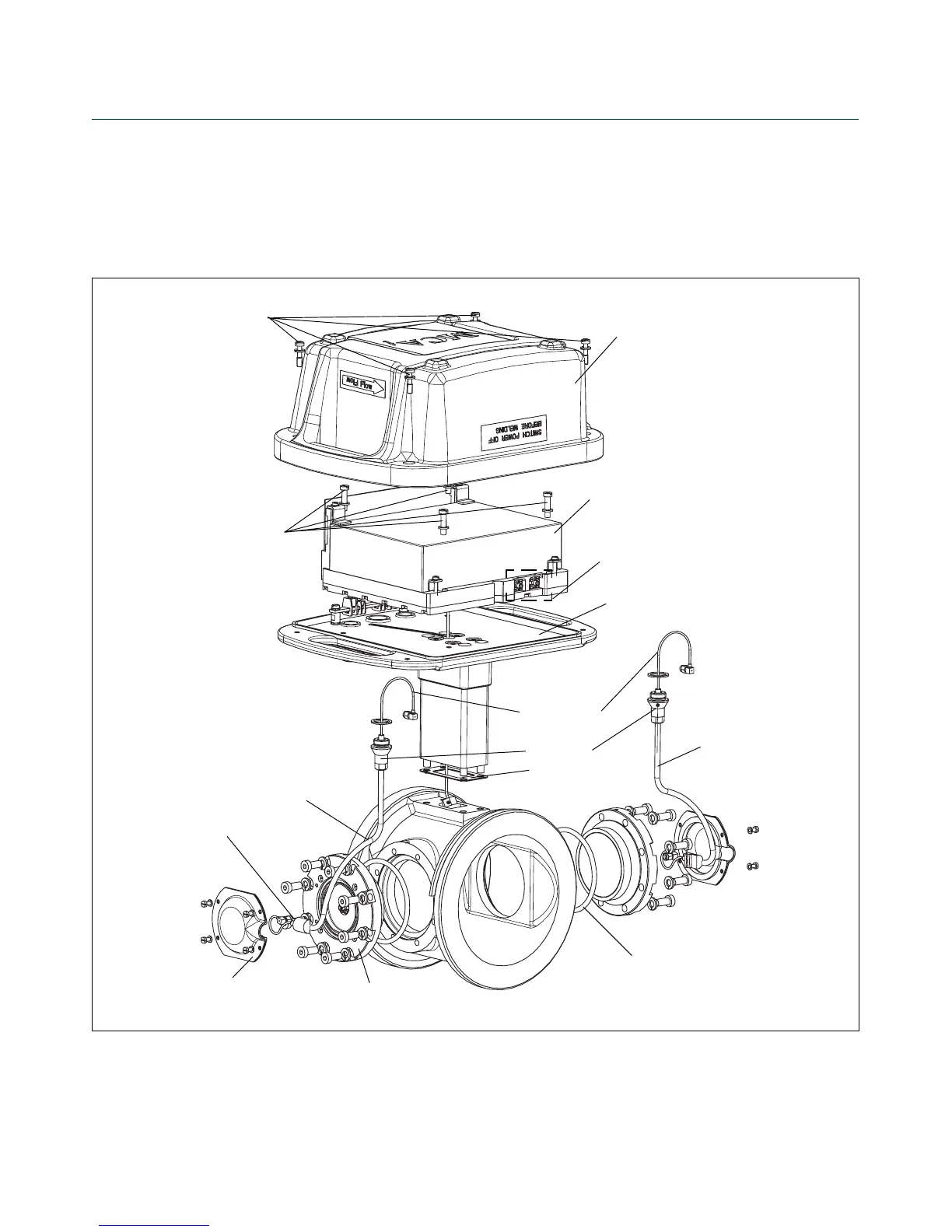

Fig. 11.2. MCAi-FT sensor.
11.C. Replacing Components
Screws of the Sensor
cover assembly
Electronics Unit
mounting screws
Sensor cover
assembly
Electronics Unit
Antenna cable connectors
Bottom plate
assembly
set
Antenna cable 1
Microwave antenna
Antenna cover
Antenna cable 2
Microwave connector
Microwave
connector
Bushing
Sealing
O-ring
