kajaaniMCA
i
– Installation, Operating & Service - A5.4 - W4610201 V2.5 EN
Model L/mm L/inch
150/6” 175 6 57/64
200/8” 225 8 55/64
Model L/mm L/inch
100/4” 300 11 13/16
250/10” 275 10 13/16
300/12” 350 13 25/32
DIN PN 16 D1 D2 D3 D4 D5 No. of bolts
100/4" 105 158 180 18 18 8
250/10" 255 320 355 26 24 12
300/12" 305 378 410 26 28 12
ANSI 150 D1/mm D2/mm D3/mm D4/mm D5/mm No. of bolts
100/4" 105 157.2 190.5 19.5 23.8 8
250/10" 255 324 361.9 25.4 30.2 12
300/12" 305 381 431.8 25.4 31.8 12
ANSI 150 D1/inch D2/inch D3/inch D4/inch D5/inch No. of bolts
100/4" 4 1/8 6 3/16 7 1/2 25/32 15/16 8
250/10" 10 3/64 12 49/64 14 1/4 1 1 3/16 12
300/12" 12 15 17 1 1 1/4 12
JIS 10k D1 D2 D3 D4 D5 No. of bolts
100/4" 105 160 185 23 22 8
250/10" 255 345 380 27 28 12
300/12" 305 395 430 27 30 16
D1/mm D2/mm D3/mm
150/6" 155 220 22.5
200/8" 205 270 22.5
D1/inch D2/inch D3/inch
150/6" 6 3/16 8 21/32 7/8
200/8" 8 1/16 10 5/8 7/8

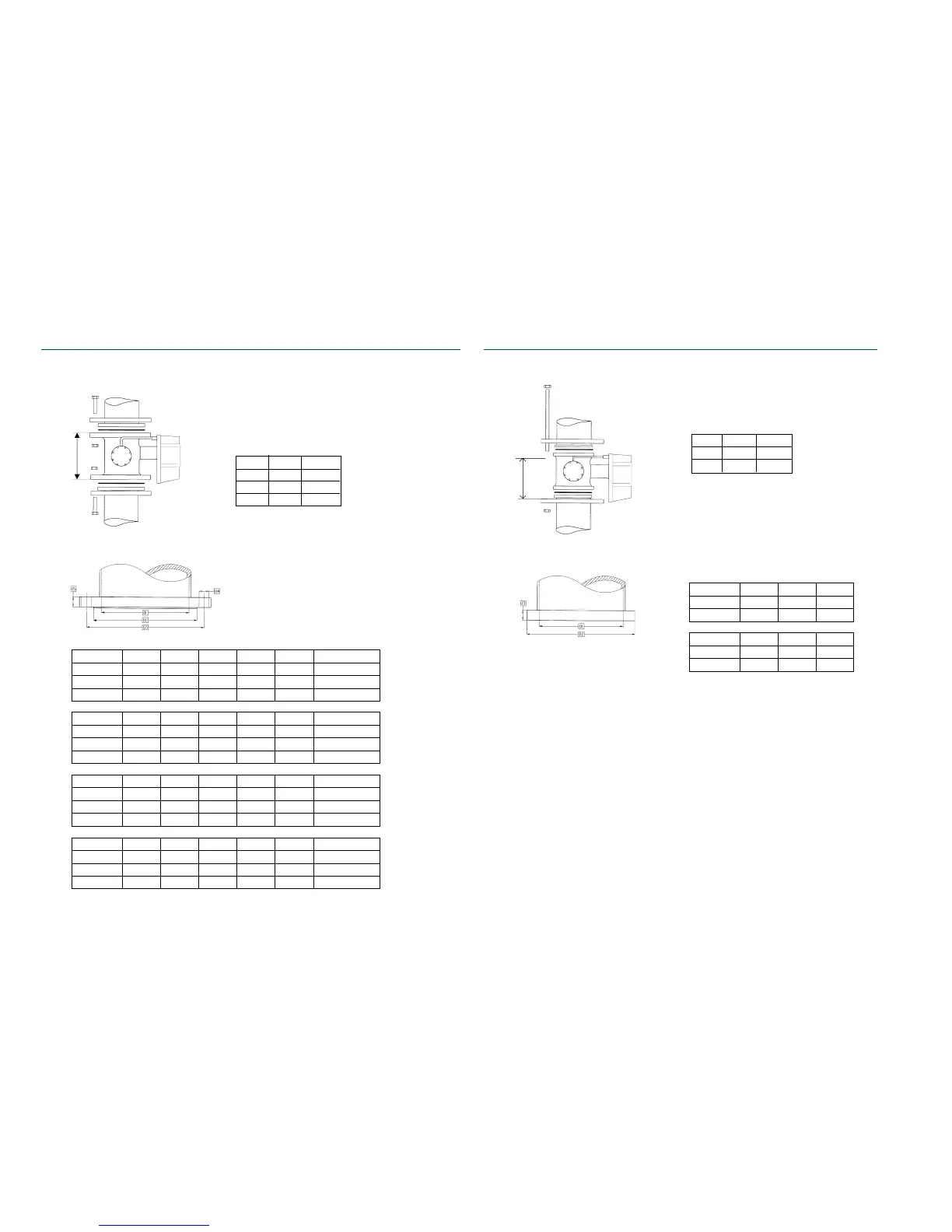

MCAi-FT 100/4", 250/10" & 300/12" – installation dimensions MCAi-FT 150/6" & 200/8" – installation dimensions
L
L
