Metso ND9200F - Mounting parts for B1 C;B1 J 25-50, B1 C 502 and B1 J322 actuators; Mounting parts for Quadra-Powr actuators

32 7 ND92F 70 en

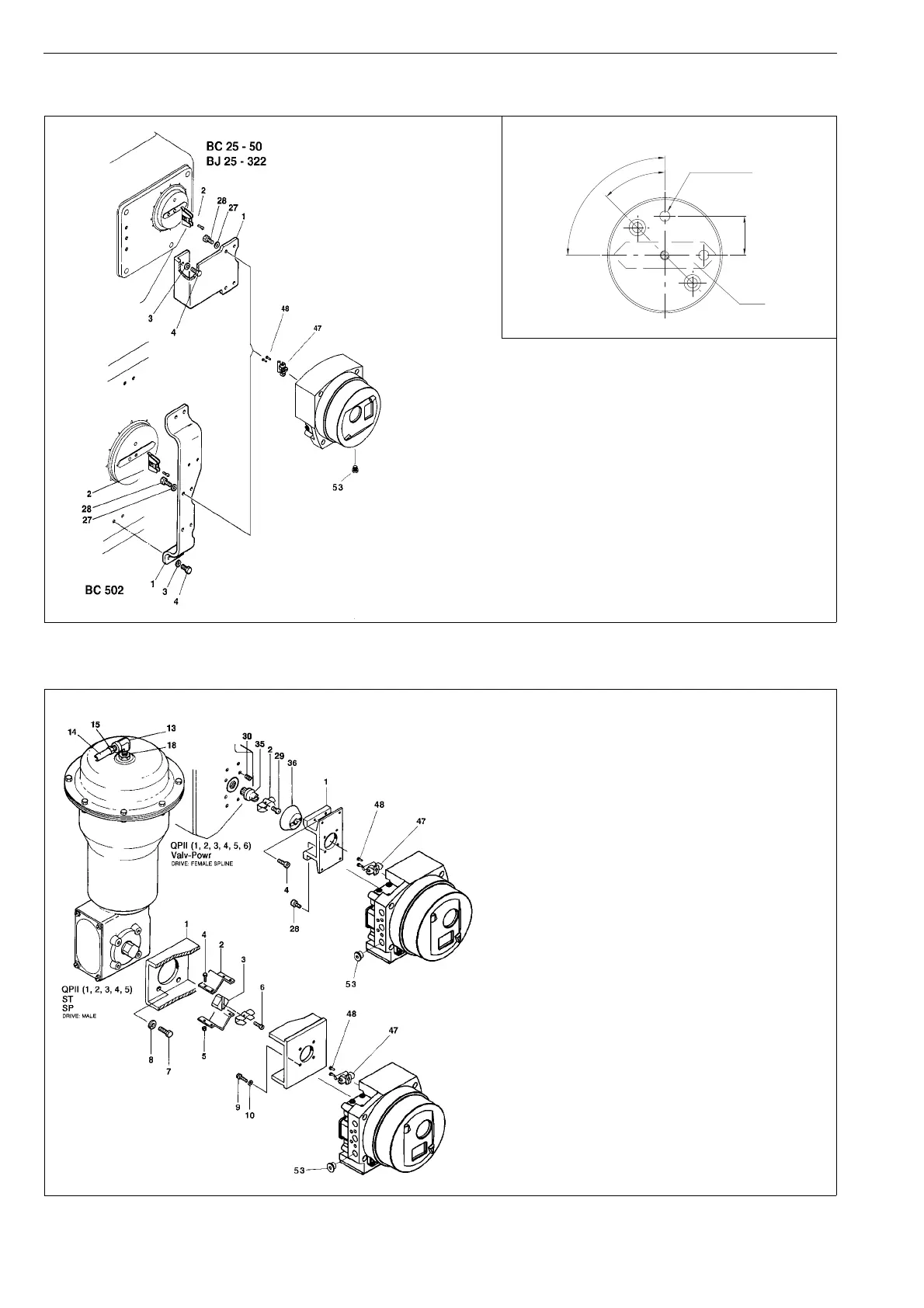

12.5 Mounting parts for B1C/B1J 25-50,
B1C 502 and B1J322 actuators
12.6 Mounting parts for Quadra-Powr®
actuators
Item Qty Description
1 1 Mounting bracket
2 1 Draught piece
34Washer
44Screw
27 4 Washer
28 4 Screw
47 1 Coupler socket
48 2 Screw
53 1 Plug (BJ actuators only)
ND9200
90°
45°
21
Arrow
new hole drilled
ø5.5 through
Note: Old series B actuators
Note:
Different mounting
position
Item Qty Description
1 1 Mounting bracket
21Ear
44Screw
28 4 Screw
29 1 Screw
30 4 Screw
35 1 Adapter plug
(QP II 1/S- 6/S only)
35 1 Adapter plate
(QP II 2B/K thr. 6_/K)
36 1 Couplings jacket
47 1 Coupler socket
48 2 Screw
53 1 Plug
Item Qty Description
1 1 Mounting bracket
2 2 Coupling half
31Adapter
44Screw
5 4 Hex nut
61Screw
74Screw
84Washer
94Screw
10 4 Washer
47 1 Coupler socket
48 2 Screw
53 1 Plug
ND9200
ND9200
