Metso ND9200F - Connection diagrams

7 ND92F 70 en 35

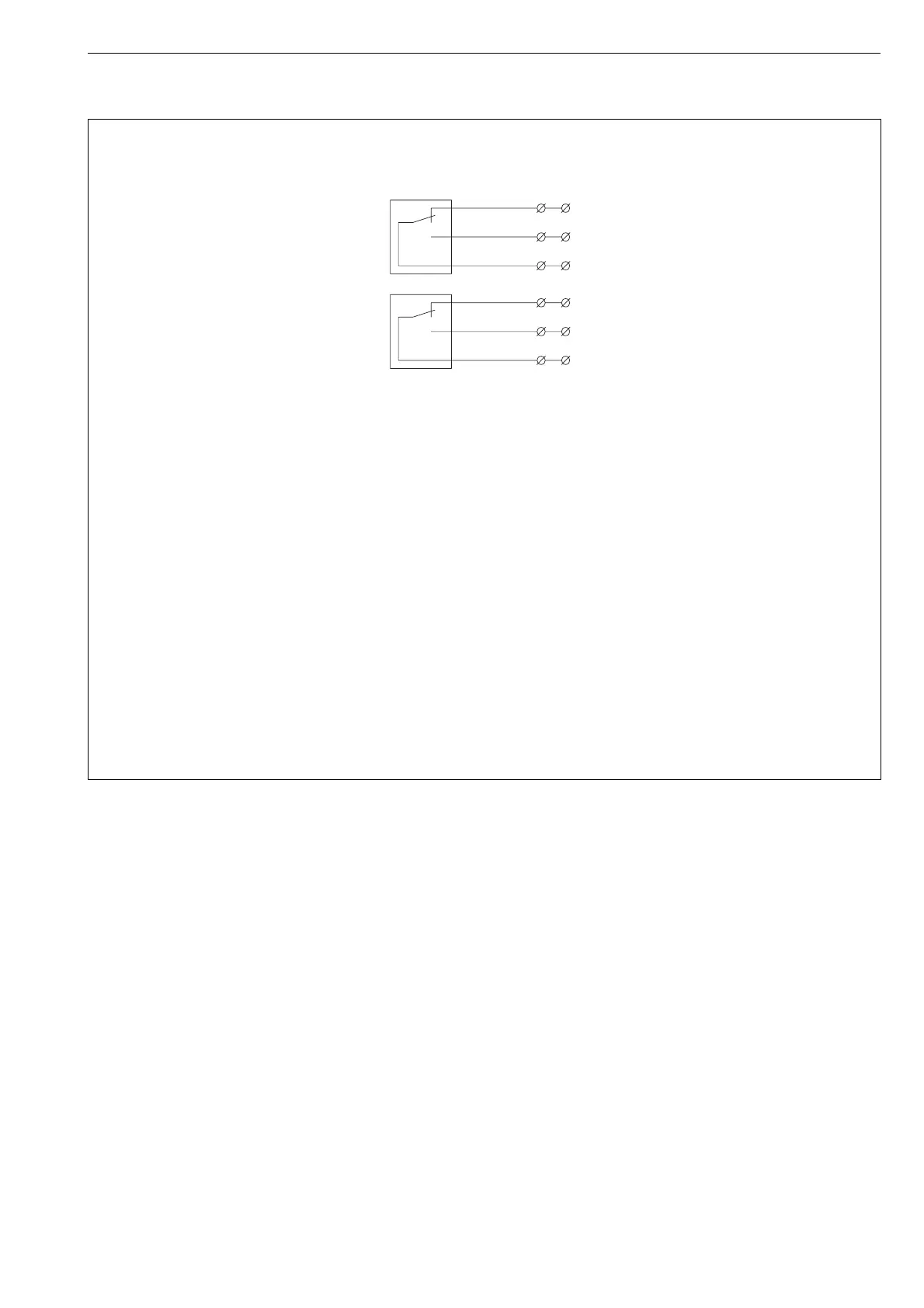

12.9 Connection diagrams
See Section 9.1.3 for additional limit switch data.
ND92_F/K05, ND92_F/K06
11
red
12
13
15
16
14
A
K
black
blue
black
red
OPEN
CLOSED
Connection diagram shows limitswitch when actuator is in
intermediate position. Switch A (upper) is activated at the
open limit of the travel and switch K (lower) at the closed
limit.
Electrical characteristics:
OMRON D2VW-5 (K05):
5 A - 30 V DC, 0.4 A - 125 V DC,
3 A - 250 V AC
blue
OMRON D2VW-01, gold-plated contacts (K06):
100 mA - 30 V DC / 125 V AC
Ambient temperature -40 ° ... +80 °C / -40° ... +176 °F
