7 ND92F 70 en 37
ND92_F/I56
11
-
+
13
14
16
+
-
DC
DC
K
A
black
black
black
black
OPEN
CLOSED
Factory adjustment:
Active faces of proximity switches are free when the actuator is
in the intermediate position. Active face A (upper switch)
becomes covered at the open limit of the travel and face K
(lower switch) at the closed limit.
The function may be inverted on site by re-adjusting the cam
discs.

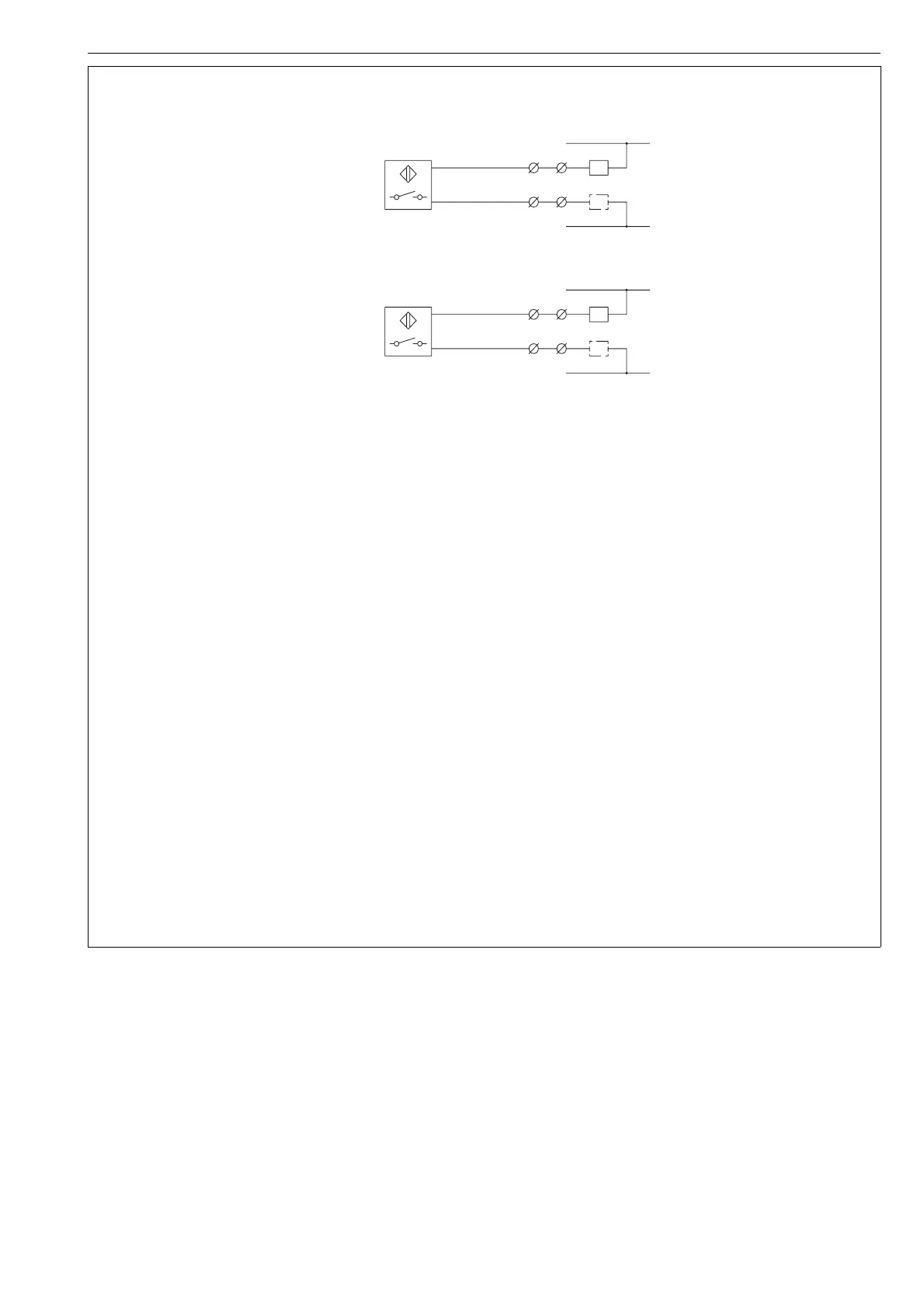

Connections: Either wire can be connected to + or -.
PRO
XIMITY SWIT
CH
ifm electronic IFC2002-ARKG/UP
2-wire type
Sensing distance 2 mm
Rated voltage U = 10 - 36 V DC
Output current < 150 mA
active face covered, LED on
Quiescent current < 0.6 mA
active face free
Ambient temperature -20˚ ... +80 ˚C / -13˚ ...+176 ˚F
