the area prior to the application of couplant will result in
more efficient transmission of ultrasound.
13. When the set treatment time has elapsed, the unit beeps three
times. Time and ultrasound power displays will display “0”
and ultrasound power will turn off. After the treatment ends,
you can press the “Reset Setup” or the ultrasound channel
selector to free up the channel(s) for the next treatment
selection.

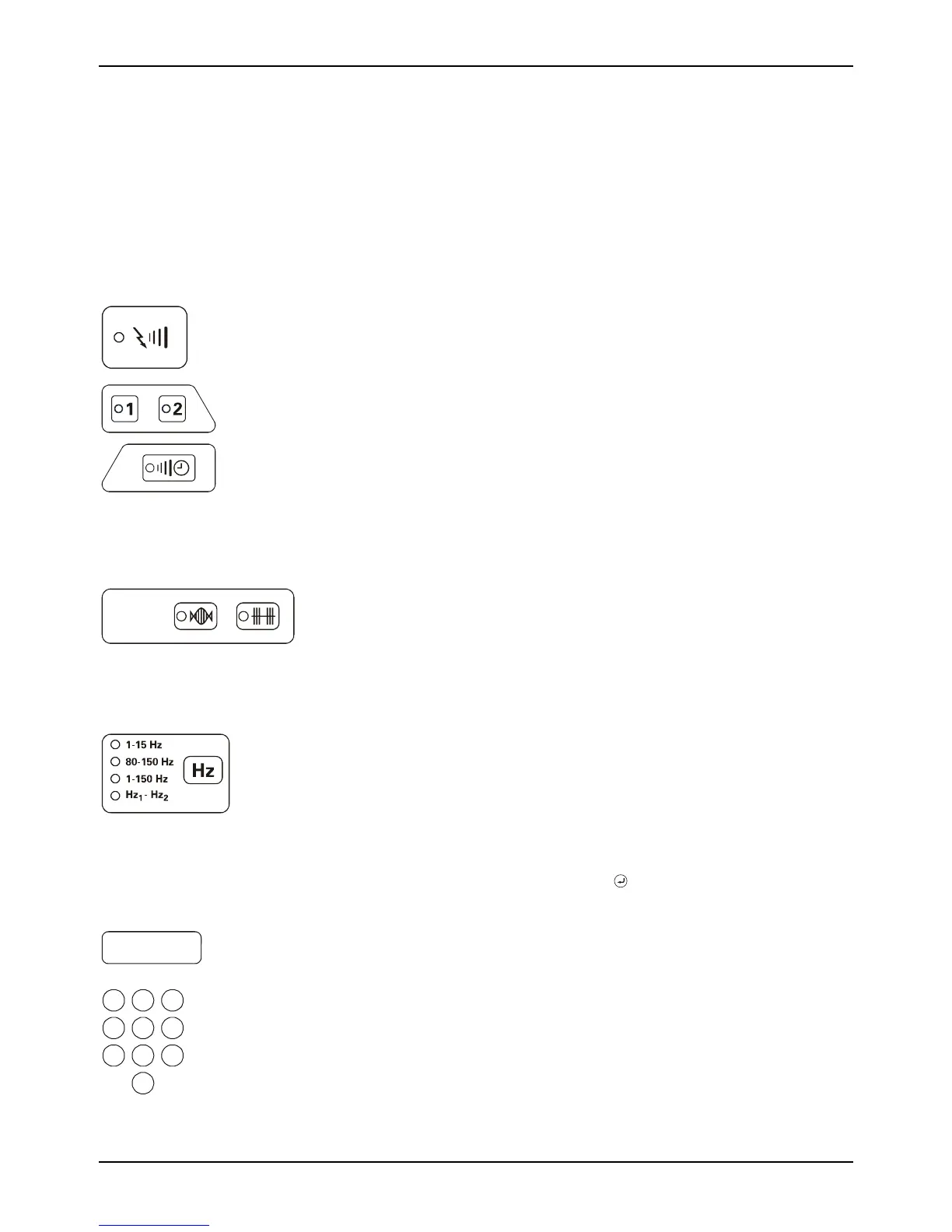

4.6 Combination Therapy Set-up Procedure
Combination
Setup
1. Press the combination setup key. LED’s for Premodulation
and Medium Frequency will begin to blink.
Stimulation
Channels
Ultrasound
Channel
2. The green LED indicators will illuminate for the ultrasound
treatment and Channel 1. Indicators will blink for channels
that have already been programmed, but are not being
currently displayed.
To view the parameters for a channel, whose indicators are
blinking, press the selector button. You will then be able to
view selected treatment parameters, treatment output and
time remaining or elapsed.
FrequencyPremodulated
Medium
3. Select the stimulation waveform that you would like to use.
Premodulated
Medium Frequency, Russian waveform
Please Note: Combination therapy is available with Channel 1
only.
Sweep Frequency
4. Select frequency options for interferential and premodulated
waveforms.
Choose from preset frequency modulation programs: 1-15,
80-150 or 1-150 Hz or…
Pick Hz
1
-Hz
2
to set your own static frequency or frequency
sweep range. Enter values for each frequency using the
numeric keypad followed by the
key. The frequency is
displayed in the timer window and the Hz LED is lit.
smin
0 5. 0
123
456
789
0
5. Input treatment time. The maximum treatment time is 30
minutes. If you do not input time the timer will display
elapsed time during the treatment and stop at 30 minutes.
