Sonicator Plus 930 Instruction Manual— Rev.J_09/13/17
5
Section 1: Introduction
1.1 Introduction to the Sonicator Plus 930
Thank you for purchasing the Sonicator Plus 930 two-channel combination unit for
therapeutic ultrasound and muscle stimulation. The microprocessor controlled Sonicator
Plus 930 provides interferential, premodulated and medium frequency waveforms with
enhanced reliability and ease of use. In addition the Sonicator Plus 930 offers 1 and 3 MHz
ultrasound using a dual frequency 5 cm² applicator. An additional two applicators are also
available: 1 Mhz, 10 cm² and 3 Mhz, 1 cm². The Sonicator Plus 930 must be specially calibrated
to use these applicators so that they function properly.
The two–channel Sonicator Plus 930 allows you to utilize up to two different waveforms
using two channels simultaneously. You can choose between several different amplitude
modulation options such as the surge, reciprocation and vector rotation. The interferential
and premodulated modes offer frequency modulation as well as a static frequency option.

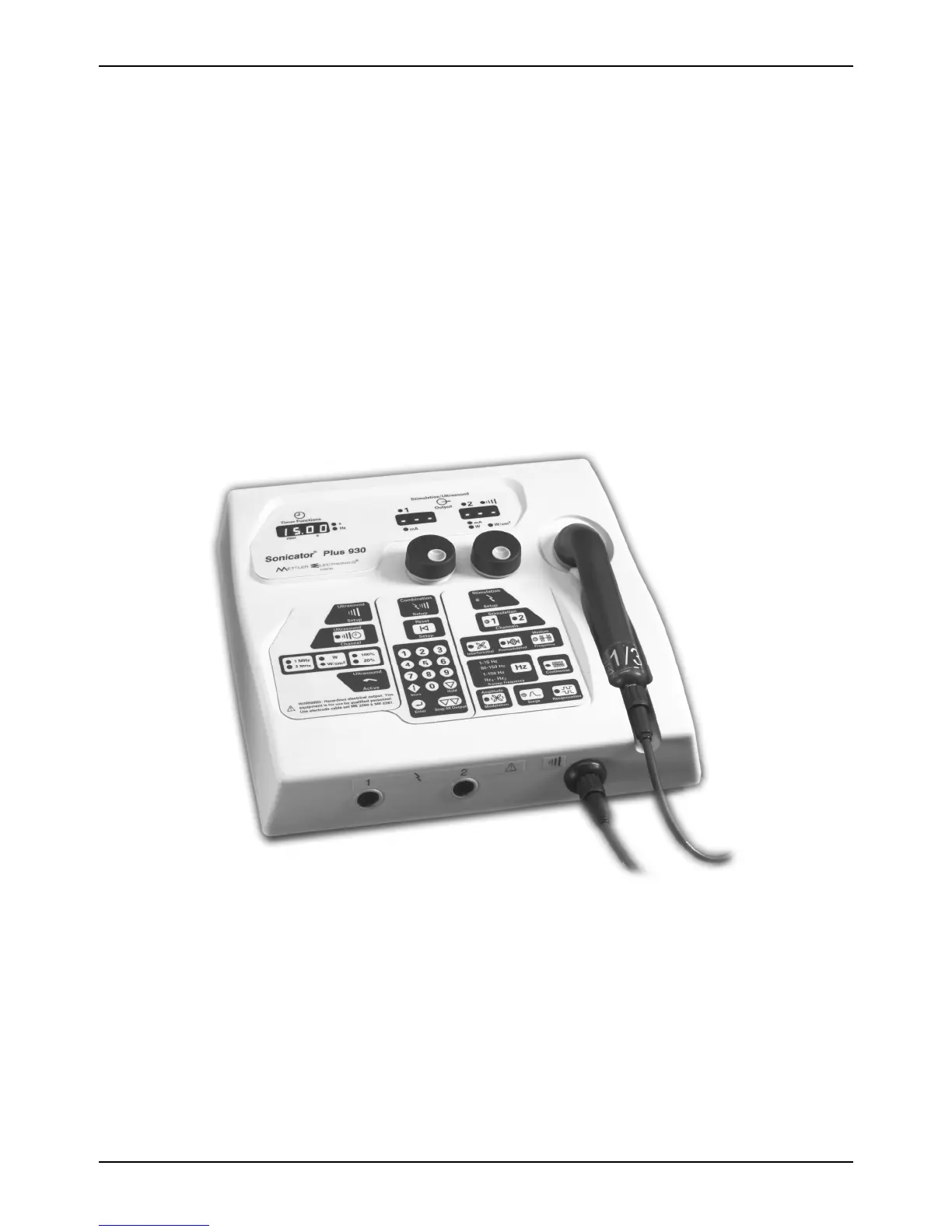

Figure 1.1— Sonicator Plus 930
The membrane panel provides both tactile and audio feedback when buttons are pressed.
Blinking LED’s guide you through the easy setup routine. The Sonicator Plus 930 features
new “Reset” and separate “Enter” keys to make programming your treatment setups
easier.
Large, soft-touch control knobs make adjusting power for ultrasound and stimulation easy
to accomplish with no guesswork involved. Two LED output displays allow you to
monitor two channels simultaneously for two channel or combination treatment protocols.
These also allow you to adjust both channels of an interferential protocol simultaneously
while monitoring the current.
