Spatial Pattern: The applicator produces a collimated (cylindrical) beam
with an area of 5 cm², measured 5 mm from the ceramic
disc surface when the radiation is emitted into the
equivalent of an infinite medium of distilled water at 30° C.
The beam of the applicator is circular in all planes
parallel to the applicator face. A few inches from the
face, it is a single smooth bell-shaped curve. Nearer the
face the pattern varies more due to phase cancellations.
Sample curves measured in the far field from the surface
are shown in Figures 9.3 and 9.4.

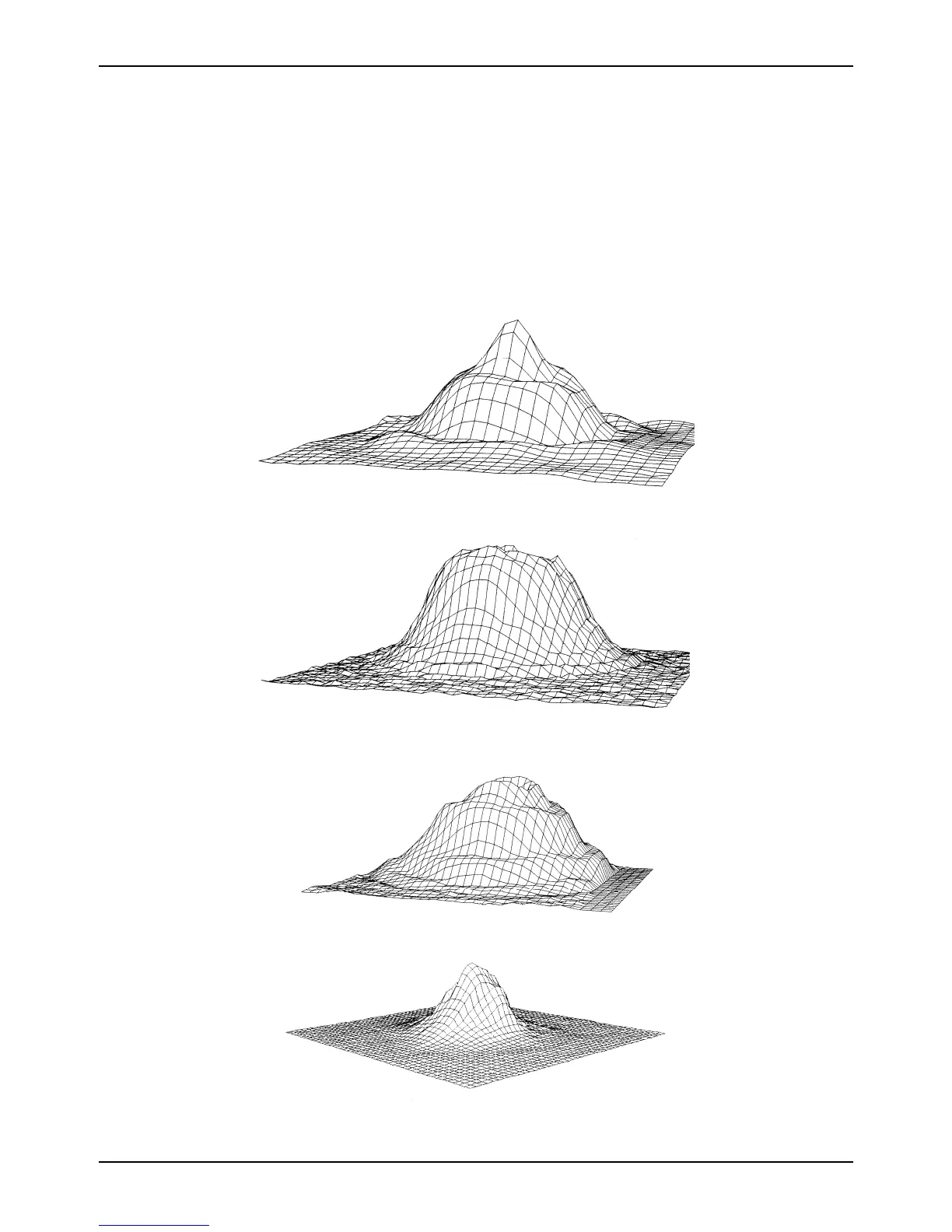

Figure 9.3—5 cm² Applicator (1 MHz), ME 7513—Three Dimensional Beam Pattern
Figure 9.4—5 cm² Applicator (3.2 MHz), ME 7513—Three Dimensional Beam Pattern
Figure 9.5—10 cm² Applicator (1 MHz), ME 7310,—Three Dimensional Beam Pattern
Figure 9.6—1 cm² Applicator (3.3 MHz), ME 7331,—Three Dimensional Beam Pattern
