Mettler Electronics Sonicator Plus 930 - Ultrasound Absorption, Fat; Ultrasound Absorption, Muscle with the Ultrasound Beam Perpendicular to the; Ultrasound Absorption, Bone

Mettler Electronics Corp.— Rev.J_09/13/17
44
012345
0
10
20
30
40
50
60
70
80
90
100
Ultrasound Remaining
Per Cent
Tissue Depth
Centimeters
3.3 MHz 1 MHz

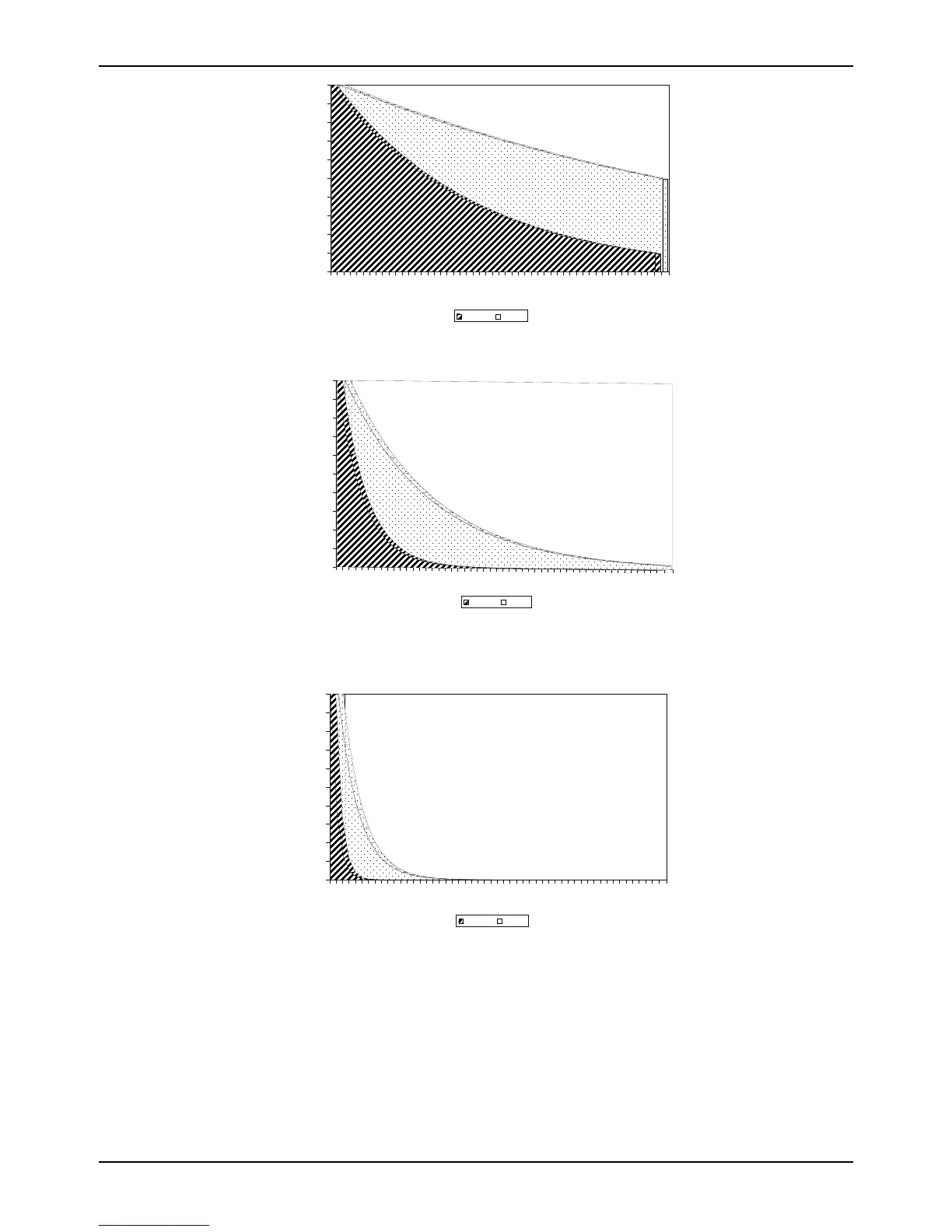

Figure 7.2—Ultrasound Absorption, Fat
0
1
2
3
4
5
0
10
20
30
40
50
60
70
80
90
100
Ultrasound Remaining
Percent
Tissue Depth
Centimeters
3.3 MHz 1 MHz
Figure 7.3—Ultrasound Absorption, Muscle with the Ultrasound Beam Perpendicular to
the Muscle Fibers
012345
0
10
20
30
40
50
60
70
80
90
100
Ultrasound Remaining
Per Cent
Tissue Depth
Centimeters
3.3 MHz 1 MHz
Figure 7.4—Ultrasound Absorption, Bone
The physics of ultrasound and audible sound are similar, except for frequency. Both travel
as longitudinal waves through a conducting medium. Ultrasound waves can be
propagated in a gaseous, liquid, or solid medium, but not in a vacuum.
