4.4 Stimulation Set-up Procedure
Stimulat io n
Setup

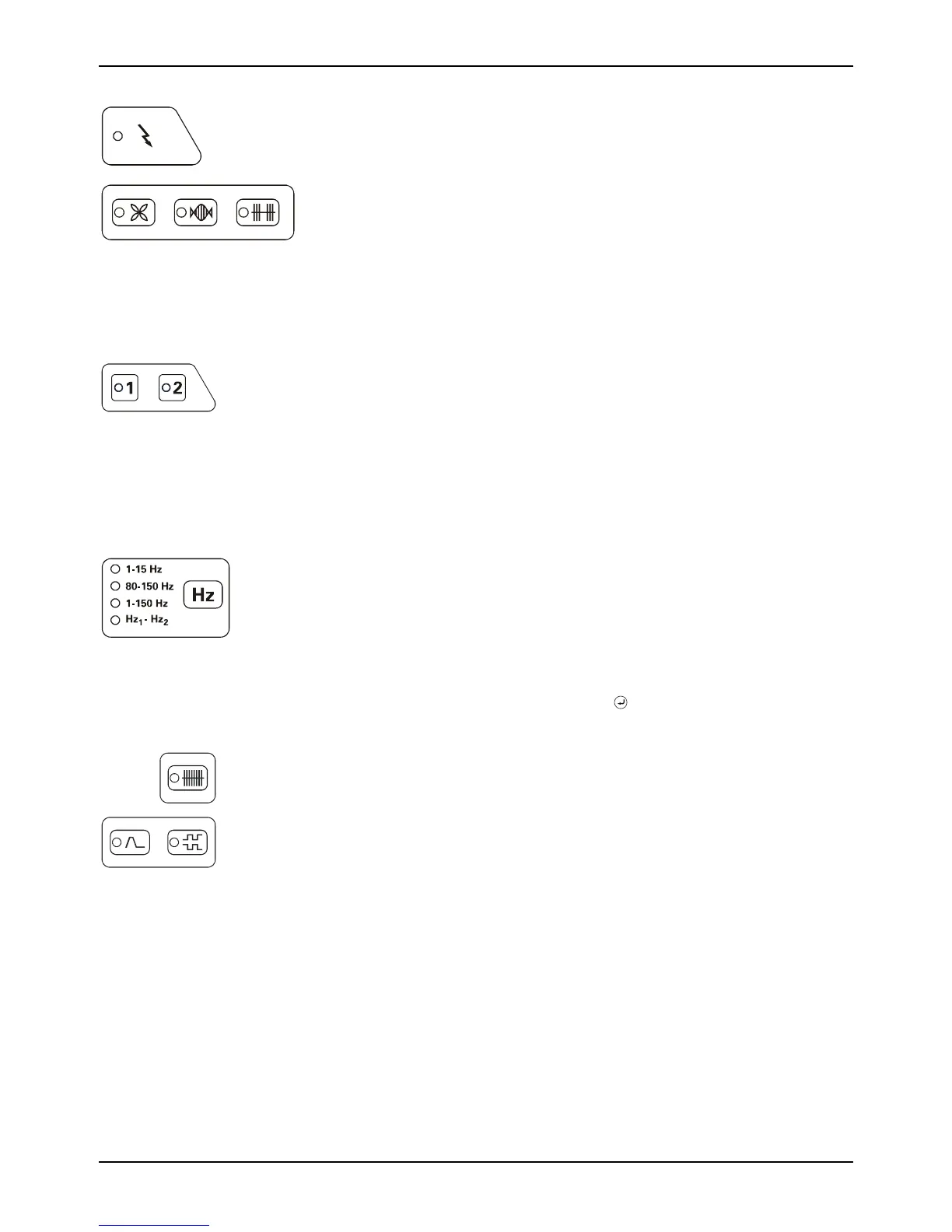

1. Press the stimulation setup key. All the waveform LED’s will
begin to blink. Please note: Start here to begin programming an
additional stimulation treatment setup.
FrequencyPremodulatedInt erferential
Medium
2. Select the stimulation waveform that you would like to use.
Interferential—Channels 1 & 2
Premodulated—Channels 1 or 2
Medium Frequency, Russian waveform— Channels 1 or 2.
Please Note: Up to two different stimulation protocols may
be run simultaneously.
Stimulation
Channels
3. For the interferential waveform, the Sonicator Plus 930 will
automatically pick channels 1 & 2. For the premodulated and
medium frequency waveforms, the next available channel will
be selected. If a two-channel treatment is desired pick
Channel 2 by pressing its button. If a channel is already in
use, you will need to free it up before using these two
waveforms. Cancel a treatment setup by pressing the
channel selector.
Sweep Frequency
4. Select frequency options for interferential and premodulated
waveforms.
Choose from preset frequency modulation programs: 1-15,
80-150 or 1-150 Hz or…
Pick Hz
1
-Hz
2
to set your own static frequency or frequency
sweep range. Enter values for each frequency using the
numeric keypad followed by the key. The frequency is
displayed in the timer window and the Hz LED is lit.
Surge Reciprocation
Continuous
5. Set options for amplitude modulation—continuous, surge
and reciprocation.
Continuous—no amplitude modulation, no On/Off times,
default setting, Interferential, Premodulated and Medium
Frequency waveforms.
Surge—Set an On and Off time, 3 seconds Up ramp, 2
seconds Down ramp, Premodulated and Medium Frequency
waveforms.
Reciprocation—Stimulation alternates equally between
Channels 1 & 2, 1 second Up and Down ramps, Premodulated
and Medium Frequency waveforms.
To Next Page
