Operating Instruction X-Type plus
Operating instructions X-Type plus V1-3.docx Page 33 of 45

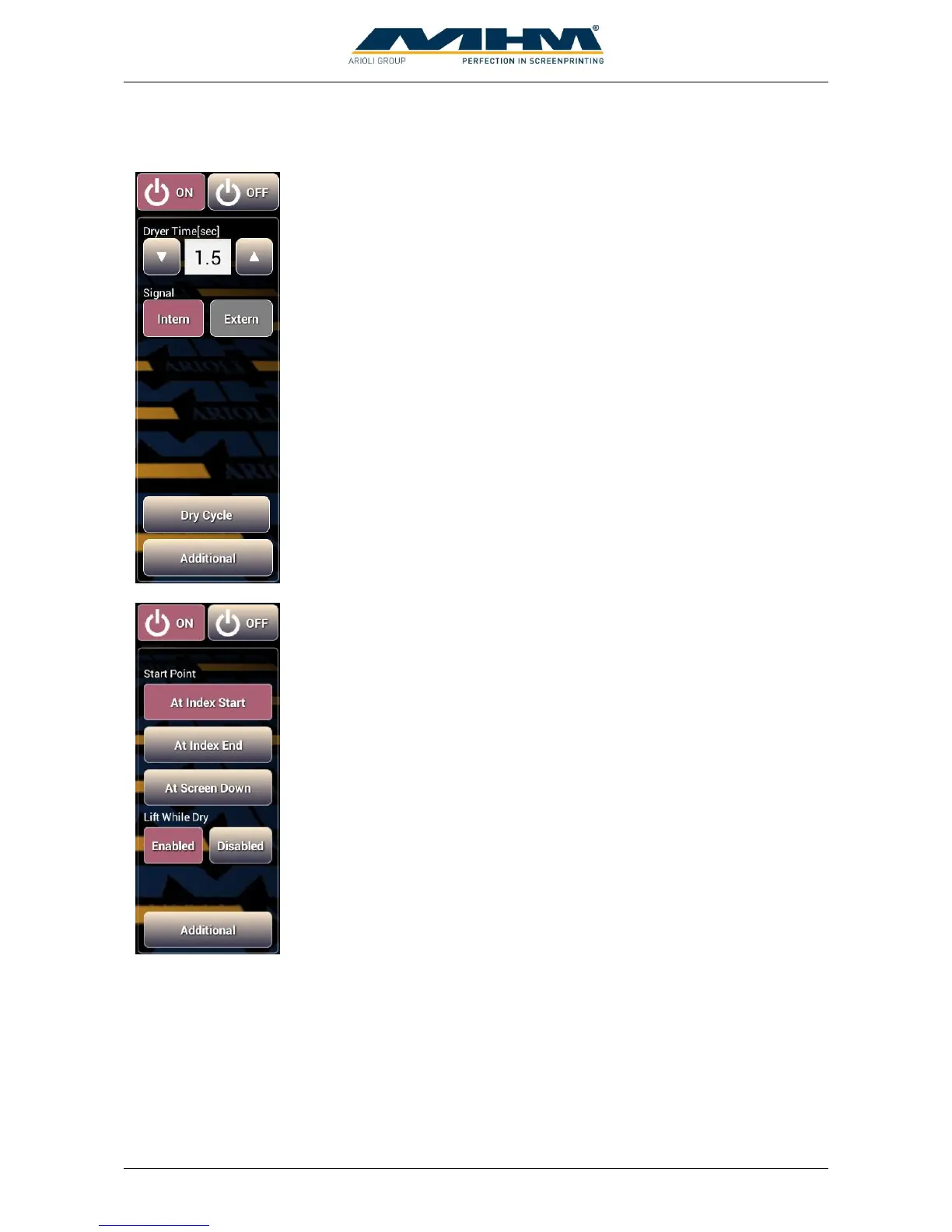

When a dryer is detected by the machine the following control panels are displayed:
“On” activates a station, appending parameters are displayed.
“Off” deactivates a station.
Determines the drying time. When time is set to 0, drying mode switches
from internal to external automatically.
“Intern”: Drying time is controlled by the machine. Enter time in the field
above.
“Extern”: Drying time is controlled by the dryer. Machine waits for a
complete signal send by the dryer.
Start a drying cycle with the programmed parameters.
Switches to the following control panel.
“On” activates a station, appending parameters are displayed.
“Off” deactivates a station.
Drying starts at the beginning of an index.
Drying starts at the end of an index.
Drying starts after the machine has lowered to off-contact position.
„Enabled“: Lifting screen during drying is allowed.
„Disabled“: No screen lift during drying.
Switches to previous control panel.
