Connecons
User Guide
© 2023 Microchip Technology Inc. and its subsidiaries
DS-50003529B - 13
3.2.2 Ethernet - Modes
MPLAB
®
ICD 5 In-Circuit Debugger supports dierent modes of Ethernet communication.

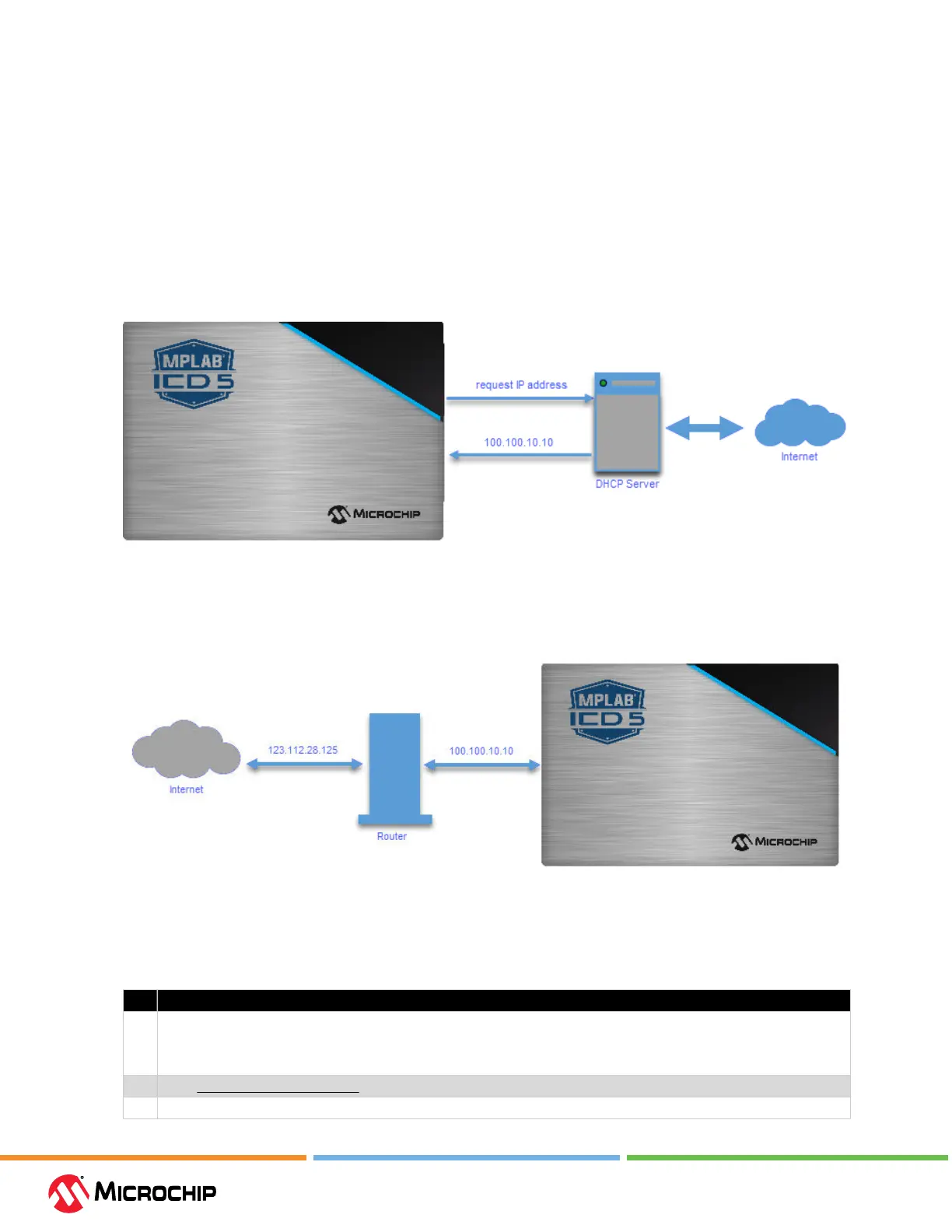

3.2.2.1 Ethernet Wired/DHCP/APIPA
When connecting MPLAB
®
ICD 5 In-Circuit Debugger to the Ethernet, request a DHCP (or APIPA) IP
address.
DHCP (Dynamic Host Conguration Protocol) is for assigning dynamic IP addresses to devices that
are connected to the network. Automatic Private IP Addressing (APIPA) is a feature in Windows
operating systems that enables computers to automatically self-congure an IP address and subnet
mask when their DHCP server isn’t reachable.
3.2.2.2 Ethernet Stac IP
A Static IP address is one that is permanently assigned to your network devices.
3.2.3 Ethernet - Setup and Tool Discovery
Follow the steps in the table to set up the desired Ethernet mode and then nd the connection.
Table 3-1. Ethernet Setup and Tool Discovery in MPLAB
®
X IDE
Step Action
1 Connect the debugger to your PC via the USB cable.
If you will be using Ethernet communication, a PoE injector is mandatory.
Note: A USB connection is required at rst to setup Ethernet communication.
2 Go to Tools> Manage Network Tools in MPLAB X IDE (see gure below).
3 Under "Network Capable Tools Plugged into USB," select your debugger.
