About the Debugger
User Guide
© 2023 Microchip Technology Inc. and its subsidiaries
DS-50003529B - 8

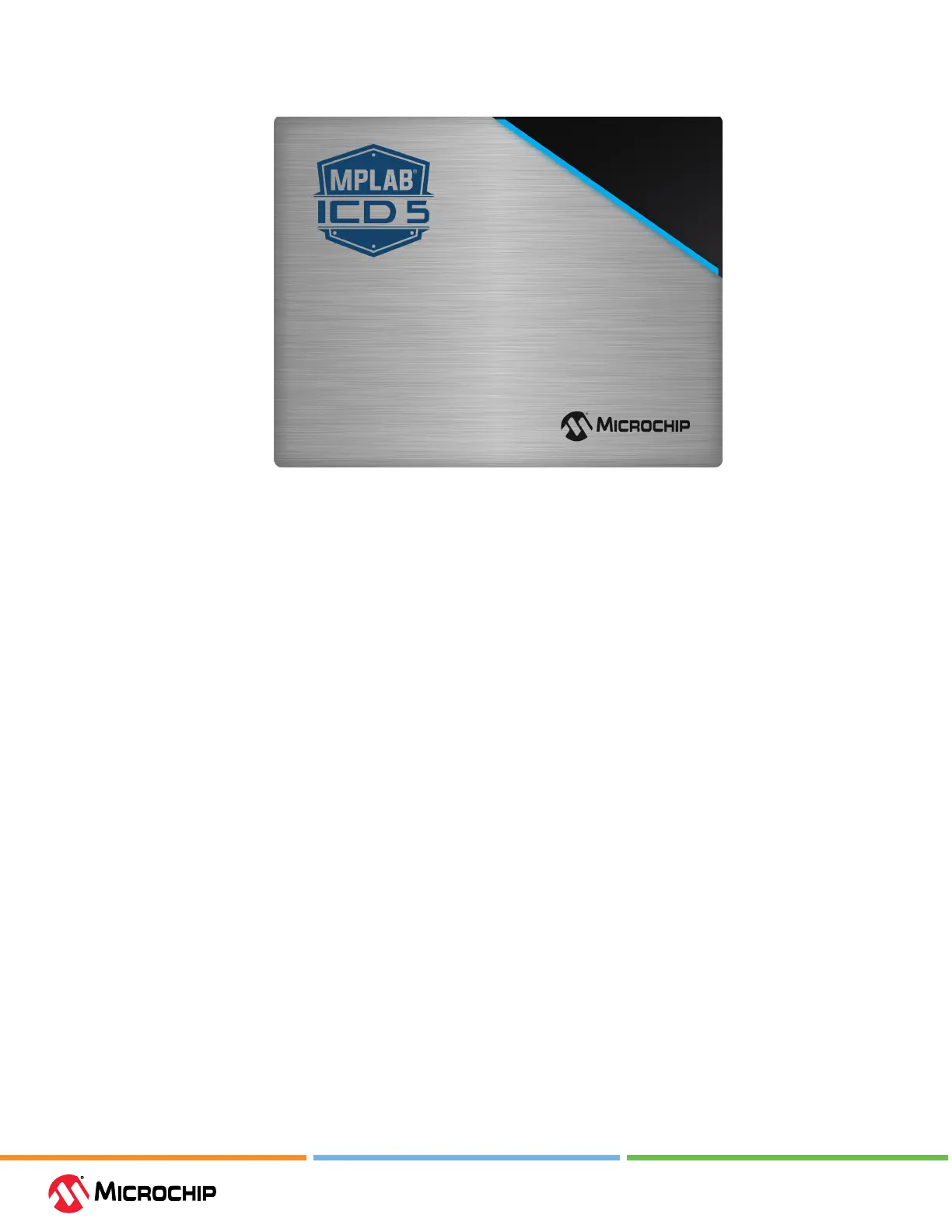

Figure 2-2. Unit Enclosure
Additional hardware and accessories may be ordered separately from the Microchip Purchasing and
Client Services website (www.microchipdirect.com).
A CAT5e/CAT6 Ethernet cable may be purchased elsewhere. Cables that do not have an anti-snag
boot t best.
Additional Power over Ethernet (PoE) power supplies that have been tried and tested with the unit
include:
Microchip PoE Injector 30W 55V Desktop
BV-Tech Gigabit PoE+ Injector 30W
TRENDnet Gigabit PoE+ Injector 30W
USB isolators that have been tried and tested with the unit include:
IF Tools USB Isolator HVC
HiFimeUSB Isolator
Topping HSO2 ISB Isolator
2.3 Block Diagram
Below is a block diagram of basic MPLAB ICD 5 unit operational capabilities.
