© Microhard Systems Inc. 93
4.0 Configuration

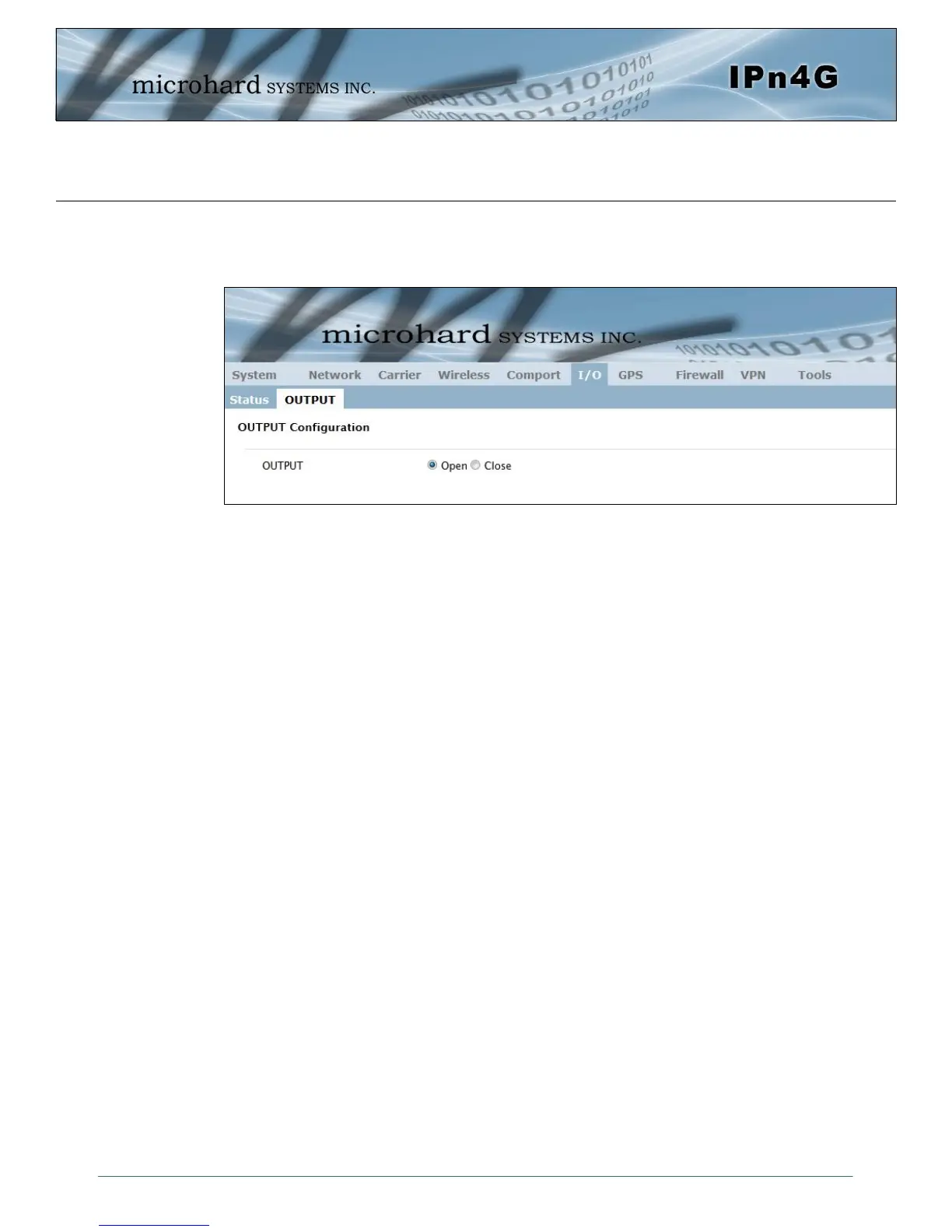

Image 4-6-2: I/O > OUTPUT
4.6.2 I/O > OUTPUT
The Output menu is used to open or close the output pin, allowing a user to remotely trigger an
The output pin on the IPn4G can be used to provide output signals, which can be used to drive
an external relay to control an external device. Maximum recommended load for the Output Pin
is 150mA @ 32 VDC (Vin)
