Appendix G Operating System Save and Restore

G-4 HAWK MV-4000 Smart Camera Guide

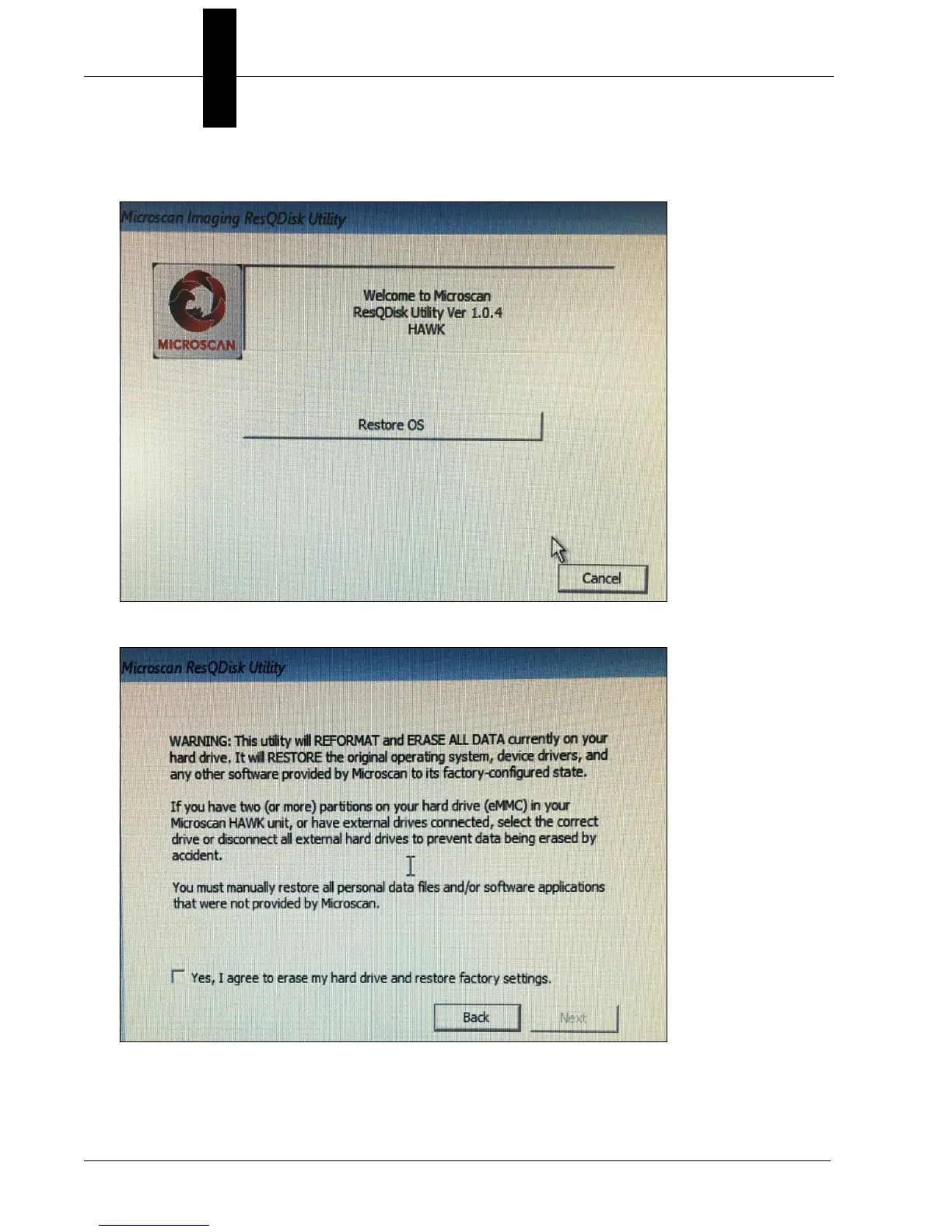

6. Click Restore OS.

7. Click Yes selection box, then Next.
