Chapter 2 System Components
2-14 HAWK MV-4000 Smart Camera Guide

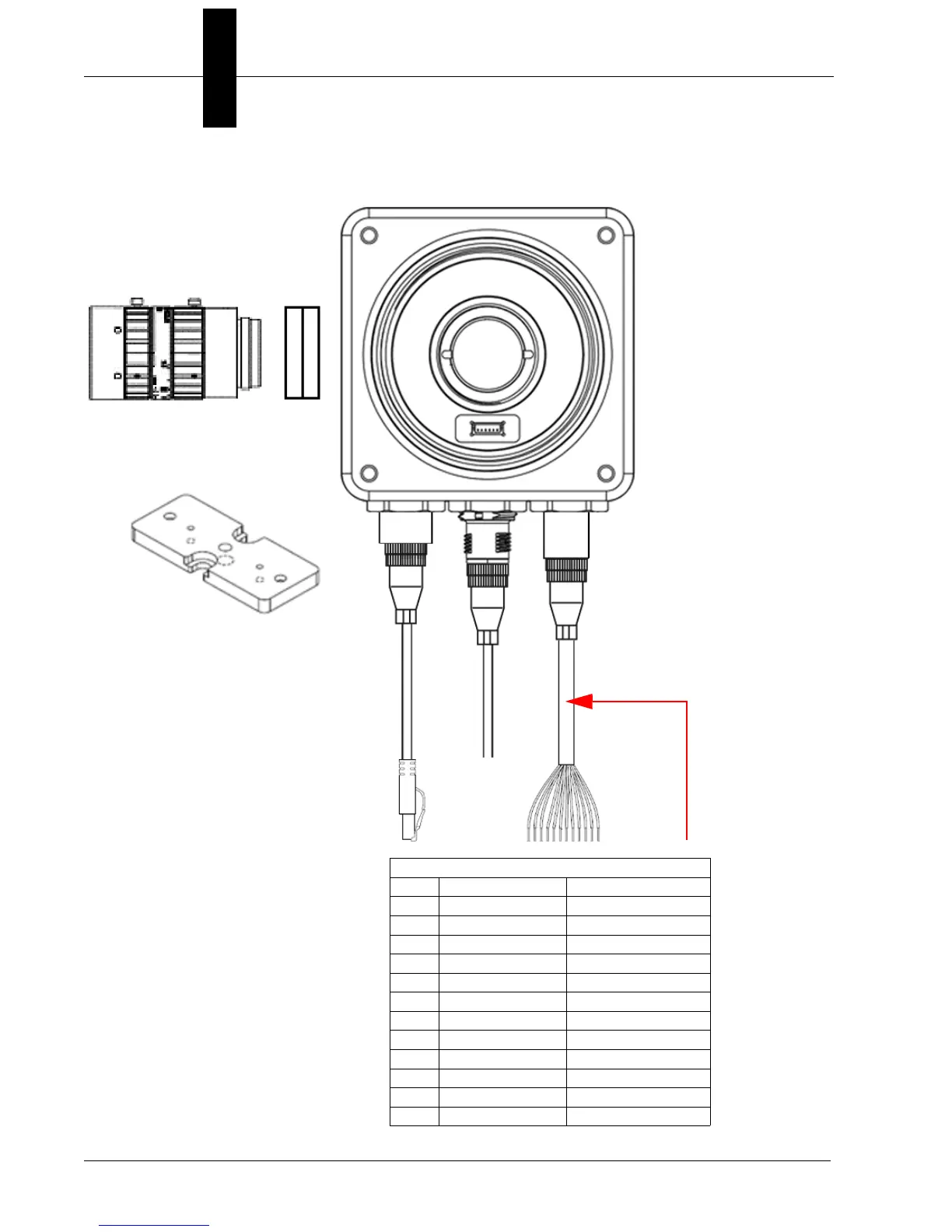

Ethernet Configuration with Flying Leads
M12 to Flying Leads Cable, 3 m – 61-9000151-01
Pin Signal Wire Color
1 Output Common Red/Blue
2 Analog Output Black
3 Output 3 Pink
4 Power Brown
5 Trigger White
6 Input Common Red
7 Input 2 Green
8 Input 3 Violet
9 Input 1 Yellow
10 Output 1 Gray
11 Ground Blue
12 Output 2 Gray / Pink
5
2
4
1
15
6
8
