Connecting to the I/O Interface

System Components

HAWK MV-4000 Smart Camera Guide 2-31

Connecting a Sourcing Output Device to an Input Signal

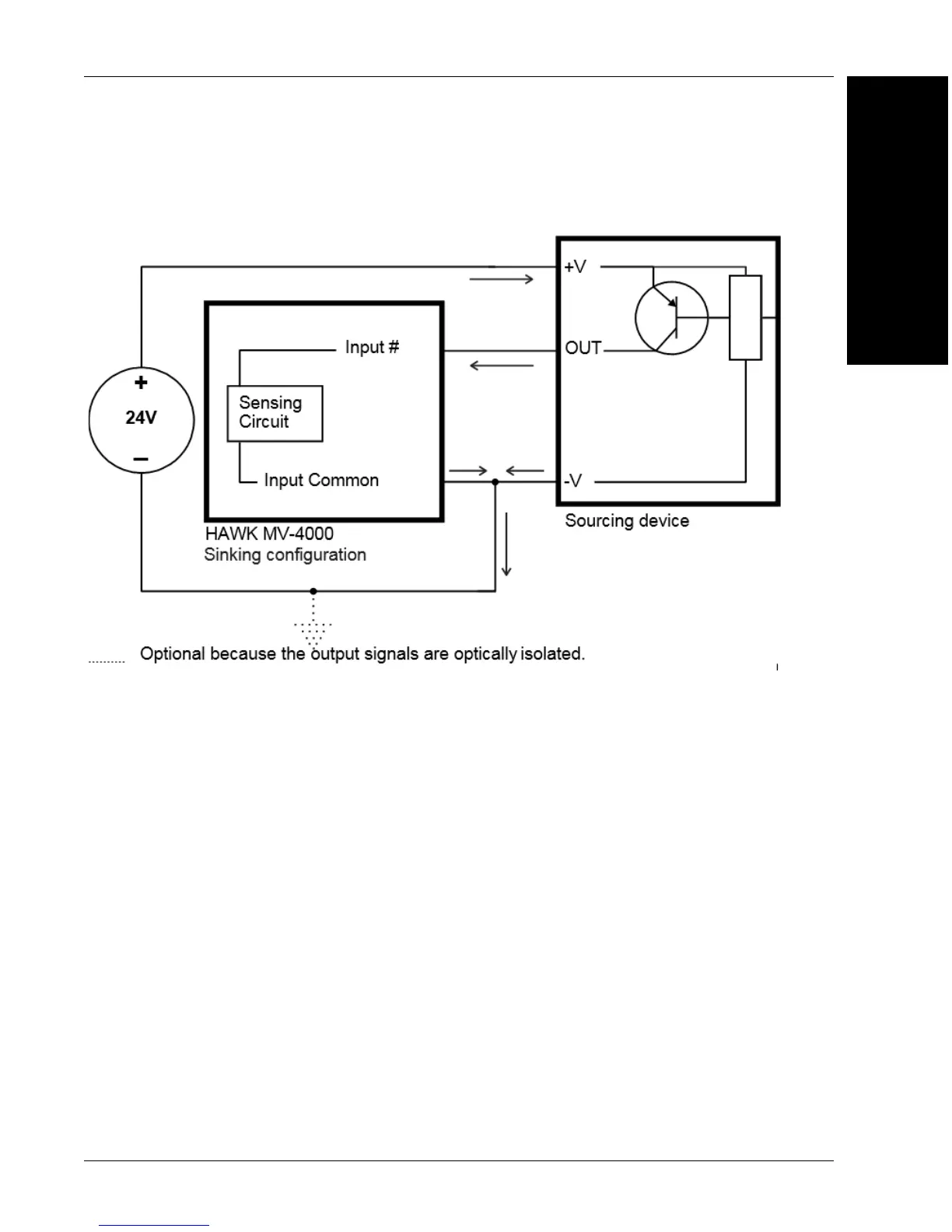

Connect a sourcing output device to HAWK MV-4000 input signal, as shown below.

(Equivalent circuit only.)
