Connecting to the I/O Interface

System Components

HAWK MV-4000 Smart Camera Guide 2-33

Connecting a 3-Wire PNP Proximity Sensor to an Input Signal

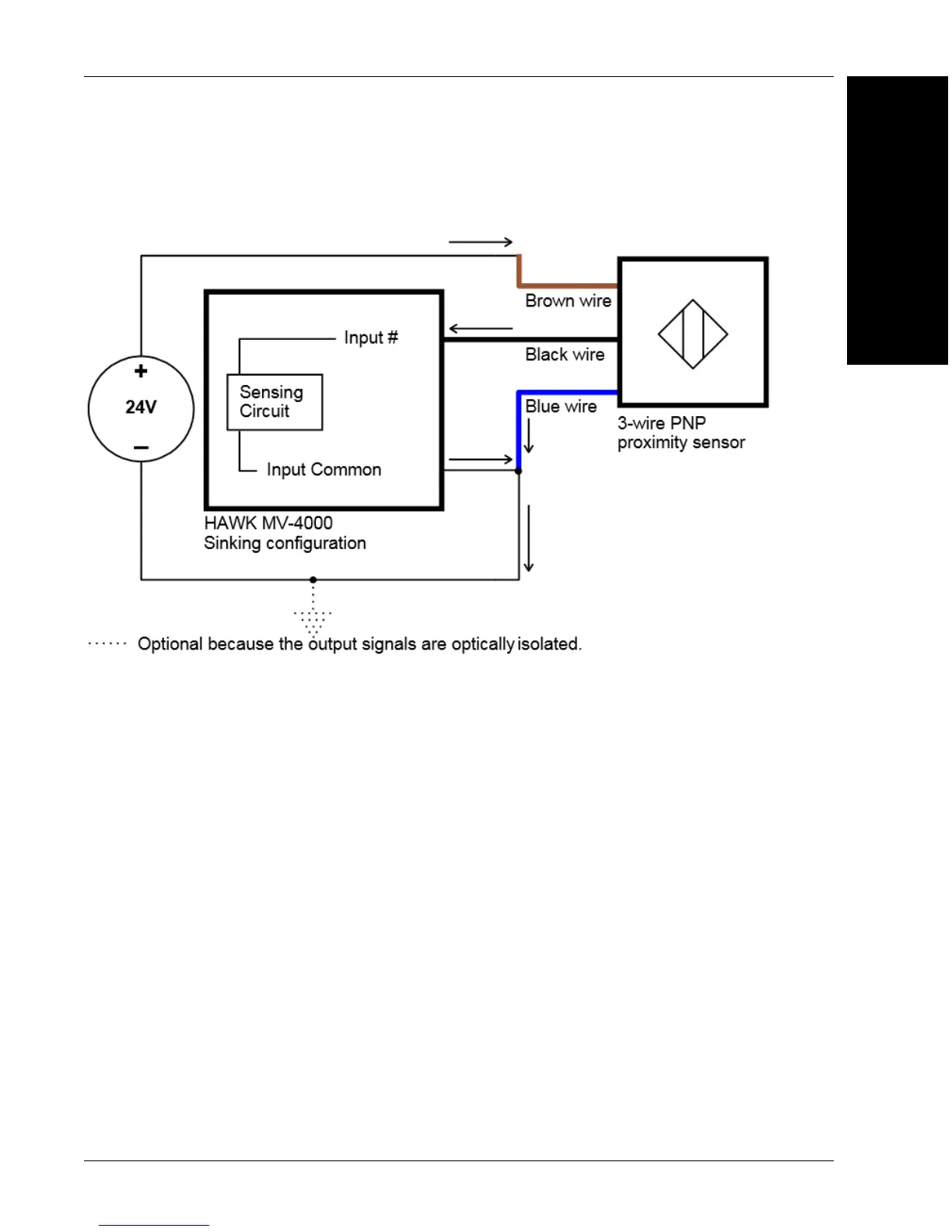

Connect a 3-wire PNP proximity sensor to a HAWK MV-4000 input signal, as shown below.

(Equivalent circuit only.)
