14

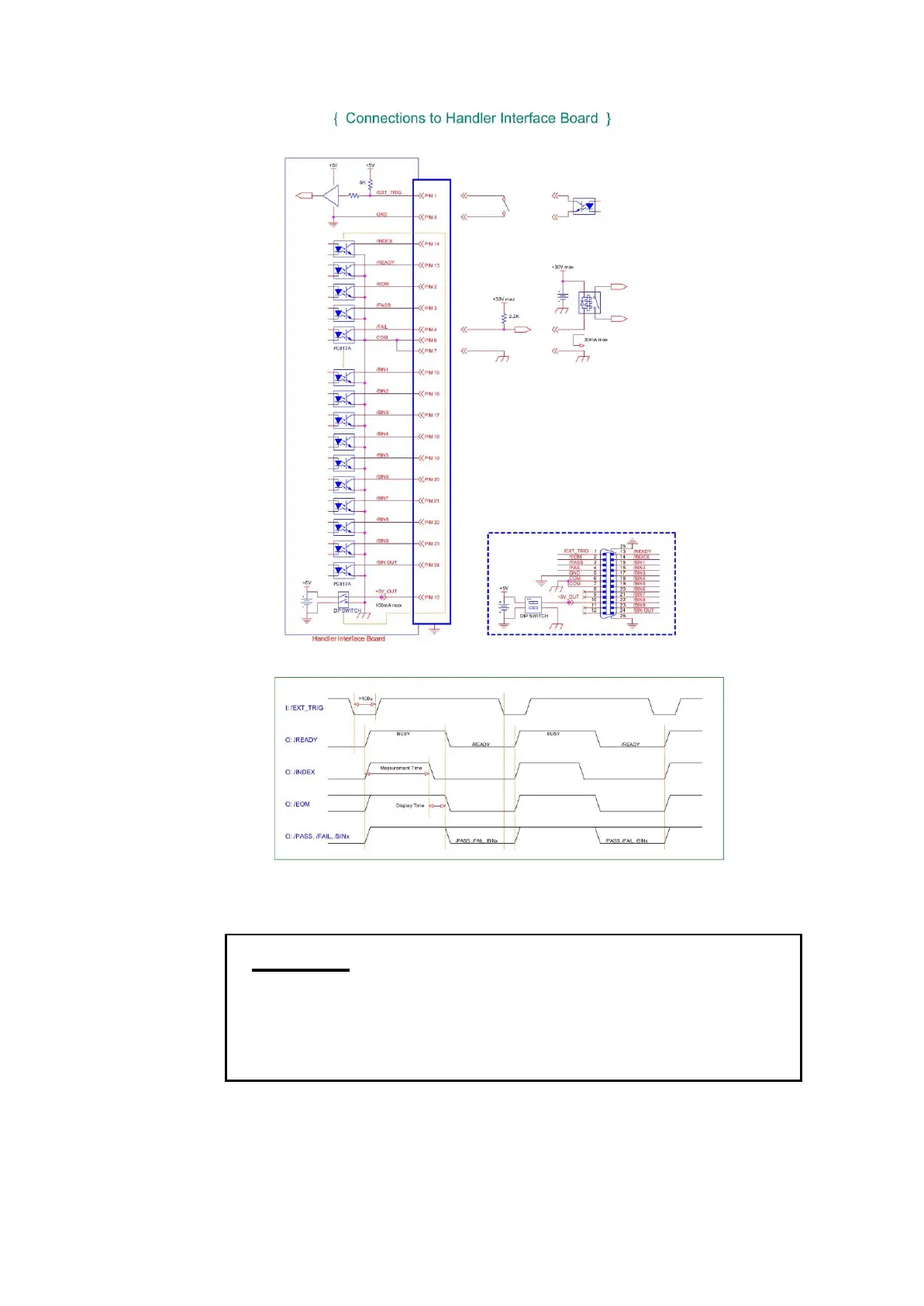

⚫ Handler I/O timing diagram：
NOTE:
1. PIN1(trigger) + PIN5(gnd) Start testing after short circuit,
the shorting time must be greater than 100uS.
2. The other output pins are photo coupler circuit, output sig-
nal is low level.The output is as a high resistance floating
circuit when it without action.
3. /EOM and /INDEX will be clean after the /TRIGGER exe-
cuted.
