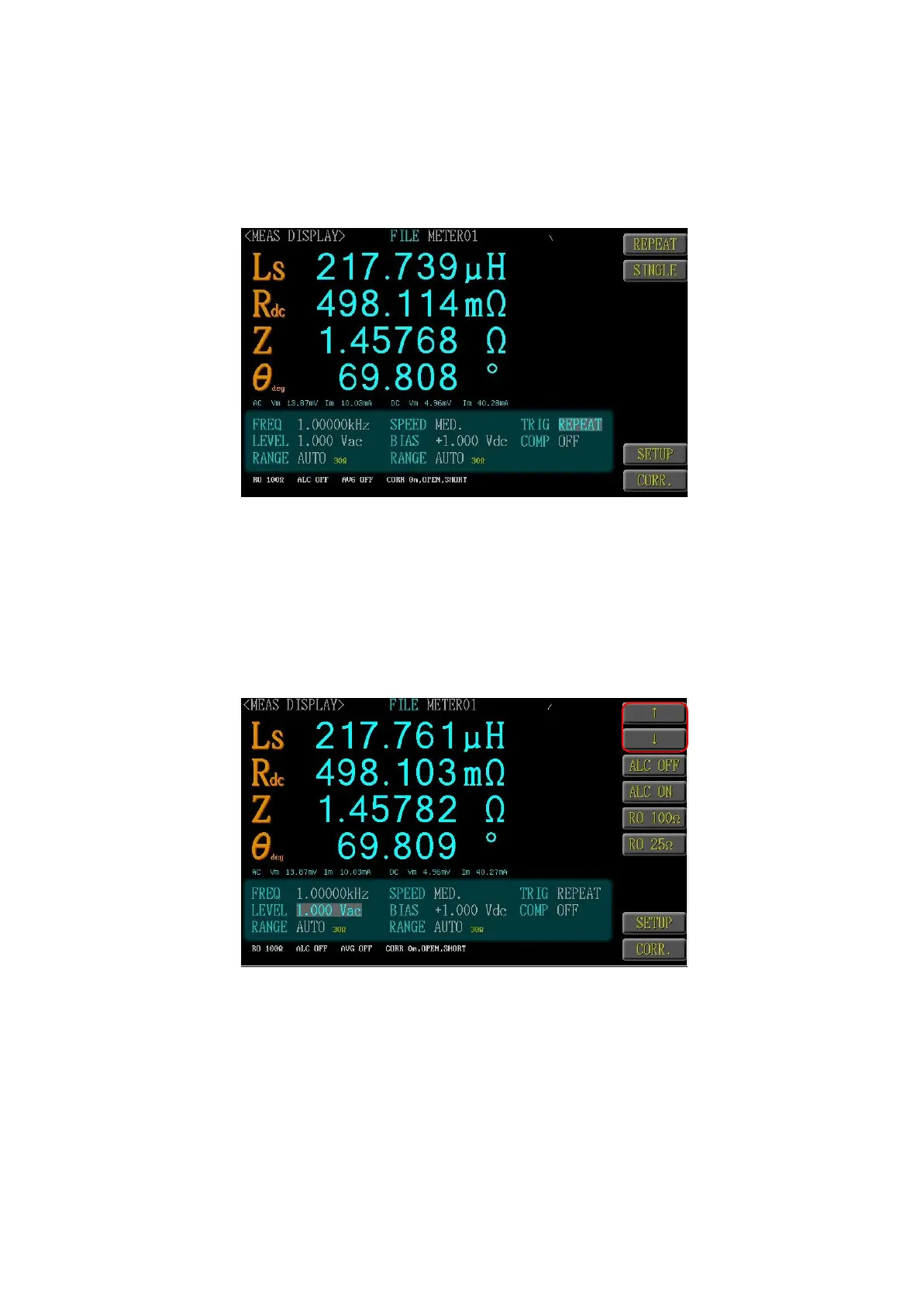

4.12 TRIGGER MODE
Under the Meter Mode page, select <TRIG> with<Direction> key.It is preset as
<REPEAT>, and the instrument will execute the measuring continuously. If se-
lecting <SINGLE> option, then it must be activated by pressing <Trigger> key.
The measuring will be repeated with each pressing of <Trigger> key.
4.13 LEVEL/RO/ALC
Under the Meter Mode page, select <LEVEL> with <Direction> key.Press Input
Digit key and then <Enter> to confirm the value or use the function key↑, ↓ to
adjust the Level value.The AC voltage range is 10mV~2Vrms, and the current
range is 100µA~20mArms.
