Microtest 6630 - Characteristics Example

88
◆ Characteristics Example

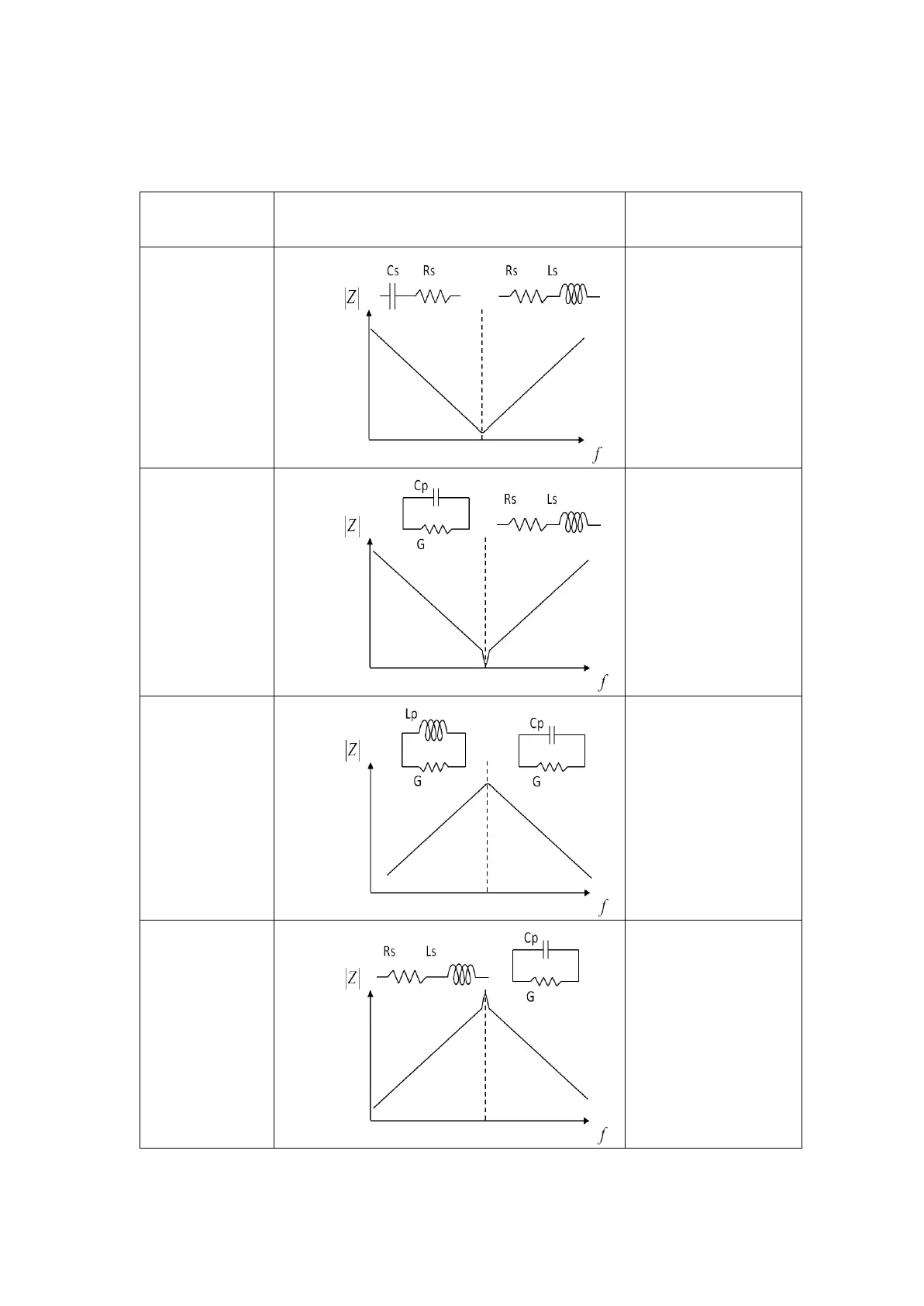

As can be seen in the following figure, a component can have different effective pa-
rameter values dependent upon its operating condition. The measured values most
useful in actual applications are obtained from precise measurement under the ac-
tual operating conditions.
Dut
Characteristics Example
Measurement
Functions
Large C
Cs-Rs
Cs-D
Cs-Q
R-X
|Z|-∠θ
Small C
Cp-G
Cp-D
Cp-Q
G-B
Y-∠θ
Large L
Lp-G
Lp-D
Lp-Q
G-B
Y-∠θ
Small L
Ls-Rs
Ls-D
Ls-Q
R-X
|Z|-∠θ
