20 PRO X

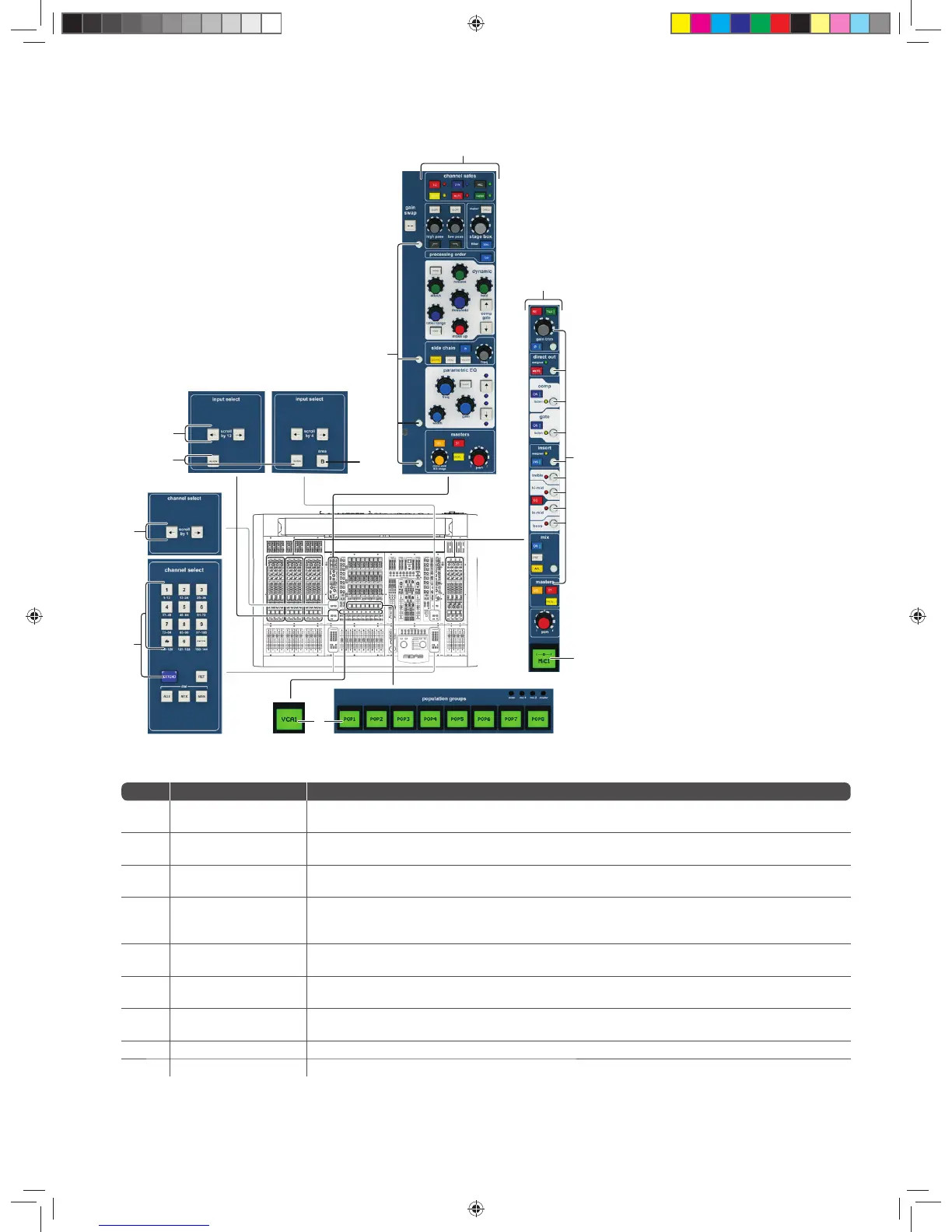

Input channel navigation controls on the PRO X.
7
9
5
6
8
1
Mix bay channel strip
Input fast
strip
3
2
4
Item Element(s) Description
1
Quick access button —
channel strip
Quickly selects the local processing area of the selected channel or channel pair, but doesn’t a ect channel selection.
Illuminates (blue) when active.
2
Quick access button — input
fast strip
Quickly selects the local input channel and assigns the local processing area to the mix bay channel strip.
Illuminates (blue) when active.
3
LCD select button — input
fast strip
Selects the local input channel. Has a backlit LCD display (with user-con gurable backlight colour), which shows channel name etc.
When selected, the display changes to a ‘negative’ image.
4
LCD select button — VCA/
POP group
Selects the VCA/POP group, unfolding the group members to the control surface. Has a backlit LCD display (with user-con gurable
backlight colour), which shows group name. When selected, the display changes to a ‘negative’ image.
This button is also used for setting up the group (see To Assign Channels to a VCA/POP Group).
5
Channel select keys and
button
The INPUT button in the channel type section is used with the number keys in the lower channel select section to select a speci c
channel number, assigning it to the control surface (see Fault Finding A Problem Channel).
6 ALIGN button
Navigates the currently selected input channel to the local input bay (see To Navigate The Selected Input Channel Back To
The Control Surface”).
7 scroll by 4 / 12 buttons
These left and right scroll buttons scroll through the input channels 12 channels at a time on the left 12-channel bay, and 4 at a time
on the right 4-channel bay
8 B button Assigns the 4-channel input bay as area B, which then operates with the master bay channel strip.
9 scroll by 1 buttons These left and right scroll buttons scroll through the channels one at a time. Channel selection follows the scrolling.
