SECTION VI
PARTS LIST
M9 / M9D
Page 6-7.1
© Midmark Corporation 2002 SF-1827 Rev. 01/11 Printed in U.S.A.

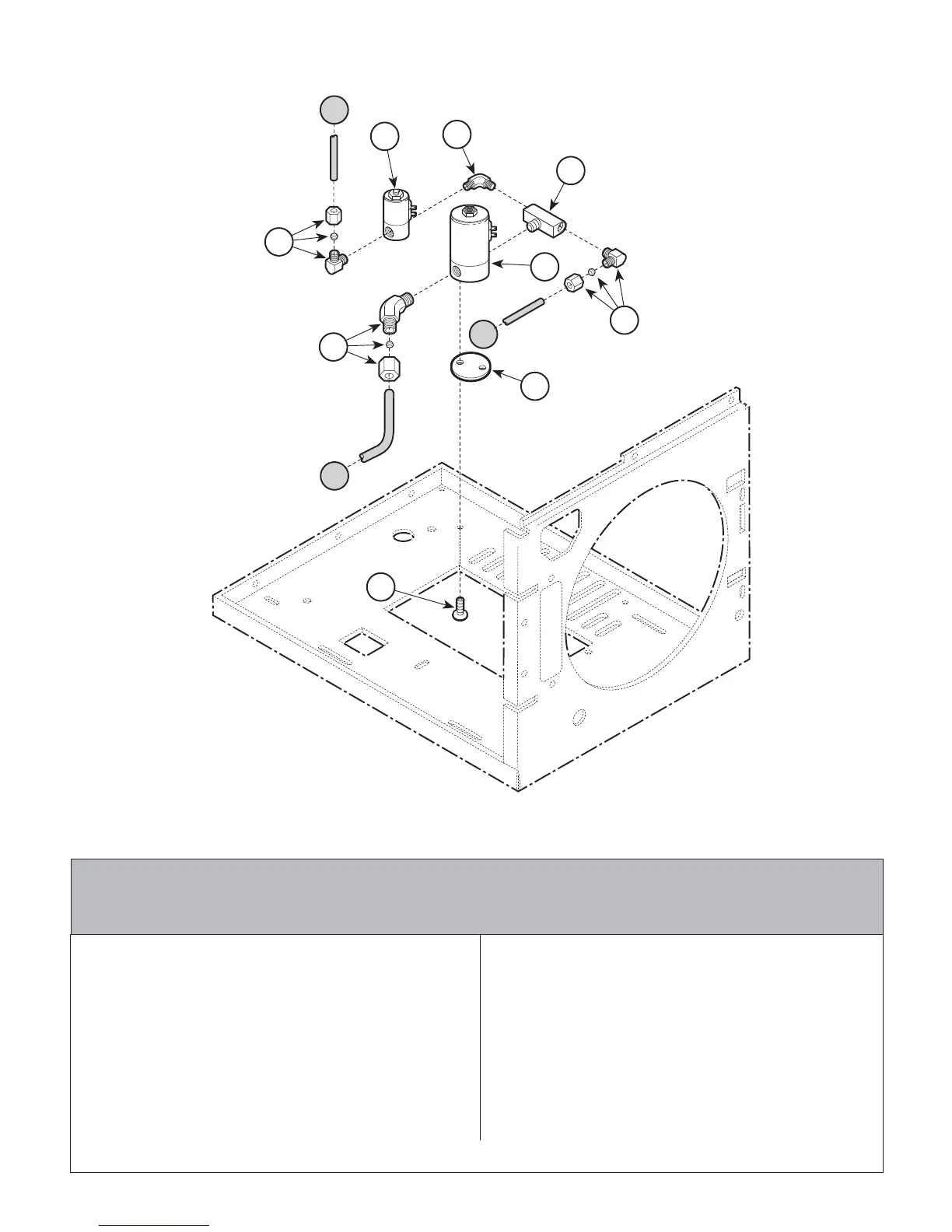

M9 Manifold Components
Always Specify Model & Serial Number
002-1428-00 Manifold Assembly (120V/60Hz)
(includes items 2 thru 8)
002-1428-01 Manifold Assembly (230V/50Hz)
(includes items 2 thru 8)
1 040-0010-74 Screw ................................................... 2
2 • 014-0184-00 Male 90° Elbow ...................................... 1
3 • 002-0366-00 Solenoid Valve {120V/60Hz} [Vent] ....... 1
• 002-0366-01 Solenoid Valve {230V/50Hz} [Vent] ....... 1
• 002-0366-02 Solenoid Valve {100V/50Hz} [Vent] ....... 1
• • 014-0235-03 • Replacement Coil (120V/60) ................ 1
• • 014-0235-04 • Replacement Plunger .......................... 1
4 • 014-0218-01 Male Elbow ............................................ 1
5 • 014-0234-00 Male Branch Tee ................................... 1
6 • 014-0184-01 Male 90° Elbow ...................................... 1
7 • 002-0365-00 Solenoid Valve (120V/60Hz) [Fill] .......... 1
• 002-0365-01 Solenoid Valve (230V/50Hz) [Fill] .......... 1
• 002-0365-02 Solenoid Valve (100V/50Hz) [Fill] .......... 1
• • 014-0236-08 • Replacement Coil (120V/60Hz) ........... 1
• • 014-0236-10 • Replacement Coil (120V/50-60 FWR).. 1
• • 014-0236-09 • Replmt. Plunger (120V/60Hz) .............. 1
• • 014-0236-11 • Replmt. Plunger (120V/50-60 FWR) .... 1
• • 002-0694-00 • Replmt. Plunger & Coil (FWR) .............. 1
8 • 014-0201-00 Male 45° Elbow ...................................... 1
9 050-2657-00 Spacer .................................................. 1
Item Part No. Description Qty.
Item Part No. Description Qty.
MA202205
A
B
C
2
6
8
7
5
4
3
9
1
NOTE
When replacing components in the sole-
noid, examine the existing valve to deter-
mine if it was Full Wave Rectified (if so, will
be marked FWR).
CZ1110 thru CZ7236 DA1000 thru DA1006 DB1000 thru DB1272 DX1000 thru DX2906
DY1000 thru DY1182 FD1000 thru FD2104 FK1000 thru FK2324 FL1000 thru FL1963
LA1000 thru LA1028 OM1000 thru OM20225
Used on units with Serial Numbers:
