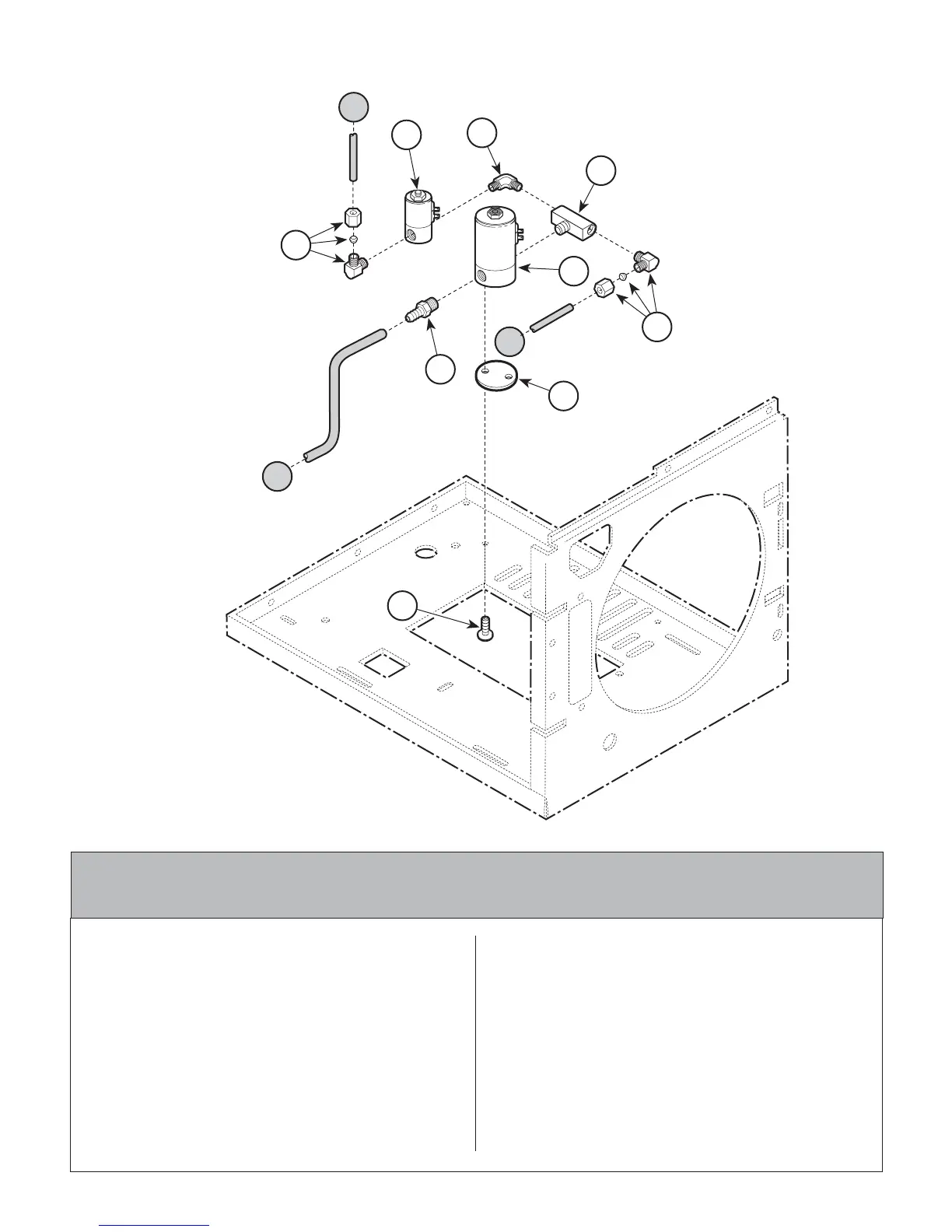

M9 Manifold Components
NOTE
When replacing components in the sole-
noid, examine the existing valve to deter-
mine if it was Full Wave Rectified (if so, will
be marked FWR).
1
A
B
C
2
6
8
7
5
4
3
9
Always Specify Model & Serial Number
029-1271-00 Manifold Assembly (120V/60Hz)
(includes items 2 thru 8)
029-1271-01 Manifold Assembly (230V/50Hz)
(includes items 2 thru 8)
1 040-0010-74 Screw ................................................... 2
2 • 014-0184-00 Male 90° Elbow ...................................... 1
3 • 002-0366-00 Solenoid Valve {120V/60Hz} [Vent] ....... 1
• 002-0366-01 Solenoid Valve {230V/50Hz} [Vent] ....... 1
• 002-0366-02 Solenoid Valve {100V/50Hz} [Vent] ....... 1
• • 014-0235-03 • Replacement Coil (120V/60) ................ 1
• • 014-0235-04 • Replacement Plunger .......................... 1
4 • 014-0218-01 Male Elbow ............................................ 1
5 • 014-0234-00 Male Branch Tee ................................... 1
6 • 014-0184-01 Male 90° Elbow ...................................... 1
7 • 002-0365-00 Solenoid Valve (120V/60Hz) [Fill] .......... 1
• 002-0365-01 Solenoid Valve (230V/50Hz) [Fill] .......... 1
• 002-0365-02 Solenoid Valve (100V/50Hz) [Fill] .......... 1
• • 014-0236-08 • Replacement Coil (120V/60Hz) ........... 1
• • 014-0236-10 • Replacement Coil (120V/50-60 FWR).. 1
• • 014-0236-09 • Replmt. Plunger (120V/60Hz) .............. 1
• • 014-0236-11 • Replmt. Plunger (120V/50-60 FWR) .... 1
• • 002-0694-00 • Replmt. Plunger & Coil (FWR) .............. 1
8 • 014-0347-00 Barb Fitting ............................................ 1
9 050-2657-00 Spacer (Used on units with flat base) .... 1
