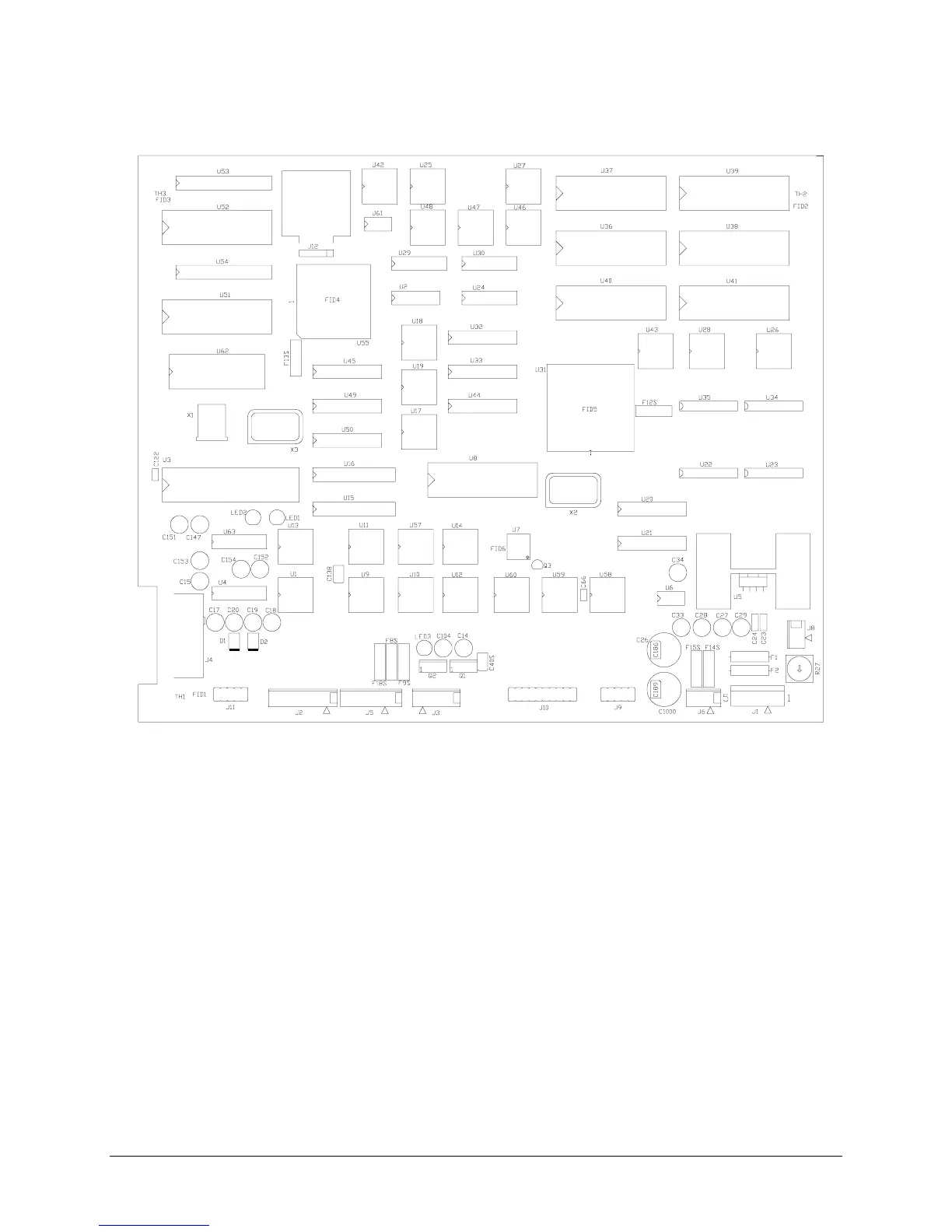

A-23380-33 CPU BOARD ASSEMBLY
Field Replaceable Parts
Designation Part Number Function Description
J12 --- (see Note 1) Security Key Custom Assembly
U8 --- (see Note 1) Sound Program EPROM Assembly
U36 --- (see Note 1 & 2) Game Program EPROM Assembly
U37 --- (see Note 1 & 2) Game Program EPROM Assembly
U38 --- (see Note 1 & 2) Game Program EPROM Assembly
U39 --- (see Note 1 & 2) Game Program EPROM Assembly
U40 --- (see Note 1 & 2) Game Program EPROM Assembly
U41 --- (see Note 1 & 2) Game Program EPROM Assembly
U51 --- (see Note 1 & 2) CPU Instructions EPROM Assembly
U52 --- (see Note 1 & 2) CPU Instructions EPROM Assembly
U62 --- (see Note 1 & 3) Memory Backup Nonvolatile SRAM with Battery
NOTES
: 1. Version specific. Contact your distributor for the latest part numbers of these components.
2. Some versions of software do not require that all sockets be filled.
3. The battery is permanently attached to the memory IC and cannot be replaced separately.
